RXT 360 (2691706-01) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton Frame Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

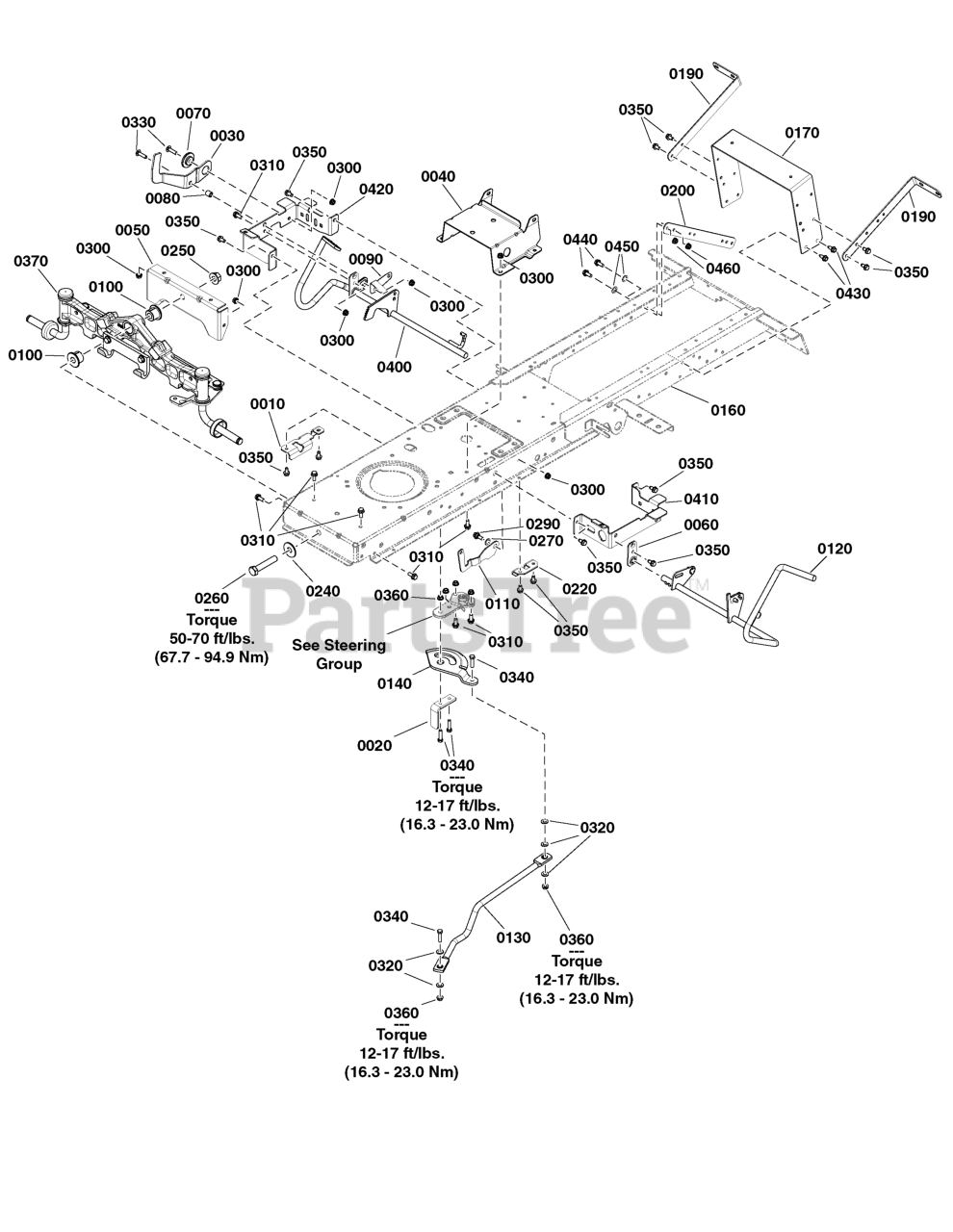

Frame Group Parts Diagram

  • Title

0010

Snapper 84004842

BRACKET, Pedal Pivot

$14.99

$

Usually ships in 2-12 days

0

0020

Snapper 84003023

UPSTOP

$11.99

$

Usually ships in 2-12 days

0

0030

Snapper 1727246SM

PEDAL, Reverse

$20.99

$

Usually ships in 2-12 days

0

0040

Snapper 1727282SM

SUPPORT, Battery

$

$

Not available

0050

Snapper 1727902SM

PLATE, Axle Support

$43.99

$

Usually ships in 2-12 days

0

0060

Snapper 1727911ASM

PLATE, Bearing

$12.99

$

Usually ships in 2-12 days

0

0070

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0080

Snapper 1728024SM

SPACER, Foot Pedal

$4.99

$

Usually ships in 2-12 days

0

0090

Snapper 1728025BMYP

ACTUATOR, RMO Switch

$6.49

$

Usually ships in 2-12 days

0

0100

Snapper 1730186SM

BUSHING, Axle Pivot

$6.99

$

In Stock, Qty 12

0

0110

Snapper 1761926CJYP

LATCH, PARKING BRAKE

$13.99

$

Usually ships in 2-12 days

0

0120

Snapper 84003024

PEDAL ASSEMBLY

$111.99

$

Usually ships in 2-12 days

0

0130

Snapper 1738051YP

LINK, Drag (with Bearing), 5/16

$60.99

$

In Stock, Qty 11

0

0140

Snapper 1751110YP

GEAR, Steering

$34.99

$

In Stock, Qty 20+

0

0160

FRAME

Note: (Not a serviceable part)

$

$

Not available

0170

Snapper 84004843

SUPPORT, Seat

$49.99

$

Usually ships in 2-12 days

0

0190

Snapper 84004844

SUPPORT, Upper Back Plate

$21.99

$

Usually ships in 2-12 days

0

0200

Snapper 84003028

SUPPORT, Lower Back Plate

$20.99

$

Usually ships in 2-12 days

0

0220

Snapper 84003029

BRACKET, Pivot

$9.49

$

Usually ships in 2-12 days

0

0240

Snapper 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

0250

Snapper 84003031

NUT, Hex Flange 5/8-11

$3.49

$

Usually ships in 2-12 days

0

0260

Snapper 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

0270

Snapper 7014296YP

WASHER, Shim

$4.49

$

In Stock, only 4 left!

0

0290

Snapper 703851

BOLT, Shoulder, 5/16-18 x 1 1/8

$5.49

$

In Stock, only 1 left!

0

0300

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0310

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 10

0

0320

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

0330

Snapper 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, Qty 5

0

0340

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 7

0

0350

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, only 3 left!

0

0360

Snapper 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0370

Refer to: Front Axle Group

$

$

Not available

0400

Snapper 84003032

PEDAL ASSEMBLY

$111.99

$

Usually ships in 2-12 days

0

0410

Snapper 1761913AYP

SUPPORT, FOOTREST

$33.99

$

Usually ships in 2-12 days

0

0420

Snapper 1759842BMYP

SUPPORT, Front Footrest, RH

$39.99

$

Usually ships in 2-12 days

0

0430

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0440

Snapper 703408

SCREW, Hex Head Cap, 5/16-18 X 7/8, GR5

$4.99

$

In Stock, Qty 13

0

0450

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0460

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0
