RXT 360 (2691706-01) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton Electrical Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

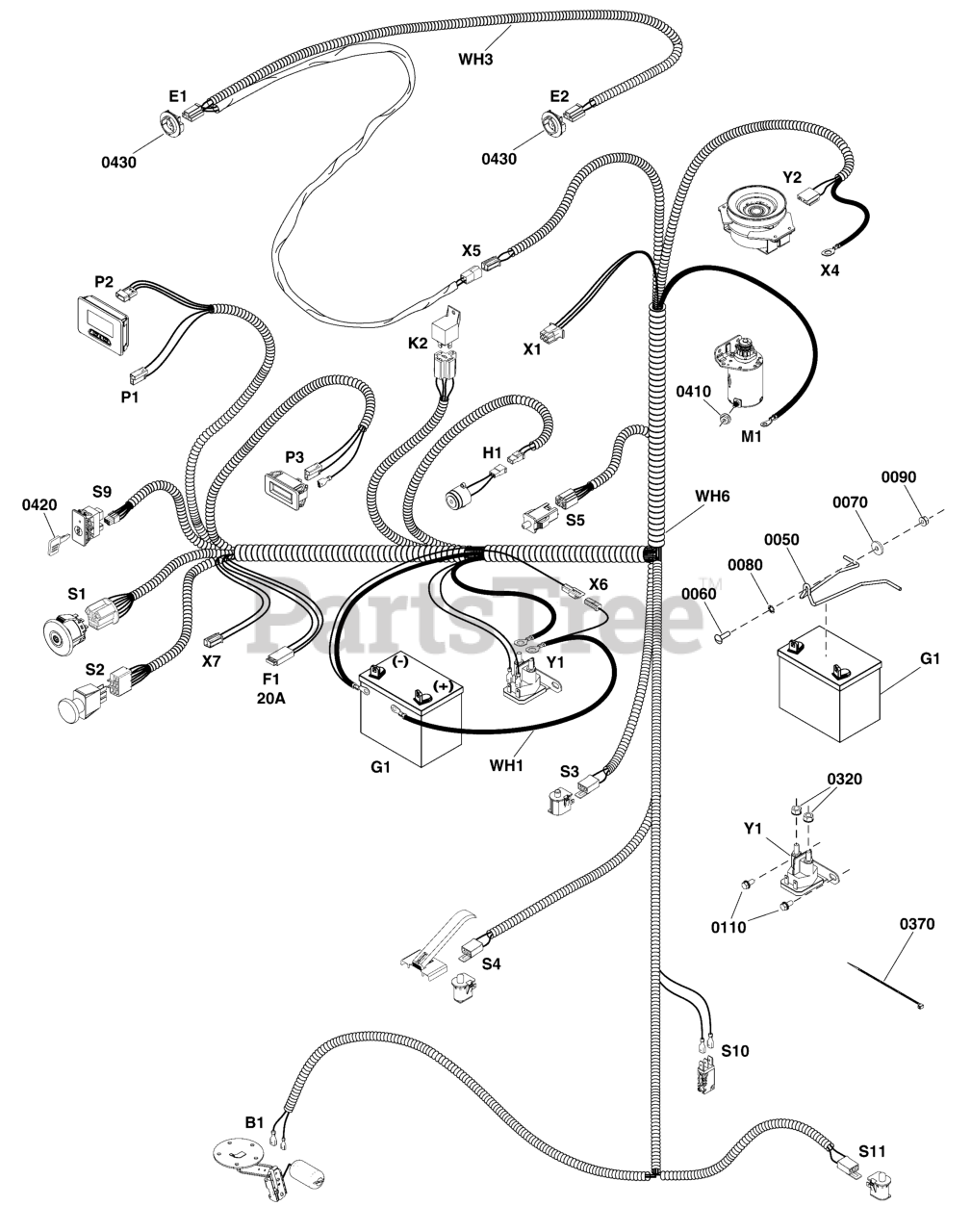

Electrical Group Parts Diagram

  • Title

B1

Snapper 1758611YP

SENDER, Fuel

$72.99

$

Usually ships in 2-12 days

0

E1

HEADLIGHT, Left

$

$

Not available

E2

HEADLIGHT, Right

$

$

Not available

F1

Snapper 1731957SM

FUSE, Wiring Harness

$8.49

$

Usually ships in 2-12 days

0

G1

BATTERY, 12 Volt, 230 CCA

$

$

Not available

H1

Snapper 1758779YP

BUZZER, Bag Full

$43.99

$

Usually ships in 2-12 days

0

K2

Snapper 1726829SM

RELAY(S)

$15.99

$

In Stock, only 1 left!

0

M1

Snapper 592599

MOTOR, Starter

$184.99

$

In Stock, only 1 left!

0

P1

CONNECTOR, Hour Meter

Note: (Not Used)

$

$

Not available

P2

Snapper 1758654YP

DISPLAY, Mini Meter

$117.99

$

Usually ships in 2-12 days

0

P3

Snapper 1758683YP

GAUGE, Fuel

$48.99

$

Usually ships in 2-12 days

0

S1

Snapper 1761507YP

SWITCH, Ignition

$31.99

$

Usually ships in 2-12 days

0

S2

Snapper 1722887YP

SWITCH, PTO Push/Pull, Yel Knob w/Symbols, 8 Terminal
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

S3

Snapper 1720411SM

SWITCH, NO, Black, Push Button W/Boot

Note: (Reverse Switch)

$14.99

$

In Stock, only 2 left!

0

S4

Snapper 1738015YP

SWITCH, Seat

Note: (Used With Mesh Seat)

$43.99

$

Usually ships in 2-12 days

0

S4

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

S5

Snapper 7022886YP

SWITCH, DP, NO/NC, Snap-In

Note: (Brake Pedal Switch)

$14.99

$

In Stock, Qty 20+

0

S9

Snapper 1761897YP

SWITCH, Reverse Mow Option

$30.99

$

Usually ships in 2-12 days

0

S10

Snapper 84003064

SWITCH, Bag Full

$53.99

$

Usually ships in 2-12 days

0

S11

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

WH1

Snapper 1759779YP

HARNESS, Battery, Solenoid

$11.99

$

Usually ships in 2-12 days

0

WH3

Snapper 1761298YP

HARNESS, Headlight

$24.99

$

Usually ships in 2-12 days

0

WH6

Snapper 84002998

HARNESS, Main

$205.99

$

Usually ships in 2-12 days

0

X1

CONNECTOR, Engine

$

$

Not available

X4

CHASSIS GROUND POINT

$

$

Not available

X5

CONNECTOR, Main Harness to Headlight Harness

$

$

Not available

X6

CONNECTOR, Battery Solenoid Harness to Main Harness

$

$

Not available

X7

CONNECTOR, Main Harness to Height of Cut Harness

Note: (Not Used)

$

$

Not available

Y1

Snapper 1755381YP

SOLENOID

Note: (Starter Solenoid)

$24.99

$

In Stock, Qty 20+

0

Y2

Snapper 1760986YP

OGURA CLUTCH

Note: (PTO Clutch)

$323.99

$

Usually ships in 2-12 days

0

0050

Snapper 1730007SM

HOLD DOWN, Battery, 1/4 Dia.

$27.99

$

Usually ships in 2-12 days

0

0060

Snapper 1931318SM

BOLT, Carriage, Short Neck, 1/4-20 x 7/8 G5

$4.49

$

In Stock, only 2 left!

0

0070

Snapper 703229

WASHER, 1/4 x 27/32

$4.49

$

In Stock, Qty 8

0

0080

Snapper 703826

NUT, Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0110

Snapper 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 7

0

0320

Snapper 2860750SM

NUT, Hex Lock, KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0370

Snapper 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0410

Snapper 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, Qty 13

0

0420

Snapper 1726557SM

KEY, No Mow Module (Yellow)

$5.49

$

In Stock, Qty 20+

0

0430

Snapper 1760239YP

LED HEADLIGHT AND SOCKET ASSEMBLY

$30.99

$

Usually ships in 2-12 days

0
