RXT 360 (2691706-01) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton 42" (107cm) Mower Deck - Support Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

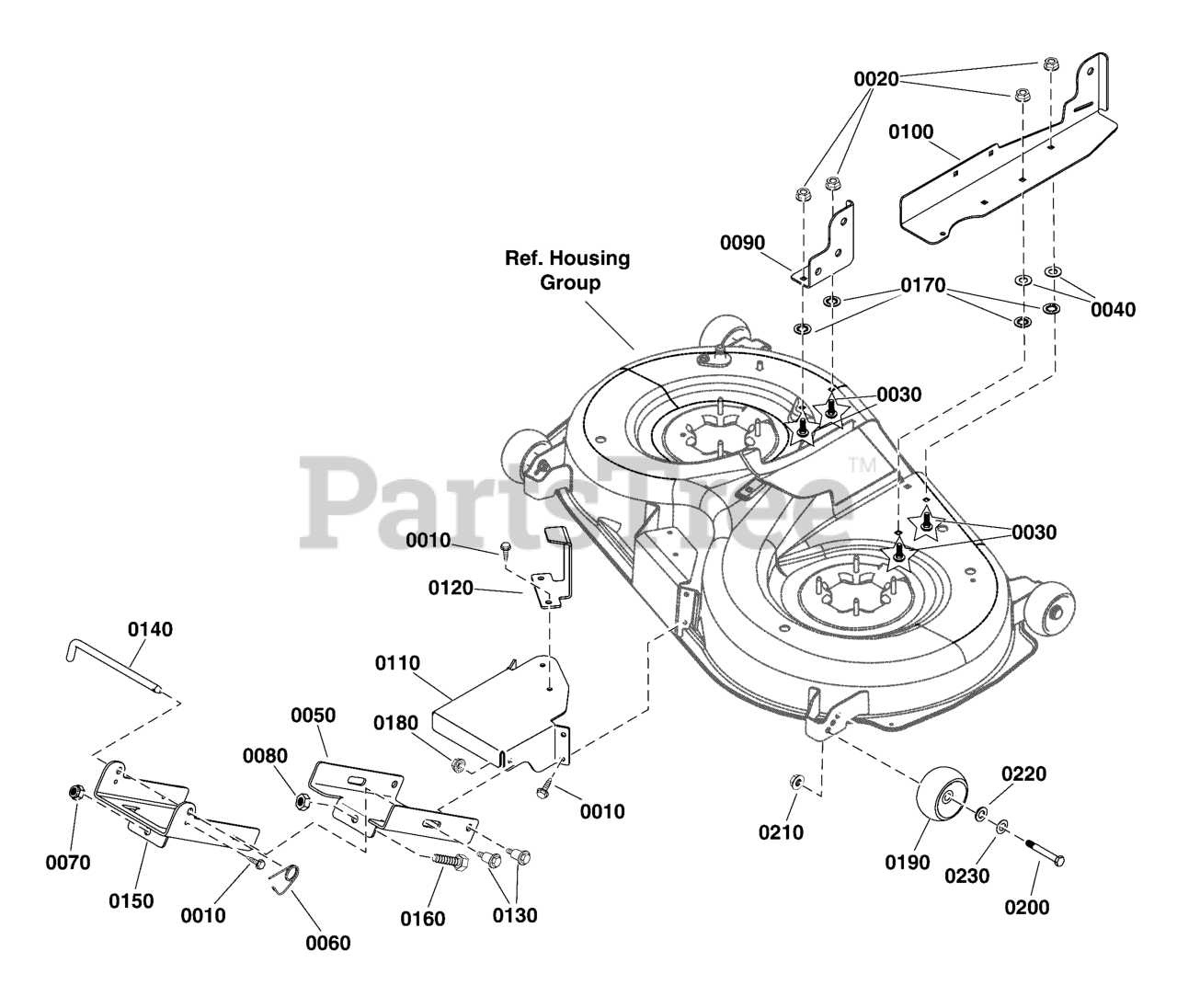

42" (107cm) Mower Deck - Support Group Parts Diagram

  • Title

0010

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0030

Snapper 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 12

0

0040

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0050

Snapper 885734BMYP

BRACKET, Front Connector

$53.99

$

Usually ships in 2-12 days

0

0060

Snapper 703852

PIN, Retainer, 5/16 x 3/8

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

0080

Snapper 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 20+

0

0090

Snapper 885720BMYP

BRACKET, Deck, Rear, RH

$18.99

$

Usually ships in 2-12 days

0

0090

Snapper 84003054

BRACKET, Deck, Rear

$18.99

$

Usually ships in 2-12 days

0

0100

Snapper 84003053

BRACKET, Deck, Rear Lift

$74.99

$

Usually ships in 2-12 days

0

0110

Snapper 885727BMYP

SUPPORT, Front

$82.99

$

Usually ships in 2-12 days

0

0120

Snapper 84003051

UPSTOP

$18.99

$

Usually ships in 2-12 days

0

0130

Snapper 1732426SM

BOLT, Shoulder, 5/16-18

$4.49

$

In Stock, only 1 left!

0

0140

Snapper 1731414SM

ROD, Latch, 9"

$14.99

$

Usually ships in 2-12 days

0

0150

Snapper 885699BMYP

BRACKET, Front Hanger

$82.99

$

In Stock, only 1 left!

0

0160

Snapper 885710YP

BOLT, 1/2 x 3

$5.49

$

Usually ships in 2-12 days

0

0170

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0190

Snapper 1714760SM

GAUGE WHEEL

$6.49

$

In Stock, Qty 20+

0

0200

Snapper 2108765SM

BOLT, Wheel, 3/8-16 X 2.781

$6.49

$

In Stock, Qty 20+

0

0210

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0220

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0230

Snapper 720035

WASHER, Spring, .30" ID
(Superseded to 0020X3MA)

$4.49

$

Usually ships in 2-12 days

0
