RXT 360 (2691706-01) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton 42" (107cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

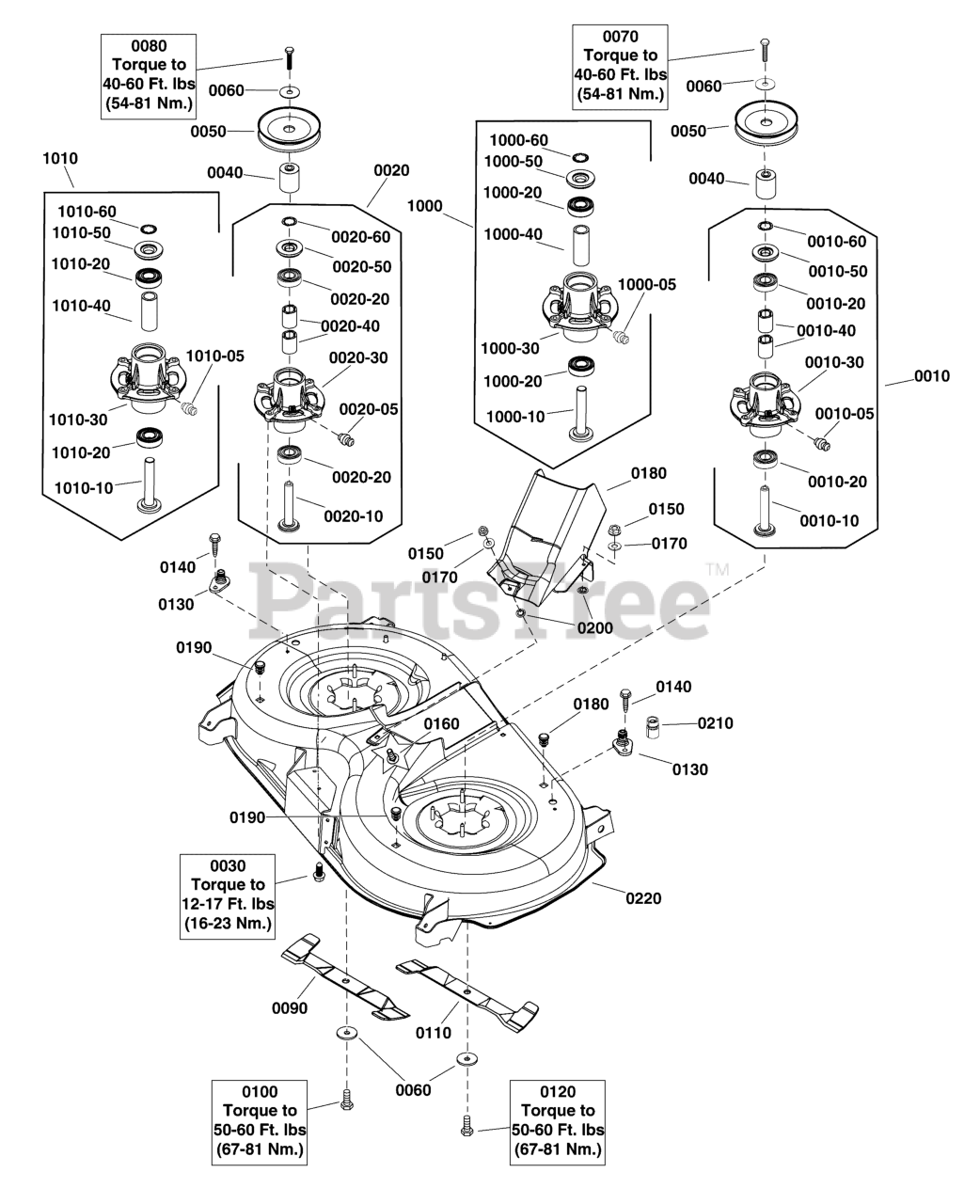

42" (107cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Snapper 1761015

ARBOR ASSEMBLY

Note: (Replaced by Ref. Nos. 1000, this arbor assembly is an exact replacement)

$

$

Currently unavailable

0010-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0010-10

Snapper 1760276YP

SHAFT, Spindle

Note: (Replaced by Ref. Nos. 1000-30, this spindle shaft is an exact replacement)

$27.99

$

In Stock, only 4 left!

0

0010-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0010-30

Snapper 1735573YP

HOUSING, w/Lube Fittting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 9

0

0010-40

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1000-50, this spacer is an exact replacement)

$6.49

$

In Stock, only 3 left!

0

0010-50

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 8

0

0010-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

1000

Snapper 84003175

ARBOR ASSEMBLY

$100.99

$

In Stock, only 1 left!

0

1000-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1000-10

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 9

0

1000-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1000-30

Snapper 84003170

SHAFT, Spindle

$29.99

$

In Stock, only 2 left!

0

1000-40

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, Qty 8

0

1000-50

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1000-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 84003043

ARBOR ASSEMBLY, RH
(Superseded to 84003176)

Note: (Replaced by Ref. Nos. 1010, this arbor assembly is an exact replacement)

$59.99

$

Usually ships in 2-12 days

0

0020-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0020-10

Snapper 84003044

SHAFT, Spindle

Note: (Replaced by Ref. Nos. 1010-30, this spindle shaft is an exact replacement)

$20.99

$

Usually ships in 2-12 days

0

0020-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0020-30

Snapper 1735573YP

HOUSING, w/Lube Fittting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 9

0

0020-40

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1010-50, this spacer is an exact replacement)

$6.49

$

In Stock, only 3 left!

0

0020-50

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 8

0

0020-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

1010

Snapper 84003176

ARBOR ASSEMBLY, RH

$59.99

$

Usually ships in 2-12 days

0

1010-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1010-10

Snapper 84003171

SHAFT, Spindle

$40.99

$

Usually ships in 2-12 days

0

1010-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1010-30

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 9

0

1010-40

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1010-50

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, Qty 8

0

1010-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 704318

SCREW, Hex Washer Self-Tap, 5/16-18 x 1-1/2

$4.49

$

In Stock, only 1 left!

0

0040

Snapper 1750338YP

SPACER, Mower Drive

$16.99

$

Usually ships in 2-12 days

0

0050

Snapper 1758750YP

PULLEY

$25.99

$

Usually ships in 2-12 days

0

0060

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0070

Snapper 1926110SM

CAPSCREW, Hex Head, 7/16-14 x 2-3/4, GR5

$6.49

$

Usually ships in 2-12 days

0

0080

Snapper 703846

CAPSCREW, Socket Head, 7/16-14 x 2-3/4, LH

$8.99

$

Usually ships in 2-12 days

0

0090

Snapper 1758513BMYP

BLADE, RH

$44.99

$

Usually ships in 2-12 days

0

0100

Snapper 703845

CAPSCREW, Socket Head, 7/16-14 x 1, LH

$10.99

$

In Stock, only 2 left!

0

0110

Snapper 1758514BMYP

BLADE, LH

$44.99

$

Usually ships in 2-12 days

0

0120

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0130

Snapper 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0140

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0160

Snapper 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0

0170

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0180

Snapper 885719YP

CENTER CAP

$182.99

$

Usually ships in 2-12 days

0

0190

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0200

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0210

Snapper 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0

0220

Snapper 885827BMYP

KIT, Mower Deck 107cm, Crow Black

$476.99

$

Usually ships in 2-12 days

0
