RXT 360 (2691510-00) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton Transmission Group - Tuff Torq K46EC Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

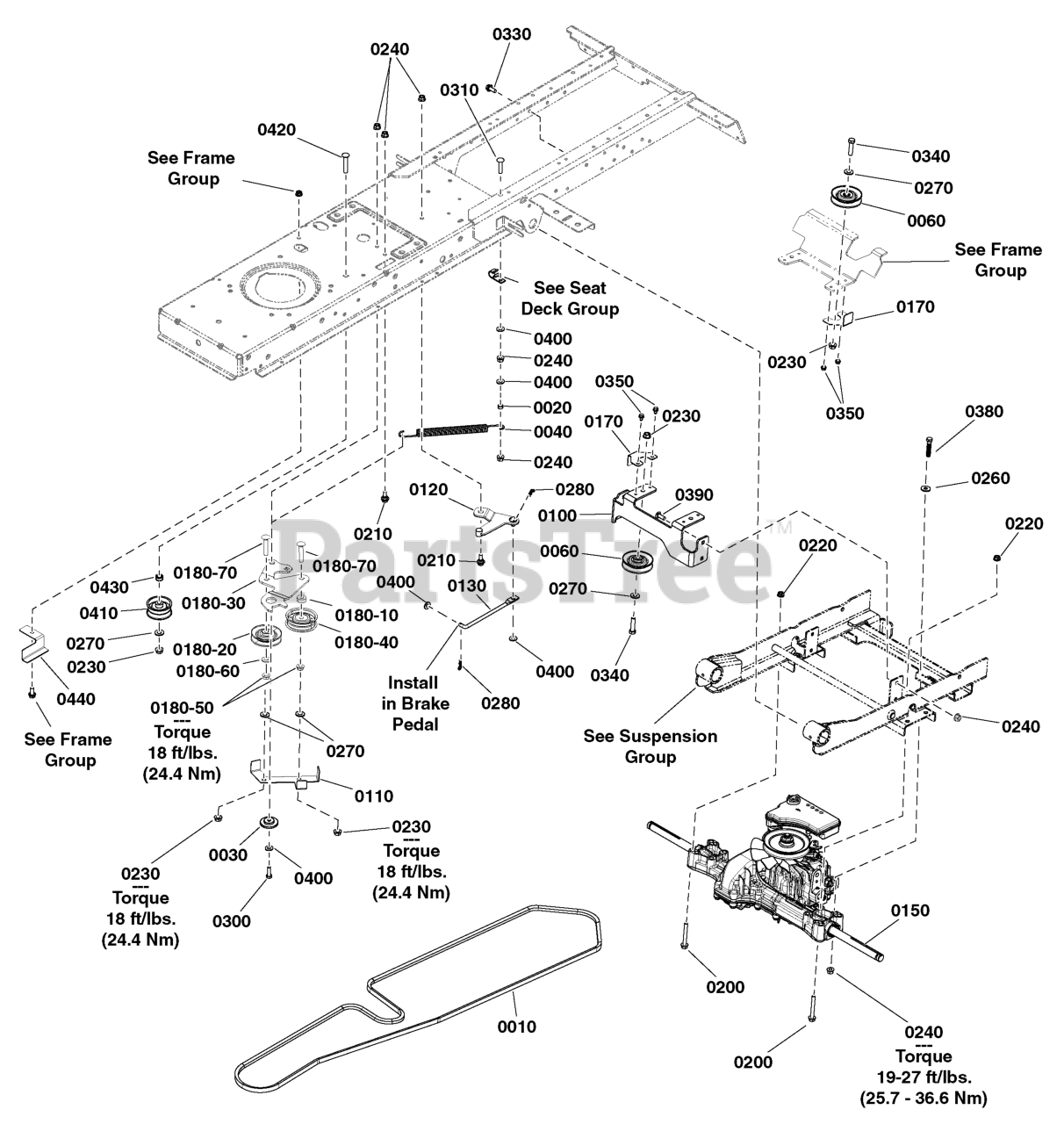

Transmission Group - Tuff Torq K46EC Parts Diagram

  • Title

0010

Snapper 84001118

BELT, RDLT, 115.1

$76.99

$

Usually ships in 2-12 days

0

0020

Snapper 5102463YP

SPACER, .33 X .50 X .25, PM, CZ

$5.49

$

Usually ships in 2-12 days

0

0030

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 3 left!

0

0040

Snapper 84002611

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

0060

Snapper 1760012YP

PULLEY, Idler

$33.99

$

Usually ships in 2-12 days

0

0100

Snapper 84002636

BRACKET, Transmission Pulley

$51.99

$

Usually ships in 2-12 days

0

0110

Snapper 84002637

BRACKET, Belt Guide

$21.99

$

Usually ships in 2-12 days

0

0120

Snapper 84002638

CLUTCH PIVOT ASSEMBLY

$43.99

$

Usually ships in 2-12 days

0

0130

Snapper 84002639

CLUTCH ROD

$10.99

$

Usually ships in 2-12 days

0

0150

Snapper 84002640

TRANSMISSION, Tuff Torq K46EC

$945.99

$

Usually ships in 2-12 days

0

0170

Snapper 84002645

BELT GUIDE

$5.49

$

Usually ships in 2-12 days

0

0180-10

Snapper 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

0180-20

Snapper 1760012YP

PULLEY, Idler

$33.99

$

Usually ships in 2-12 days

0

0180-30

Snapper 84003365

BRACKET, Idler

$23.99

$

Usually ships in 2-12 days

0

0180-40

Snapper 2154534SM

PULLEY ASSEMBLY IDLER

$32.99

$

In Stock, only 2 left!

0

0180-50

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

0180-60

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0180-70

Snapper 1960315SM

CARRIAGE BOLT, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

0200

Snapper 1960586SM

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

0210

Snapper 703851

BOLT, Shoulder, 5/16-18 x 1 1/8

$5.49

$

In Stock, only 1 left!

0

0220

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0230

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

0240

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 703118

WASHER, Flat, 7/8, GR5

$3.49

$

In Stock, Qty 11

0

0270

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 703430

PIN, 13X1.19

$3.49

$

In Stock, only 2 left!

0

0300

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 1 left!

0

0310

Snapper 703296

BOLT, Carriage, 5/16-18 x 1 1/2

$4.49

$

In Stock, only 3 left!

0

0330

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

0340

Snapper 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 1 left!

0

0350

Snapper 703583

SCREW, Taptite, 1/4 - 20 x 3/8

$4.99

$

In Stock, Qty 20+

0

0380

Snapper 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0390

Snapper 704065

BOLT, Carriage, Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0

0400

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0410

Snapper 1668477SM

PULLEY, Idler, 2.25" OD, .378 ID

$23.99

$

In Stock, Qty 20+

0

0420

Snapper 1960315SM

CARRIAGE BOLT, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

0430

Snapper 84003454

SPACER

Note: ( .39 X 1.00 X .3125 )

$

$

Currently unavailable

0440

Snapper 84002648

GUIDE, Belt, Black

$11.99

$

Usually ships in 2-12 days

0
