RXT 360 (2691510-00) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton Seat Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

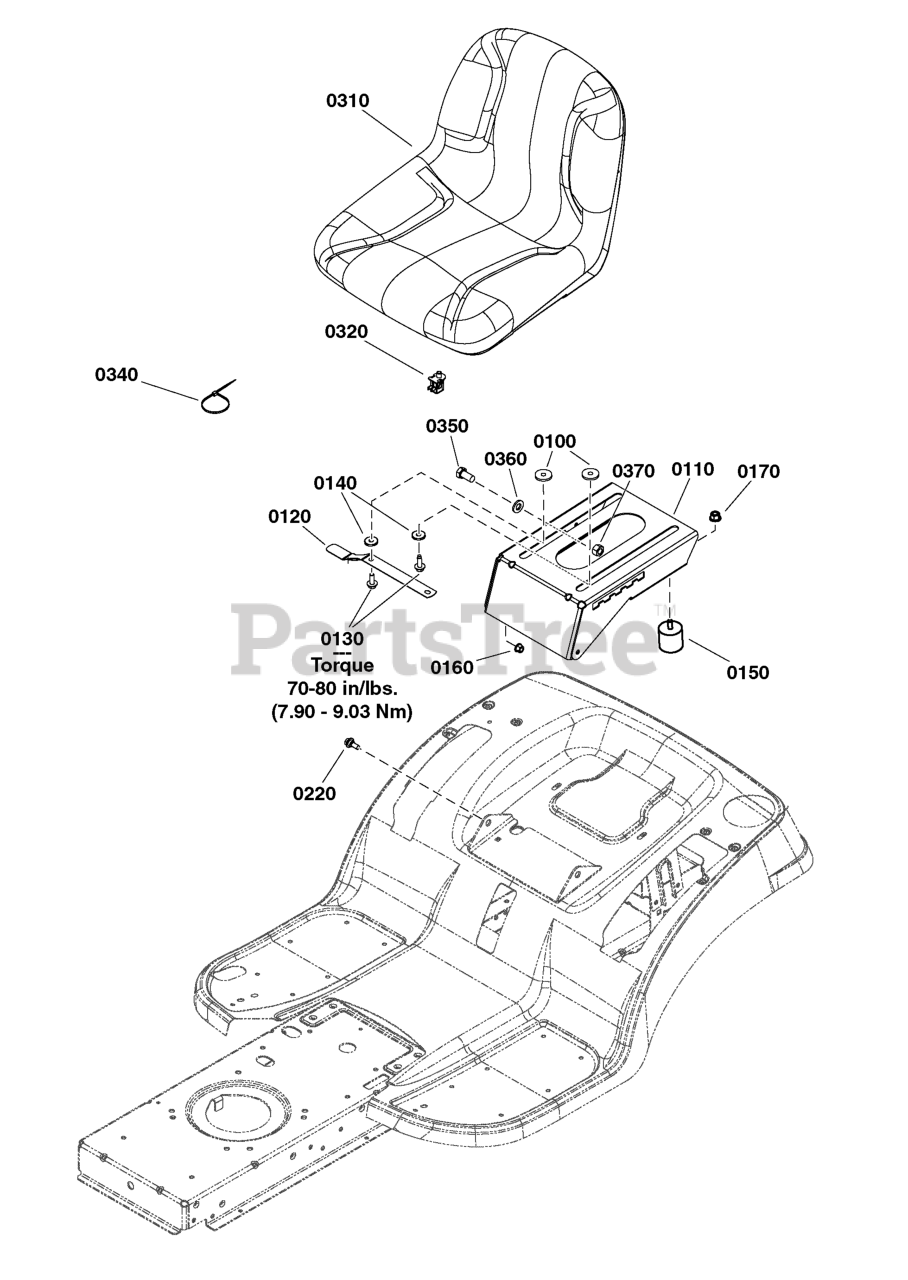

Seat Group Parts Diagram

  • Title

0100

Snapper 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16"

$5.49

$

Usually ships in 2-12 days

0

0110

Snapper 1755767BMYP

SUPPORT, Seat

$152.99

$

Usually ships in 2-12 days

0

0120

Snapper 1727268BMYP

LATCH, Seat

$9.49

$

Usually ships in 2-12 days

0

0130

Snapper 1930595SM

CAPSCREW, Hex Head Flange Lock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

0140

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, only 2 left!

0

0150

Snapper 5022612SM

BUMPER, Rubber, 5/16-18

$23.99

$

In Stock, only 2 left!

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0220

Snapper 703851

BOLT, Shoulder, 5/16-18 x 1 1/8

$5.49

$

In Stock, only 1 left!

0

0310

Snapper 1759179YP

SEAT, With Armrest

$535.99

$

Usually ships in 2-12 days

0

0320

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

0340

Snapper 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 1923114SM

CAPSCREW, Hex Head 1/2-13 x 1, Black

$3.99

$

In Stock, only 2 left!

0

0360

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0370

Snapper 703340

NUT, Hex, 1/2-13, GR5

$7.99

$

In Stock, only 1 left!

0
