RXT 360 (2691510-00) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton EU Guard Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

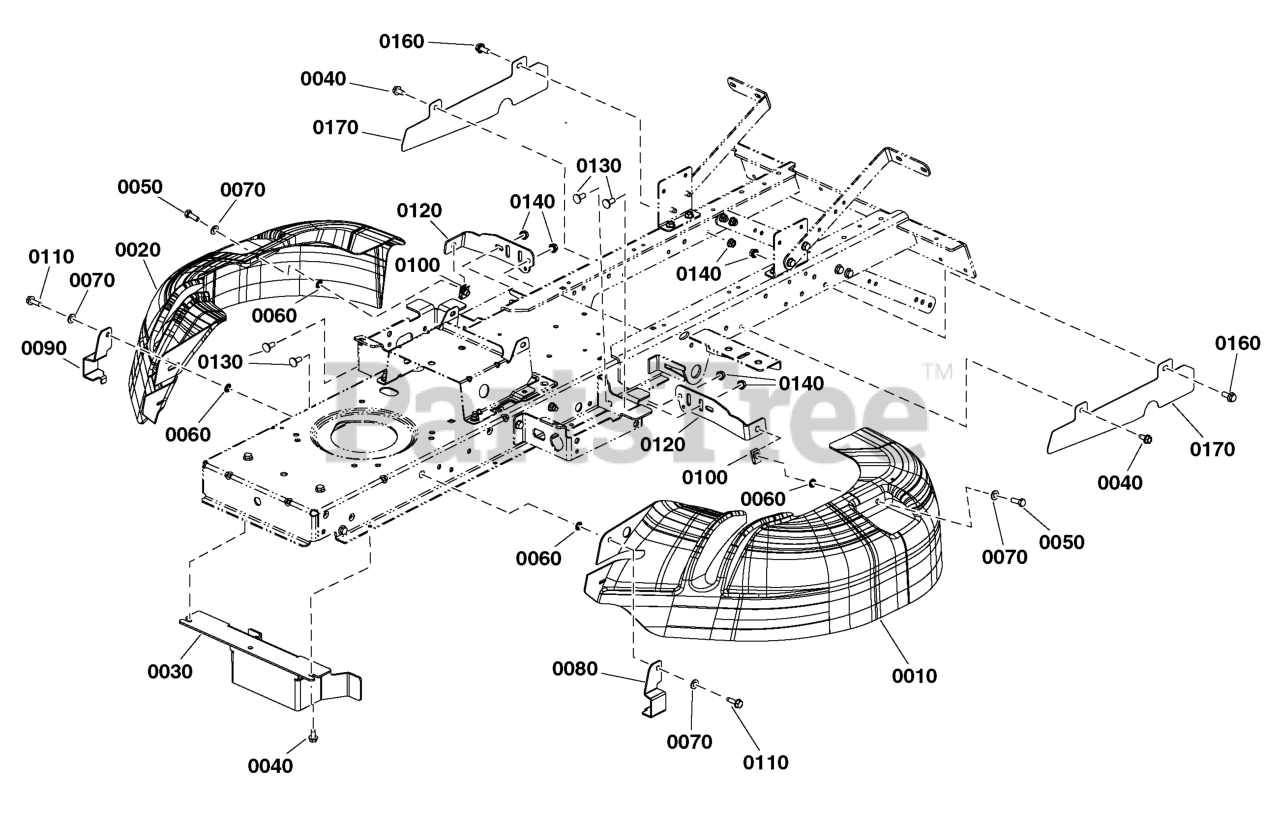

EU Guard Group Parts Diagram

  • Title

0010

Snapper 1759737YP

GUARD, Front, LH

$279.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759738YP

GUARD, Front, RH

$279.99

$

Usually ships in 2-12 days

0

0030

Snapper 84003099

GUARD, Clutch

$62.99

$

Usually ships in 2-12 days

0

0040

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 703408

SCREW, Hex Head Cap, 5/16-18 X 7/8, GR5

$4.99

$

In Stock, Qty 14

0

0060

Snapper 772145

KIT, Bearing Mounting Plate

$18.99

$

Usually ships in 2-12 days

0

0070

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 3 left!

0

0080

Snapper 1759985BMYP

SUPPORT, Guarding, L.H.

$17.99

$

Usually ships in 2-12 days

0

0090

Snapper 1759989BMYP

SUPPORT, Guarding, R.H.

$16.99

$

Usually ships in 2-12 days

0

0100

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 3 left!

0

0110

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0120

Snapper 1759729CJYP

SUPPORT

$11.99

$

Usually ships in 2-12 days

0

0130

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0140

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0160

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

0170

Snapper 84003100

GUARD, Suspension

$17.99

$

In Stock, only 2 left!

0
