RXT 310 (2691492-00) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton Seat Deck & Fuel Tank Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

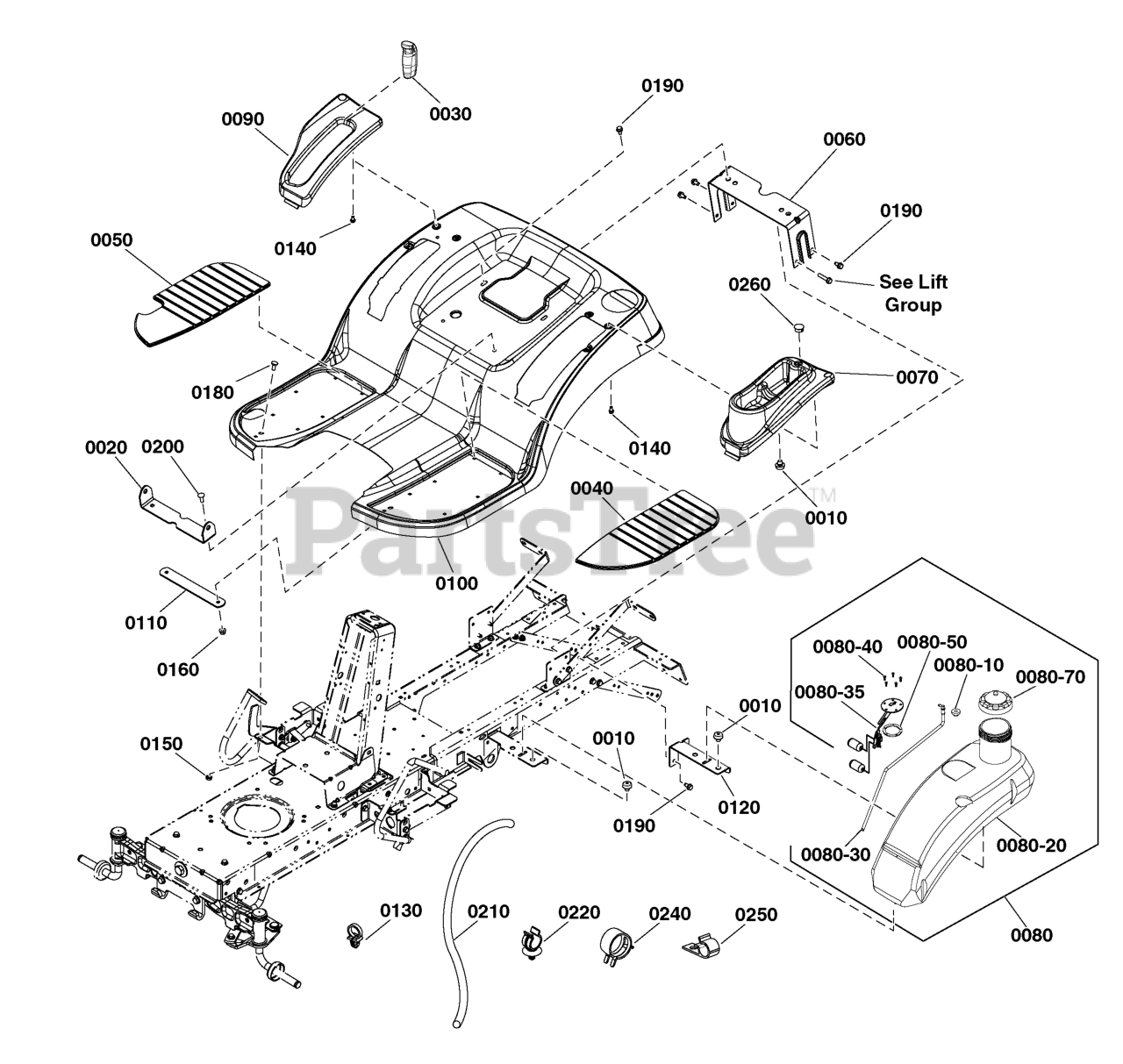

Seat Deck & Fuel Tank Group Parts Diagram

  • Title

0010

Snapper 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0020

Snapper 885538AYP

PIVOT, Seat

$17.99

$

Usually ships in 2-12 days

0

0030

Snapper 1722302SM

GRIP, Black

$8.49

$

In Stock, Qty 10

0

0040

Snapper 1728006SM

PAD, Footrest, L.H.

$21.99

$

In Stock, only 1 left!

0

0050

Snapper 1728007SM

PAD, Footrest, R.H.

$20.99

$

In Stock, only 1 left!

0

0060

Snapper 1731310SM

SUPPORT, Seat Deck

$36.99

$

Usually ships in 2-12 days

0

0070

Snapper 1758774YP

POD, LH

$41.99

$

Usually ships in 2-12 days

0

0080

Snapper 1758414YP

FUEL TANK ASSEMBLY

$307.99

$

Usually ships in 2-12 days

0

0080-10

Snapper 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 20+

0

0080-20

FUEL TANK

Note: (Not Serviceable)

$

$

Not available

0080-30

Snapper 1758506YP

TUBE, Fuel Pickup

$19.99

$

Usually ships in 2-12 days

0

0080-35

Snapper 1758611YP

SENDER, Fuel

$72.99

$

Usually ships in 2-12 days

0

0080-40

Snapper 2860665SM

SCREW, Pan Head, Torx, 10-32 x 1/2

$3.49

$

Usually ships in 2-12 days

0

0080-50

Snapper 1758898YP

PLATE, Mounting, Fuel Sender

$9.49

$

Usually ships in 2-12 days

0

0080-70

Snapper 5101651SM

CAP, Fuel, Vented

$30.99

$

In Stock, Qty 20+

0

0090

Snapper 1739537YP

POD, R.H.

$31.99

$

Usually ships in 2-12 days

0

0100

Snapper 1758849DYP

SEAT DECK, Red

$239.99

$

Usually ships in 2-12 days

0

0110

Snapper 1759177CJYP

BRACKET, Support, Seat Pivot

$16.99

$

Usually ships in 2-12 days

0

0120

Snapper 84003040

BRACKET, Fuel Tank, Rear

$20.99

$

Usually ships in 2-12 days

0

0130

Snapper 1730268SM

CLIP, Hose, 1/2 Dia., Push In

$3.99

$

Usually ships in 2-12 days

0

0140

Snapper 1960536SM

CAPSCREW, Hex Washer Head, Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0150

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0190

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, only 3 left!

0

0200

Snapper 704065

BOLT, Carriage, Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 6

0

0210

Snapper 845503

LINE, Fuel

$35.99

$

Usually ships in 2-12 days

0

0220

Snapper 84003041

CLIP, Hose

$3.99

$

Usually ships in 2-12 days

0

0240

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0250

Snapper 84003042

CLIP, Hose, Screw Mount

$4.49

$

Usually ships in 2-12 days

0

0260

Snapper 1732007SM

PLUG, Hole, 7/8 Dia.

$4.49

$

Usually ships in 2-12 days

0
