RXT 300 (2691253-00) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton 107cm Mower Deck Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

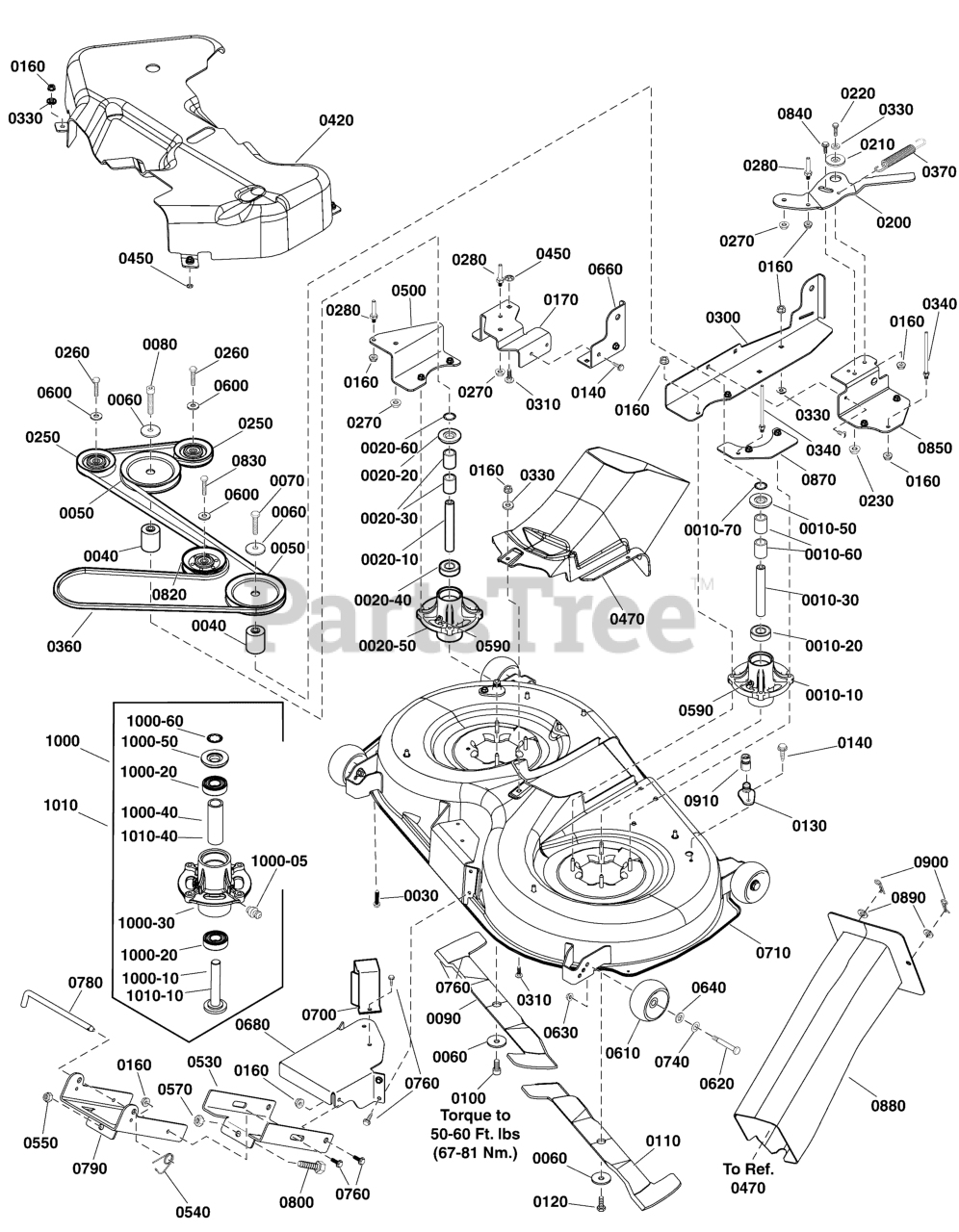

107cm Mower Deck Parts Diagram

  • Title

0010-10

Snapper 1735573YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 9

0

0010-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0010-30

Snapper 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

Note: (Replaced by Ref. Nos. 1000-10, this spindle shaft is an exact replacement for the shaft, shield and ring)

$27.99

$

In Stock, only 4 left!

0

0010-50

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 8

0

0010-60

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1000-40, this spacer is an exact replacement)

$6.49

$

In Stock, only 3 left!

0

0010-70

Snapper 1960766YP

RING, Self Lock

$4.49

$

In Stock, Qty 20+

0

0020-10

Snapper 885420YP

SHAFT, Spindle, RH (LH Thread)
(Superseded to 1760279YP)

Note: (Replaced by Ref. Nos. 1010-10, this spindle shaft is an exact replacement for the shaft, shield and ring)

$46.99

$

Usually ships in 2-12 days

0

0020-20

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 8

0

0020-30

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1010-40, this spacer is an exact replacement)

$6.49

$

In Stock, only 3 left!

0

0020-40

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0020-50

Snapper 1735573YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 9

0

0020-60

Snapper 1960766YP

RING, Self Lock

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 1930600SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0040

Snapper 1750338YP

SPACER, Mower Drive

$16.99

$

Usually ships in 2-12 days

0

0050

Snapper 1758750YP

PULLEY

$25.99

$

Usually ships in 2-12 days

0

0060

Snapper 1656916SM

WASHER, Spring, 0.475

$7.49

$

In Stock, Qty 20+

0

0070

Snapper 1926110SM

CAPSCREW, Hex Head, 7/16-14 x 2-3/4, GR5

$6.49

$

Usually ships in 2-12 days

0

0080

Snapper 885456YP

CAPSCREW, Socket Head, 7/16-14 x 2-3/4
(Superseded to 703846)

$8.99

$

Usually ships in 2-12 days

0

0090

Snapper 1758513BMYP

BLADE, RH

$44.99

$

Usually ships in 2-12 days

0

0100

Snapper 885455YP

CAPSCREW, Socket Head, 7/16-14 x 1
(Superseded to 703845)

$10.99

$

In Stock, only 2 left!

0

0110

Snapper 1758514BMYP

BLADE, LH

$44.99

$

Usually ships in 2-12 days

0

0120

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0130

Snapper 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0140

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0160

Snapper 1931277SM

NUT, Flange, 5/16-18, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Snapper 885723BMYP

SUPPORT, Idler Arm

$36.99

$

Usually ships in 2-12 days

0

0200

Snapper 1758759BMYP

IDLER ARM

$51.99

$

Usually ships in 2-12 days

0

0210

Snapper 1727935SM

SPACER, Pivot, 5/16 ID x 1-3/4 OD

$5.99

$

In Stock, only 1 left!

0

0220

Snapper 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0230

Snapper 015X88MA

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0250

Snapper 885482YP

IDLER, Pulley

$33.99

$

In Stock, only 1 left!

0

0260

Snapper 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, GR5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0270

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 885534YP

BELT GUIDE

$9.49

$

Usually ships in 2-12 days

0

0300

Snapper 885724BMYP

BRACKET, Deck, Rear Lift, LH

$91.99

$

Usually ships in 2-12 days

0

0310

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0330

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0340

Snapper 1401105MA

BELT GUIDE, Long

$5.49

$

In Stock, Qty 5

0

0360

Snapper 1758760YP

BELT

$69.99

$

Usually ships in 2-12 days

0

0370

Snapper 1715435SM

SPRING, Extension

$9.49

$

In Stock, Qty 20+

0

0420

Snapper 1759109YP

COVER, Pulley

$341.99

$

Usually ships in 2-12 days

0

0450

Snapper 703297

RETAINER, 5/16, GR5

$3.99

$

In Stock, Qty 20+

0

0470

Snapper 885719YP

CENTER CAP

$182.99

$

Usually ships in 2-12 days

0

0500

Snapper 885845BMYP

BRACKET, Idler, Fixed

$34.99

$

Usually ships in 2-12 days

0

0530

Snapper 885734BMYP

BRACKET, Front Connector

$53.99

$

Usually ships in 2-12 days

0

0540

Snapper 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0550

Snapper 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

0570

Snapper 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

0590

Snapper 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0600

Snapper 1922755SM

WASHER, Flat, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0610

Snapper 1714760SM

GAUGE WHEEL

$6.49

$

In Stock, Qty 20+

0

0620

Snapper 2108765SM

BOLT, Wheel, 3/8-16 x 2-3/4, 3/4" Thread

$6.49

$

In Stock, Qty 20+

0

0630

Snapper 703158

NUT, Hex Flange, ESNA, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0640

Snapper 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0660

Snapper 885720BMYP

BRACKET, Deck, Rear, RH

$18.99

$

Usually ships in 2-12 days

0

0680

Snapper 885727BMYP

SUPPORT, Front

$82.99

$

Usually ships in 2-12 days

0

0700

Snapper 885728BMYP

BRACKET, Front Upstop

$23.99

$

Usually ships in 2-12 days

0

0710

Snapper 885827BMYP

KIT, Mower Deck 107cm, Crow Black

$476.99

$

Usually ships in 2-12 days

0

0740

Snapper 0020X3MA

WASHER, Spring, 1/2

$4.49

$

Usually ships in 2-12 days

0

0760

Snapper 1732426SM

BOLT, Shoulder, 5/16-18 x 1/2

$4.49

$

In Stock, only 1 left!

0

0780

Snapper 1731414SM

ROD, Latch

$14.99

$

Usually ships in 2-12 days

0

0790

Snapper 885699BMYP

BRACKET, Front Hanger

$82.99

$

In Stock, only 1 left!

0

0800

Snapper 885710YP

BOLT, 1/2 x 3

$5.49

$

Usually ships in 2-12 days

0

0820

Snapper 885937YP

PULLEY, Idler

$34.99

$

In Stock, only 1 left!

0

0830

Snapper 703406

CAPSCREW, Hex Head, 3/8-16 x 1-1/2, G5

$4.99

$

In Stock, only 1 left!

0

0840

Snapper 1752802YP

BOLT, Shoulder, 5/16-18 x 1

$5.99

$

Usually ships in 2-12 days

0

0850

Snapper 1758758BMYP

BRACKET, Idler Mount

$41.99

$

Usually ships in 2-12 days

0

0870

Snapper 1758757BMYP

PLATE, Belt Guide Mount

$13.99

$

Usually ships in 2-12 days

0

0880

Snapper 885769YP

CHUTE
(Superseded to 885461YP)

$205.99

$

Usually ships in 2-12 days

0

0890

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0900

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0910

Snapper 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0

1000

Snapper 84003175

ARBOR ASSEMBLY

Note: (Left Hand)

$100.99

$

In Stock, only 1 left!

0

1000-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1000-10

Snapper 84003170

SHAFT, Spindle

$29.99

$

In Stock, only 2 left!

0

1000-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1000-30

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 9

0

1000-40

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1000-50

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, Qty 8

0

1000-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

1010

Snapper 84003176

ARBOR ASSEMBLY, RH

Note: (Right hand)

$59.99

$

Usually ships in 2-12 days

0

100-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1010-10

Snapper 84003171

SHAFT, Spindle

$40.99

$

Usually ships in 2-12 days

0

1000-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1000-30

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 9

0

1010-40

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1000-50

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, Qty 8

0

1000-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0
