RTSN100A3S - Generac Power Transfer Switch (SN: 4936227 - 5779075) (2010) 100A Transfer Switch Assembly (0G6023$-A) Parts Diagram

Power Transfer Switch

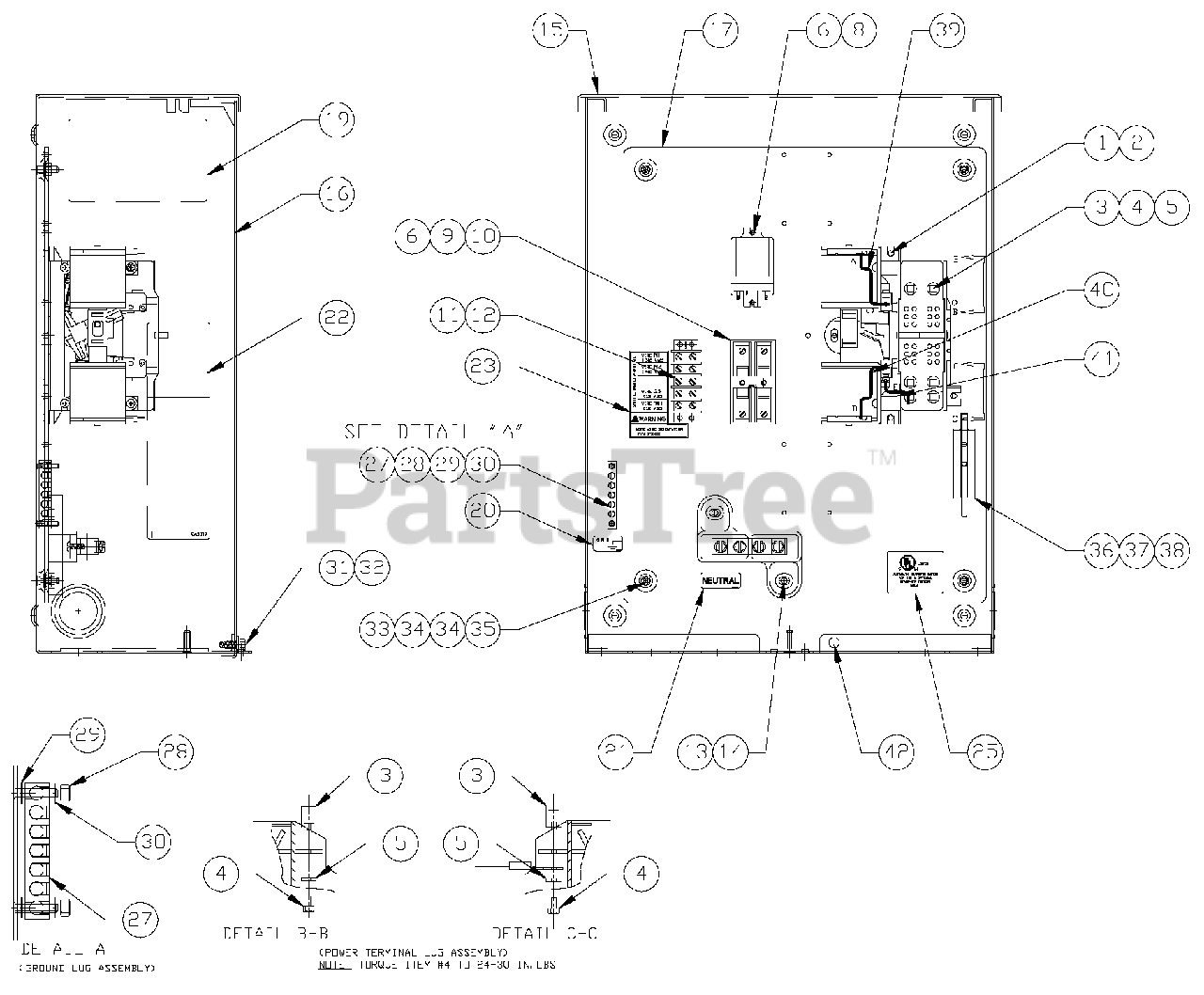

100A Transfer Switch Assembly (0G6023$-A) Parts Diagram

  • Title

1

Generac 0C2237

TR SW-HSB 100A 2P 250V

Note: ORDER 0L2910

$

$

Not available

2

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

3

Generac 0G2000

LUG SLDLSS 1/0-#14X9/16 AL/CU

Note: USE 077033 LUG

$

$

Not available

4

Generac 036933

SCREW, PPHMS 10-32 X 3/8""
(Superseded to G036933)

$0.99

$

Usually ships in 2-12 days

0

5

Generac 022152

WASHER, LOCK # 10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

6

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZYC

$0.99

$

Usually ships in 2-12 days

0

7

Generac 0G6025

WIRING HARNESS HSB (NOT SHOWN)

$480.99

$

Usually ships in 2-12 days

0

8

Generac 063617

RELAY PNL 12VDC DPDT
(Superseded to G063617)

$38.99

$

Usually ships in 2-12 days

0

9

Generac 0D2806

FUSEBLOCK 30A 600V 2 POLE

$40.99

$

Usually ships in 2-12 days

0

10

Generac 073590A

FUSE 5A X BUSS HLDR73591

$8.99

$

In Stock, only 1 left!

0

11

Generac 048850

BLOCK, TERM 20A 5 X 6

$

$

Not available

12

Generac 0A1661

RIVET, POP .156 X .67

$0.99

$

Usually ships in 2-12 days

0

13

Generac 0C4449

ASS’Y NEUTRAL BLOCK 100A

$

$

Not available

14

Generac 090388

SCREW HHTT M6-1.0 X 12 MM
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

15

Generac 0G51590AL08

ENCLOSURE, 100/200A TRANSFER SWITCH

$166.99

$

Usually ships in 2-12 days

0

16

Generac 0G51740AL08

COVER, TRANSFER SWITCH

$51.99

$

Usually ships in 2-12 days

0

17

Generac 0G55920AL08

SUBPLATE, 100/200A XFER SW

$21.99

$

Usually ships in 2-12 days

0

18

Generac 0F0668

DECAL, FRONT COVER ATS NEMA3R

$12.99

$

Usually ships in 2-12 days

0

19

0G5968A

DECAL, XFER SW NON 100A 120/240

$

$

Not available

Generac 0G7102

DECAL TRANSFER SWITCH DATA 100

$2.49

$

Usually ships in 2-12 days

0

20

Generac 067210A

DECAL, GROUNDING LUG

$0.99

$

Usually ships in 2-12 days

0

21

Generac 0A9457

DECAL, NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

22

Generac 0A9517

DECAL, MANUAL 5A FUSE

$2.49

$

Usually ships in 2-12 days

0

23

Generac 0C2262

DECAL, TERMINAL STRIP

$1.49

$

Usually ships in 2-12 days

0

24

Generac 077036D

DECAL, TEST SEQUENCE

$

$

Not available

25

Generac 081221

DECAL, UL LIST HSB

$

$

Not available

26

Generac 0G3274

DECAL, LIVE CIRCUIT ENG/FRN/SPN

$12.99

$

Usually ships in 2-12 days

0

27

Generac 0E6523

GROUND BAR (5) 4-14 AWG CONN

$20.99

$

Usually ships in 2-12 days

0

28

Generac 0C6748

NUT HEX LOCK M4-0.7 SS NYL INS

$8.99

$

Usually ships in 2-12 days

0

29

Generac 026579

WASHER SHAKEPROOF EXT #8 STEEL

$

$

Not available

30

Generac 043180

WASHER FLAT M4

$

$

Not available

31

Generac 085296

SCREW HHC 1/4-20 X 1/2 SS

$

$

Not available

32

Generac 0F6165

WASHER M6 NYLON INT HEX

$2.99

$

Usually ships in 2-12 days

0

33

Generac 085889

NUT HEX 1/4-20 SS

$

$

Not available

34

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

35

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

36

Generac 0E6193

BRACKET, ARM EXTENDER

$2.49

$

Usually ships in 2-12 days

0

37

Generac 0E6155

ARM EXTENDER PIN

$16.99

$

In Stock, only 1 left!

0

38

Generac 064526

SCREW HWHS #6-25 X 3/8 ZNC
(Superseded to G064526)

$0.99

$

Usually ships in 2-12 days

0

39

Generac 0E6303

WIRE-A

$2.99

$

Usually ships in 2-12 days

0

40

Generac 0E6303A

WIRE-B

$55.99

$

Usually ships in 2-12 days

0

41

Generac 0E6303C

WIRE-E1

$3.49

$

Usually ships in 2-12 days

0

42

Generac 058000E

NUT TRIC 1/4-20 X .525

$12.99

$

Usually ships in 2-12 days

0
