RTSD100A1 - Generac Power Transfer Switch (SN: 5059276 - 5756341) (2010) Load Center Exploded View (0G8786-D) Parts Diagram

Power Transfer Switch

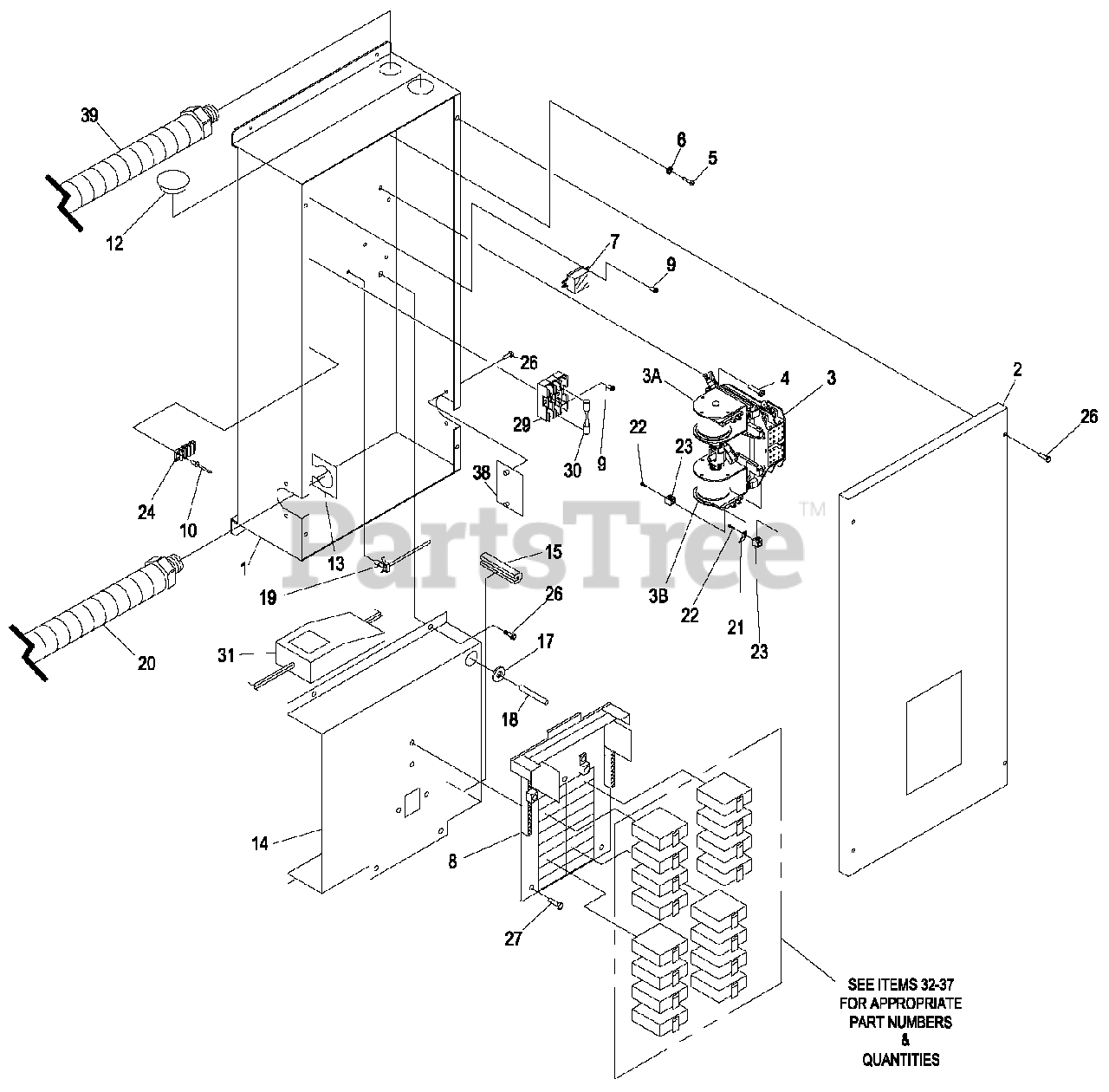

Load Center Exploded View (0G8786-D) Parts Diagram

  • Title

1

Generac 0G80700ST14

GTS LOAD CENTER ENCLOSURE GRAY

$95.99

$

Usually ships in 2-12 days

0

2

Generac 0G81010ST14

COVER 8 POS GTS LOAD CTR GRAY

$

$

Not available

Generac 0G81020ST14

COVER 10 POS.GTS LOAD CTR GRAY

$42.99

$

Usually ships in 2-12 days

0

Generac 0G81030ST14

COVER 12 POS.GTS LOAD CTR GRAY

$41.99

$

Usually ships in 2-12 days

0

Generac 0G81040ST14

COVER 14 POS.GTS LOAD CTR GRAY

$41.99

$

Usually ships in 2-12 days

0

Generac 0G81060ST14

COVER 16 POS.GTS LOAD CTR GRAY

$41.99

$

Usually ships in 2-12 days

0

3

Generac 0C2237

TRANSFER SWITCH HOME STANDBY 100A 2P 250V

Note: ORDER 0L2910

$

$

Not available

3A

Generac 077220

COIL UTILITY
(Superseded to G077220)

$140.99

$

Usually ships in 2-12 days

0

3B

Generac 077220A

COIL STANDBY

$140.99

$

Usually ships in 2-12 days

0

4

Generac 074908

SCREW HHTT M5-0.8 X 10
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

5

Generac 024912

SCREW TAPTITE 1/4-20 X 5/8

$

$

Not available

6

Generac 0A1658

LOCK WASHER, SPECIAL-1/4"

$15.99

$

Usually ships in 2-12 days

0

7

Generac 063617

RELAY PANEL 12VDC DPDT 10A@240VAC
(Superseded to G063617)

$38.99

$

Usually ships in 2-12 days

0

8

Generac 0E7889A

8CIR L/CNTR 125A/240V

$81.99

$

Usually ships in 2-12 days

0

Generac 0E7889

12CIR L/CENTR 125A/240V (ALSO USED FOR 10 CIRCUIT)

$128.99

$

In Stock, only 1 left!

0

Generac 0F9213

16CIR L/CENTR 125A/240V (ALSO USED FOR 14 CIRCUIT)

$157.99

$

Usually ships in 2-12 days

0

9

Generac 0A1495

SCREW HHTT M4-0.7 X 10

$0.99

$

Usually ships in 2-12 days

0

10

Generac 0A1661

RIVET POP .156" X .675"

$0.99

$

Usually ships in 2-12 days

0

11

$

$

Not available

12

Generac 081108

PLUG PLASTIC

$

$

Not available

13

Generac 0G8095AST14

HARNESS ADAPTER PLATE GRAY

$7.99

$

Usually ships in 2-12 days

0

14

Generac 0G81300ST14

SUBPLATE GTS LOAD CENTER GRAY

$75.99

$

Usually ships in 2-12 days

0

15

Generac 0F4790

U-CHANNEL

$3.49

$

Usually ships in 2-12 days

0

16

$

$

Not available

17

Generac 022717A

GROMMET 3/8 X 1/16 X 1/4

$0.99

$

Usually ships in 2-12 days

0

18

Generac 0E6155

ARM EXTENDER PIN

$16.99

$

In Stock, only 1 left!

0

19

Generac 0G8233A

CABLE TIE SELF MOUNTING 4.3LG

$0.99

$

Usually ships in 2-12 days

0

20

Generac 0G8138

HARN GTS. MAN PNL 8CIR W/NEUT

$258.99

$

Usually ships in 2-12 days

0

Generac 0G8139

HARN GTS. MAN PNL 10CIR W/NEUT

$807.99

$

Usually ships in 2-12 days

0

Generac 0G8140

HARN GTS. MAN PNL 12CIR W/NEUT

$466.99

$

Usually ships in 2-12 days

0

Generac 0G7955

HARN GTS. MAN PNL 14CIR W/NEUT

$518.99

$

Usually ships in 2-12 days

0

Generac 0G8141

HARN GTS. MAN PNL 16CIR W/NEUT

$1519.99

$

Usually ships in 2-12 days

0

21

Generac 074138

LUG QUICK DISCONNECT NI-S 10X45 DEG BRASS / TIN

$

$

Not available

22

0H0090A

SCREW PPHM # 10-32X5/16 SEMS SC

$

$

Not available

23

Generac 077033

LUG SLDLSS 1/0-# 14X9/16 AL/CU

$

$

Not available

24

Generac 0D4698

BLOCK TERM 20A 6 X 3 X 1100V

$5.99

$

Usually ships in 2-12 days

0

26

Generac 0A7215

SCREW SW 1/4"-20 X 5/8" WITH WASHER

$2.99

$

Usually ships in 2-12 days

0

27

Generac 066849

SCREW HHTT M5-0.8 X 16 (8, 10, 12, 14, 16 CIRCUIT)
(Superseded to G066849)

$0.99

$

In Stock, Qty 10

0

28

Generac 0G7954A

HARNESS LOAD CTR INT.CONN 8-16 (NOT SHOWN)

$98.99

$

Usually ships in 2-12 days

0

Generac 0G7954B

HARNESS LOAD CTR INT.CONN T1 (NOT SHOWN)

$6.99

$

Usually ships in 2-12 days

0

Generac 0G7954C

HARNESS LOAD CTR INT.CONN T2 (NOT SHOWN)

$29.99

$

Usually ships in 2-12 days

0

29

Generac 0D2572

FUSEBLOCK 30A 600V 3POS W/SQ

$37.99

$

Usually ships in 2-12 days

0

30

Generac 073590A

FUSE 5A

$8.99

$

In Stock, only 1 left!

0

31

Generac 0G8487

BATTERY CHARGER ASSY

$

$

Not available

32

Generac 0E7888

CIR BRKR 20A 2P

$48.99

$

Usually ships in 2-12 days

0

33

Generac 0E7888A

CIR BRKR 30A 2P

$55.99

$

In Stock, only 1 left!

0

34

Generac 0E7888B

CIR BRKR 15A 1P

$25.99

$

Usually ships in 2-12 days

0

35

Generac 0E7888C

CIR BRKR 20A 1P

$22.99

$

In Stock, Qty 10

0

36

Generac 0E7888D

CIR BRKR 40A 2P

$48.99

$

Usually ships in 2-12 days

0

37

Generac 0E7888E

CIR BRKR 50A 2P

$55.99

$

Usually ships in 2-12 days

0

38

Generac 0G80860ST14

HARNESS ENTRY COVER GRAY
(Superseded to 0K82620ST14)

$5.49

$

Usually ships in 2-12 days

0

39

Generac 0G7951

HARN GTS-EXT CONN BOX 8KW

$

$

Not available

Generac 0G7952

HARN GTS-EXT CONN BOX 10KW

$570.99

$

Usually ships in 2-12 days

0

Generac 0G7953

HARN GTS- EXT CONN BOX 14/17KW

$713.99

$

Usually ships in 2-12 days

0
