RTS-50 (21A-448-100) - Cub Cadet Rear-Tine Tiller (1997) Tiller Assembly Parts Diagram

Rear-Tine Tiller

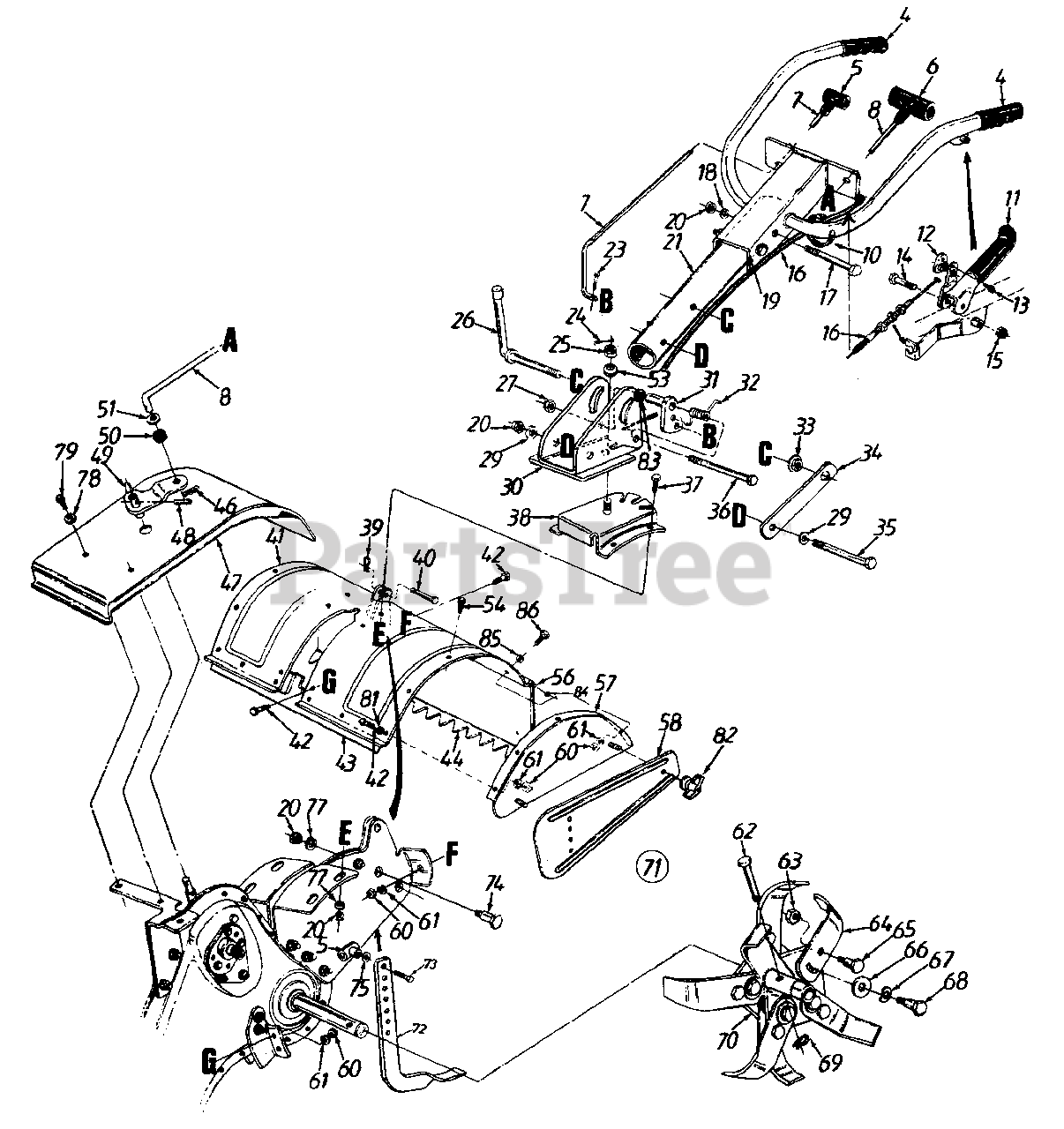

Tiller Assembly Parts Diagram

  • Title

4

Cub Cadet 720-0180

Handle Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet 720-0210A

Small "T" Knob

$15.99

$

In Stock, only 2 left!

0

6

Cub Cadet 720-0209

Large "T" Knob

$21.99

$

In Stock, only 1 left!

0

7

Cub Cadet 747-0666

Clutch Rod

$25.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 747-0664

Control Rod 37" Lg.

$23.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725-0157

Cable Tie-Self Clinching

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 784-0202B

Clutch Grip Ass'y. - L.H.
(Superseded to 684-04399A-0637)

Variations

Cub Cadet 784-0202B-0637

Clutch Assembly Lever - POWDER BLACK (0637)

$33.99

$

In Stock, only 4 left!

0

$33.99

$

In Stock, only 4 left!

0

12

Cub Cadet 746-0605

Barrel Cable Hold Down
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 7

0

14

Cub Cadet 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.99

$

In Stock, Qty 7

0

15

Cub Cadet 712-0262

Hex Jam L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 746-0908

Clutch Control Cable 46" Lg.
(Superseded to 946-0908)

$75.99

$

In Stock, Qty 15

0

17

Cub Cadet 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

$

$

Not available

18

Cub Cadet 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 6

0

19

Cub Cadet 684-0109

Handle Ass'y.

Note: Code 0498

Variations

Cub Cadet 684-0109-0483

HANDLE ASSEMBLY CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0109-0498

HANDLE ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0109-0638

HANDLE ASSEMBLY (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0109-0665

HANDLE ASSEMBLY (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

21

Cub Cadet 784-0189

Handle Tubing Ass'y.

Note: Code 0498

Variations

Cub Cadet 784-0189-0480

TUBING ASSY HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 784-0189-0498

USE 784-0189-0637 TUBE ASM-HN - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0189-0637

TUBE ASM-HNDL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0189-0638

USE 784-0189-0637 TUBE ASM-HN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0189-0648

USE 784-0189-0637 TUBE ASM-HN - TECH GRAY (0648)

$

$

Not available

Cub Cadet 784-0189-0650

USE 784-0189-0637 TUBE ASM-HN - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-0189-0662

USE 784-0189-0637 TUBE ASM-HN - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0189-0665

USE 784-0189-0637 TUBE ASM-HN - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-0189-0691

USE 784-0189-0637 TUBE ASM-HN - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-0189-4015

TUBING ASSY HANDLE - FIRE RED (4015)

$

$

Not available

$

$

23

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 714-3021

Cotter Pin 3/32" Dia. x 1.25" Lg.
(Superseded to 914-3021)

$

$

Not available

25

Cub Cadet 712-0386A

Hex Slotted Nut 5/8-18 Thd.

$7.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 784-0190

Handle Adj. Crank

$24.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

29

Cub Cadet 736-0105

Bell-Wash. .4" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 784-0263A

Handle Pivot Bracket
(Superseded to 684-0263A)

Note: Code 0498

Variations

Cub Cadet 784-0263A-0483

USE 684-0263A-0483 PIVOT BRKT - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0263A-0498

USE 684-0263A-0498 PIVOT BRKT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0263A-0637

USE 684-0263A-0637 PIVOT BRKT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0263A-0638

USE 684-0263A-0638 PIVOT BRKT - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0263A-0648

USE 684-0263A-0648 PIVOT BRKT - TECH GRAY (0648)

$

$

Not available

Cub Cadet 784-0263A-0665

USE 684-0263A-0665 PIVOT BRKT - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

Cub Cadet 748-0375

Handle Link

$20.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 732-0493

Spring Handle Adj. (Torsion)

$16.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 784-0191

Bracket Hex Nut Retainer

$7.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-0644

Hex Bolt 3/8-16 x 3.25" Lg.
(Superseded to 710-3130)

$10.99

$

In Stock, only 4 left!

0

36

Cub Cadet 710-0521

Hex Bolt 3/8-16 x 3.00" Lg. - Gr. 8

$5.49

$

In Stock, Qty 11

0

37

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 686-0071

Handle Positioner Brkt. Ass'y.

Note: Code 0498

Variations

Cub Cadet 686-0071-0480

BRACKET ASSY-POSITIONER - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 686-0071-0483

BRACKET ASSY-POSITIONER - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 686-0071-0498

BRACKET ASSY-POSITIONER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 686-0071-0637

BRACKET ASSY-POSITIONER - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 686-0071-0638

USE 686-0071-0637 BRACKET ASS - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 686-0071-0662

BRACKET ASSY-POSITIONER - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 686-0071-0665

BRACKET ASSY-POSITIONER - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 686-0071-4015

BRACKET ASSY-POSITIONER - FIRE RED (4015)

$

$

Not available

$

$

39

Cub Cadet 714-0149B

Intern. cotter Pin

$4.49

$

In Stock, Qty 18

0

40

Cub Cadet 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 784-0156

Tine Shield 18"

Note: Code 0498

Variations

Cub Cadet 784-0156-0483

SHIELD-TIN - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0156-0498

SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0156-0499

SHIELD-TIN - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 784-0156-0637

SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0156-0638

SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0156-0662

SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0156-0665

SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 784-0210

Bracket Reinforcement - 18"

$

$

Not available

44

Cub Cadet 786-0113

Tine Shield Hinge Flap

Note: Code 0498

Variations

Cub Cadet 786-0113-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet 786-0113-0638

USE 786-0113A-0638 SHIELD-REA - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0716

Rear Tine Shield - CUB YELLOW-99 (0716)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet 786-0113-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0650

USE 786-0113A-0650 SHIELD-REA - RED METALLIC (0650)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0665

USE 786-0113A-0665 SHIELD-REA - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0709

USE 786-0113A-0709 SHIELD-REA - MASTERCRAFT GREEN (0709)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-4015

USE 786-0113A-4015 SHIELD-REA - FIRE RED (4015)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0606

REAR TINE SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 786-0113-0662

REAR TINE SHIELD - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 784-0208B

Shift Cover
(Superseded to 784-0208C)

Note: Code 0498

Variations

Cub Cadet 784-0208B-0498

USE 784-0208C-0498 COVER-S - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0208B-0637

USE 784-0208C COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0208B-0638

USE 784-0208C-0638 COVER-SHIF - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0208B-0648

USE 784-0208C COVER-SHIFT - TECH GRAY (0648)

$

$

Not available

Cub Cadet 784-0208B-0650

USE 784-0208C-0650 COVER-SHIF - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-0208B-0662

USE 784-0208C-0662 COVER-SHIF - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0208B-0665

USE 784-0208C-0665 COVER-SHIF - YARDMAN GREEN (0665)

$

$

Not available

$

$

48

Cub Cadet 715-0120

Spring Roll Pin 3/16" Dia.

$10.99

$

In Stock, only 1 left!

0

49

Cub Cadet 784-0173

Shifting Crank Ass'y.

$

$

Not available

50

Cub Cadet 735-0127

Rubber Washer .33" I.D.

$6.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-0133

Fl-Wash. .4" I.D. x 1.25" O.D.

$5.49

$

In Stock, Qty 7

0

53

Cub Cadet 736-0317

Bell-Wash. .63" I.D. x 1.25"

$7.99

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0607

Hex Wash. Tap Scr.

$6.99

$

In Stock, Qty 9

0

56

Cub Cadet 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 784-0179A

End Cover Ass'y.
(Superseded to 984-0179A-0637)

Note: Code 0498

Variations

Cub Cadet 784-0179A-0498

USE 984-0179A-0637 COVER ASSY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0179A-0637

USE 984-0179A-0637 COVER ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

58

Cub Cadet 15390

Side Shield

Note: Code 0498

Variations

Cub Cadet 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 15390-0637

SHIELD-SIDE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

Cub Cadet 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

60

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

Cub Cadet 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

63

Cub Cadet 712-0355

Hex Nut 3/8-24 Thd.
(Superseded to 912-0355)

$5.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 742-0305

13" Dia. Articulating Tine
(Superseded to 742-0305A-0637)

Variations

Cub Cadet 742-0305-0637

Articulating Tine, Black - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 20+

0

$20.99

$

In Stock, Qty 20+

0

65

Cub Cadet 738-0689

Shld. Bolt 1/2" Dia. x .175
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0

66

Cub Cadet 736-0208

Fl-Wash. .51" I.D. x 1.50

$4.49

$

In Stock, Qty 9

0

67

Cub Cadet 736-0253

Bell-Wash. .515" I.D. x 1.14"

$3.99

$

In Stock, Qty 20+

0

68

Cub Cadet 738-0688

Shld. Bolt 1/2" Dia. x .320
(Superseded to 938-0688)

$9.99

$

In Stock, Qty 15

0

69

Cub Cadet 714-0149B

Intern. Cotter Pin

$4.49

$

In Stock, Qty 18

0

70

Cub Cadet 784-0160

Tine Adapter Ass'y. 18"
(Superseded to 784-0160-0637)

Variations

Cub Cadet 784-0160-0637

Tine Adapter Assembly, Black - POWDER BLACK (0637)

$115.99

$

In Stock, only 3 left!

0

$115.99

$

In Stock, only 3 left!

0

71

Cub Cadet 784-0205

Tine Ass'y. Comp. 18"
(Superseded to 984-0205A-0637)

Variations

Cub Cadet 784-0205-0637

Tine Assembly, Articulating - POWDER BLACK (0637)

$215.99

$

In Stock, only 2 left!

0

$215.99

$

In Stock, only 2 left!

0

72

Cub Cadet 786-0120

Depth Bar
(Superseded to 786-0120-0637)

Variations

Cub Cadet 786-0120-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

73

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 710-3097

Shld. Bolt 1/2" I.D. x .62" Lg.

$6.99

$

In Stock, Qty 5

0

75

Cub Cadet 736-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

77

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

78

Cub Cadet 736-0463

Fl-Wash. .281" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

81

UNKNOWN

$

$

Not available

82

Cub Cadet 712-0421

Plastic Knob 5/16-18 Thd.

$6.99

$

In Stock, Qty 20+

0

83

Cub Cadet 736-3004

Fl-Wash. .406" I.D. x .875" O.D.

$4.99

$

In Stock, Qty 6

0

84

Cub Cadet 723-0106

End Cap

$

$

Currently unavailable

85

Cub Cadet 736-0264

Flat Washer

$6.99

$

In Stock, only 2 left!

0

86

Cub Cadet 738-0849

Shoulder Screw
(Superseded to 938-0849)

$10.99

$

Usually ships in 3-6 days

0
