RTP 3 (UT-01577) - Homelite Trash Pump Pump Parts Diagram

Trash Pump

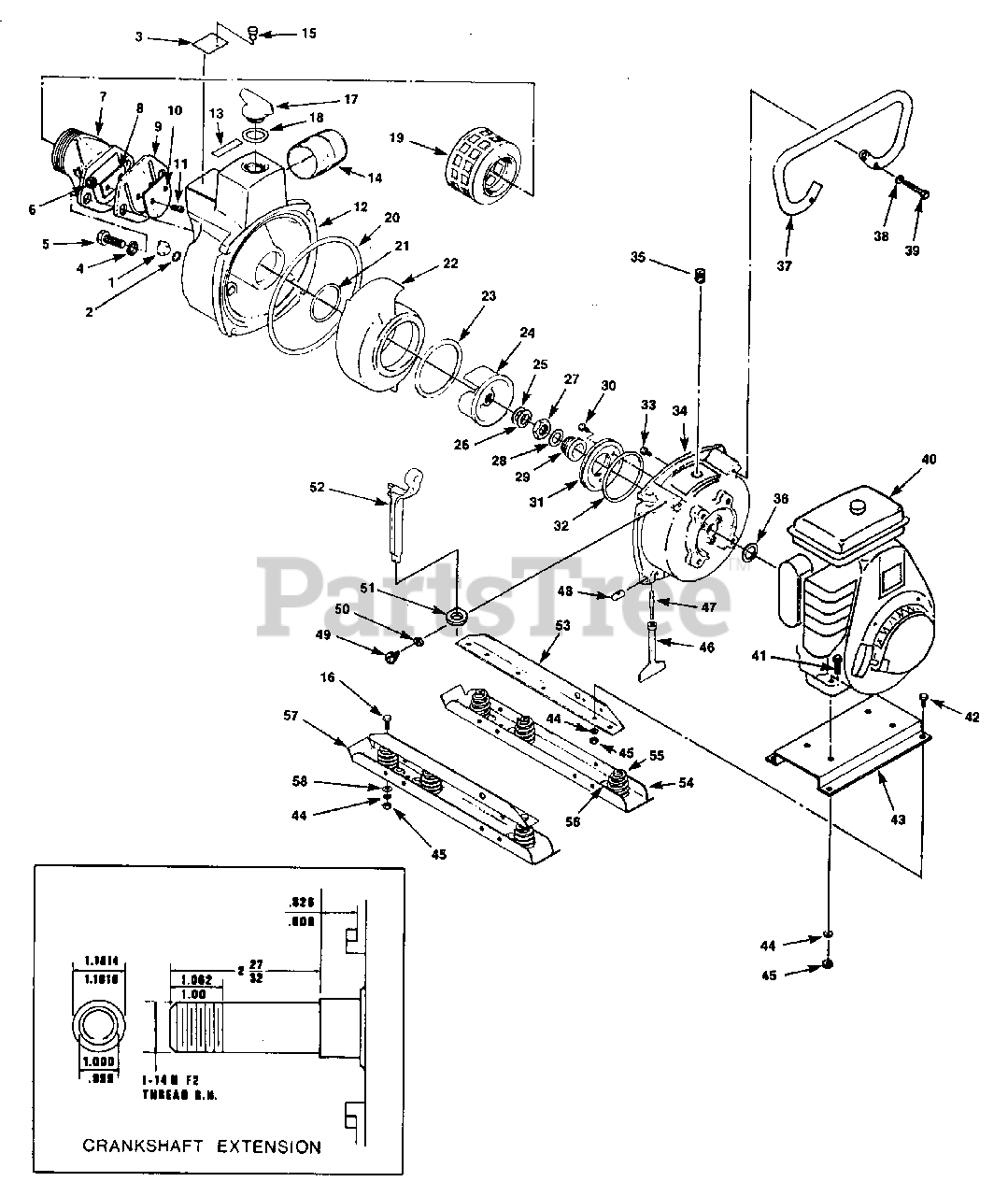

Pump Parts Diagram

  • Title

1

Homelite A43896

PLUG- Drain
(Superseded to UP07092)

$

$

Currently unavailable

2

Homelite 59910

GASKET

$

$

Not available

Homelite A43404A

HOUSING- End
(Superseded to UP07091)

$

$

Not available

3

Homelite 54661

DECAL- Plate

$

$

Not available

4

Homelite 83020

WASHER- Lock 1/2"

$

$

Not available

5

Homelite 80272

SCREW- 1/2-13 x 1 1/4"

$

$

Not available

6

Homelite 81111

NUT- Hex 10-32

$

$

Not available

7

Homelite 626576

FITTING- Suction std. thread

$

$

Not available

8

Homelite 62669

PLATE- Small

$

$

Not available

9

Homelite 62667

VALVE

$

$

Not available

10

Homelite 62668

PLATE- Large

$

$

Not available

11

Homelite 80032

SCREW- 10-32 x 1/2"

$

$

Not available

12

Homelite 514572A

HOUSING- End
(Superseded to UP06843)

$

$

Currently unavailable

13

Homelite 62315

DECAL

$

$

Not available

14

Homelite 542891

NIPPLE

$

$

Not available

15

Homelite 49266

TACK- Metal

$7.99

$

Usually ships in 3-7 days

0

16

Homelite 80085

SCREW- Hex hd. 5/16-18 x 1"

$2.49

$

Usually ships in 3-7 days

0

17

Homelite A43971

PLUG- Wing

$

$

Not available

18

Homelite 18108

GASKET- Wing nut plug

$

$

Not available

19

Homelite 74454A

STRAINER (1" openings)
(Superseded to UP07029)

$

$

Not available

20

Homelite 62367

GASKET- Pump body large
(Superseded to UP06428)

$51.99

$

Usually ships in 3-7 days

0

21

Homelite 62363A

GASKET- End plate small
(Superseded to UP06427)

$11.99

$

Usually ships in 3-7 days

0

22

Homelite 514582

HOUSING- Impeller
(Superseded to UP06411)

$

$

Not available

23

Homelite 62665A

GASKET- Impeller housing
(Superseded to UP06431)

$

$

Not available

24

Homelite 626552

IMPELLER
(Superseded to UP06429)

$

$

Not available

25

Homelite 62677

SHIM (.032") impeller

$

$

Not available

26

Homelite 62676

SHIM (.015") impeller

$

$

Not available

27

Homelite 62716

NUT- Impeller
(Superseded to UP07209)

$

$

Not available

28

Homelite 62675

SHIM- (.010") seal spring pressure

$

$

Not available

29

Homelite 627131

SEAL ASSEMBLY- Pump
(Superseded to 627131A)

$

$

Not available

30

Homelite 80402

SCREW- Hex hd. 1/4-20 x 5/8"
(Superseded to UP07182)

$

$

Not available

31

Homelite 514562

PLATE- Wear
(Superseded to UP07771)

$

$

Not available

32

Homelite 62772

"O" RING
(Superseded to UP06435)

$

$

Not available

33

Homelite 80771B

SCREW- Hex hd 3/8-16 x 1 1/4"

$

$

Not available

34

Homelite A47651

BODY- Pump
(Superseded to UP07082)

$

$

Not available

35

Homelite 82381

SCREW

$

$

Not available

36

Homelite 62688

SLINGER
(Superseded to UP06433)

$

$

Not available

37

Homelite 496031

HANDLE- Carrying

$

$

Currently unavailable

38

Homelite 84010

WASHER- Flat 3/8"
(Superseded to PS84010)

$

$

Not available

39

Homelite 80098

SCREW- Hex hd. 3/8-16 x 1 3/4"

$

$

Not available

40

Homelite A49564S

ENGINE

$

$

Currently unavailable

Homelite 49389

DECAL- Low engine

$7.49

$

Usually ships in 3-7 days

0

41

Homelite 80288

SCREW- Hex hd. 5/16-18 x 1 3/4"
(Superseded to UP03388)

$

$

Not available

42

Homelite 80695

SCREW- Hex hd. 5/16-18 x 3/4"
(Superseded to UP03381)

$

$

Not available

43

Homelite 421211A

BRACKET- Pump engine
(Superseded to UP08577)

$

$

Not available

44

Homelite 83002

WASHER
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

45

Homelite 81162

NUT- Hex 5/16-18

$

$

Not available

46

Homelite 548662

HANDLE- Disconnect

$

$

Currently unavailable

47

Homelite 54398

STUD- Handle
(Superseded to UP07774)

$

$

Not available

48

Homelite 54397

PIVOT- Handle

$

$

Not available

49

Homelite 80179

SCREW- Hex hd. 1/4-20 X 3/8"
(Superseded to UP03379)

$

$

Not available

50

Homelite 84020

WASHER- Flat 1.4"

$

$

Not available

51

Homelite 624501

BRACKET- Spanner wrench

$

$

Not available

52

Homelite 20024B

WRENCH- Spanner
(Superseded to UP06389)

$

$

Not available

53

Homelite 626622A

ANGLE- Base (right)

$

$

Currently unavailable

54

Homelite A62917

SKID

$

$

Not available

55

Homelite 25407

SPRING- Foot

$

$

Not available

56

Homelite 85025

RIVET

$

$

Not available

57

Homelite 626612A

ANGLE- Base (left)

$

$

Currently unavailable

58

Homelite 84046

WASHER- Flat 5/16

$

$

Not available
