RTE 114 - Weed Eater String Trimmer, Electric Product Complete Parts Diagram

String Trimmer, Electric

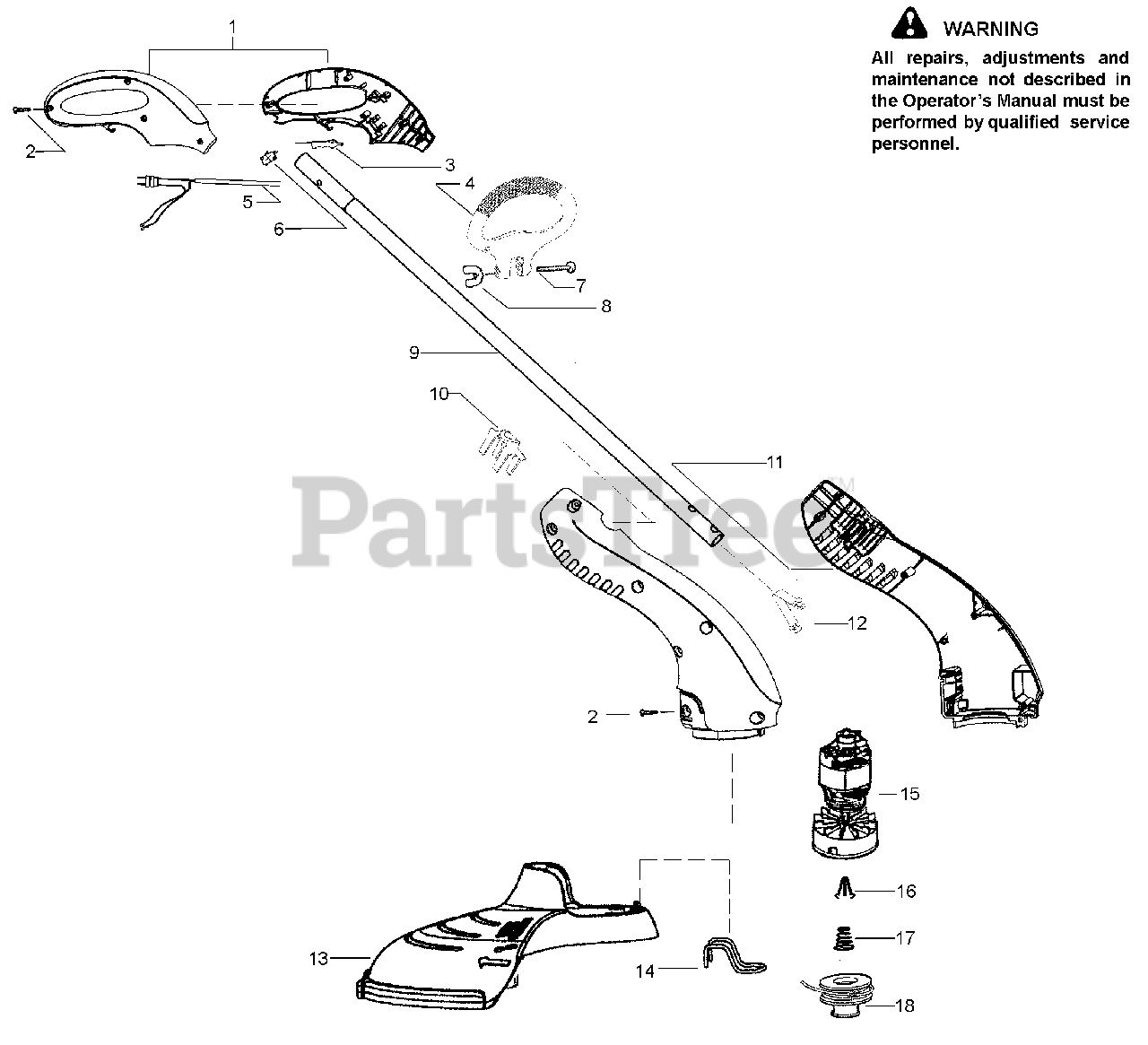

Product Complete Parts Diagram

  • Title

1

Poulan 530404021

Handle Set
(Superseded to 545077902)

$

$

Not available

2

Poulan 530016120

Screw

$3.99

$

In Stock, Qty 9

0

3

Poulan 530403818

Trigger

$

$

Not available

4

Poulan 530403805

Assist Handle

$

$

Not available

5

Poulan 530403908

Wiring Harness Ass'y.

Note: (Incl. #6)

$

$

Not available

6

Poulan 530402879

Switch

$6.49

$

In Stock, only 3 left!

0

7

Poulan 530403886

Bolt-Carriage

$

$

Not available

8

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

9

Poulan 530404085

Tube Ass'y. w/Decal

$9.99

$

Usually ships in 3-10 days

0

10

Poulan 530403820

Button-Push

$2.49

$

In Stock, only 1 left!

0

11

Poulan 530404022

Housing Set

$

$

Not available

12

Poulan 530403835

Button-Snap

$

$

Not available

13

Poulan 530403914

Shield Ass'y.

Note: (Incl. line limiter)

$

$

Not available

14

Poulan 530403824

Guide - Edging

$

$

Not available

15

Poulan 530404086

Assy.-Motor/Impeller

$

$

Not available

16

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

17

Poulan 530401958

Spring-Return

$4.99

$

In Stock, Qty 6

0

18

Poulan 952701663

Assy.-W/E Spool (TNG-V)

$

$

Not available

18

Poulan 530086743

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530404067

Decal-Warning

Note: Not Shown

$

$

Not available

18

Poulan 530404008

Decal-Housing (right)

Note: Not Shown

$

$

Not available

18

Poulan 530404009

Decal-Housing (left)

Note: Not Shown

$

$

Not available
