RT5000 A (FA2A) - Honda Multi-Purpose Tractor, Made in Japan (SN: FA2A-5000033 - FA2A-9999999) WIRE HARNESS Parts Diagram

Multi-Purpose Tractor, Made in Japan

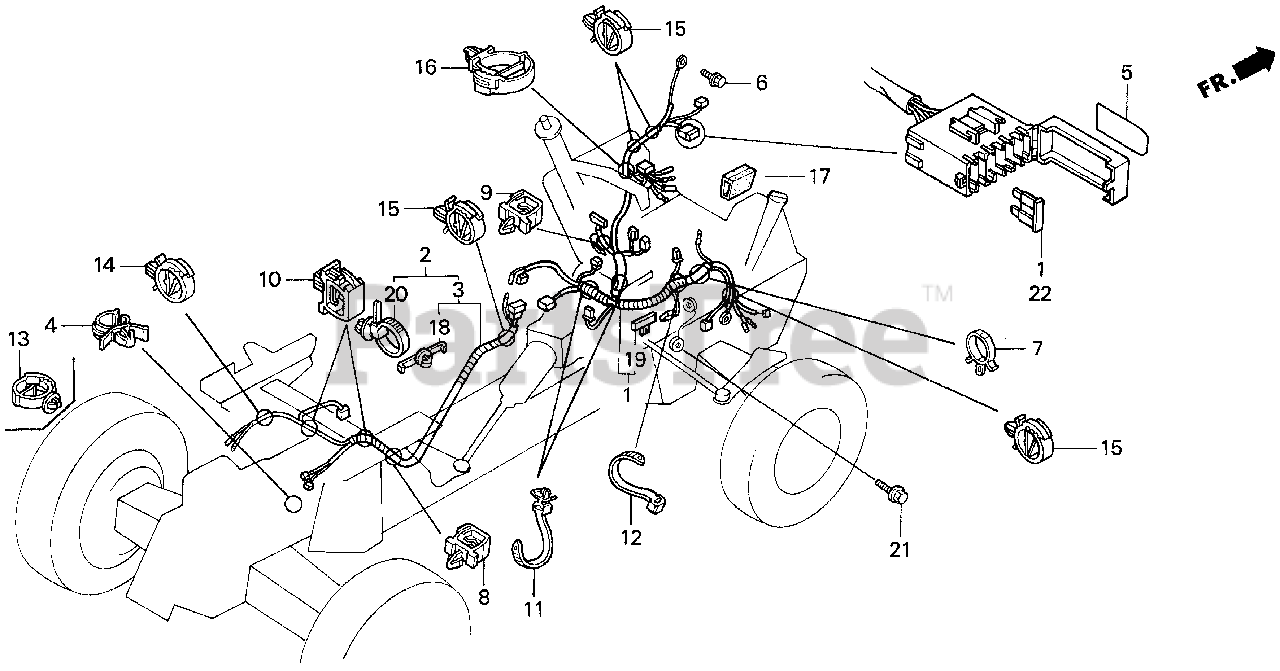

WIRE HARNESS Parts Diagram

  • Title

1

Honda 32100-752-630

WIRE HARNESS ASSY., MAIN

$425.99

$

Usually ships in 3-6 days

0

3

Honda 32120-752-630

SUB-WIRE HARNESS ASSY., RR.

$

$

Not available

4

Honda 32171-GJ1-003

CLIP, WIRE HARNESS

Note: Use up to Frame SN 5002017.

$5.49

$

Usually ships in 3-6 days

0

4

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

Note: Use from Frame SN 5002018.

$12.99

$

Usually ships in 3-6 days

0

5

Honda 87118-752-630

MARK, BRANCH FUSE (ENGLISH)

$

$

Not available

6

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

7

Honda 90617-750-003

CLIP, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90650-SB2-003

CLIP, WIRE HARNESS (10MM)

$8.99

$

Usually ships in 3-6 days

0

9

Honda 90651-SB2-003

CLIP, WIRE HARNESS (13MM) (GRAY)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 90651-750-801

CLIP, HARNESS (10MM)

$3.99

$

In Stock, only 3 left!

0

11

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90674-WA8-003

BAND, CABLE (120MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

15

Honda 90684-ZA0-601

CLIP, HARNESS

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

$9.99

$

Usually ships in 3-6 days

0

17

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

$6.99

$

Usually ships in 3-6 days

0

18

Honda 91507-752-003

CLIP, WIRE HARNESS (50MM) (GRAY)

$13.99

$

Usually ships in 3-6 days

0

19

Honda 91508-752-003

CLIP, WIRE HARNESS

$9.49

$

Usually ships in 3-6 days

0

21

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 98200-30750

FUSE, BLADE (7.5A)

$1.99

$

Usually ships in 3-6 days

0
