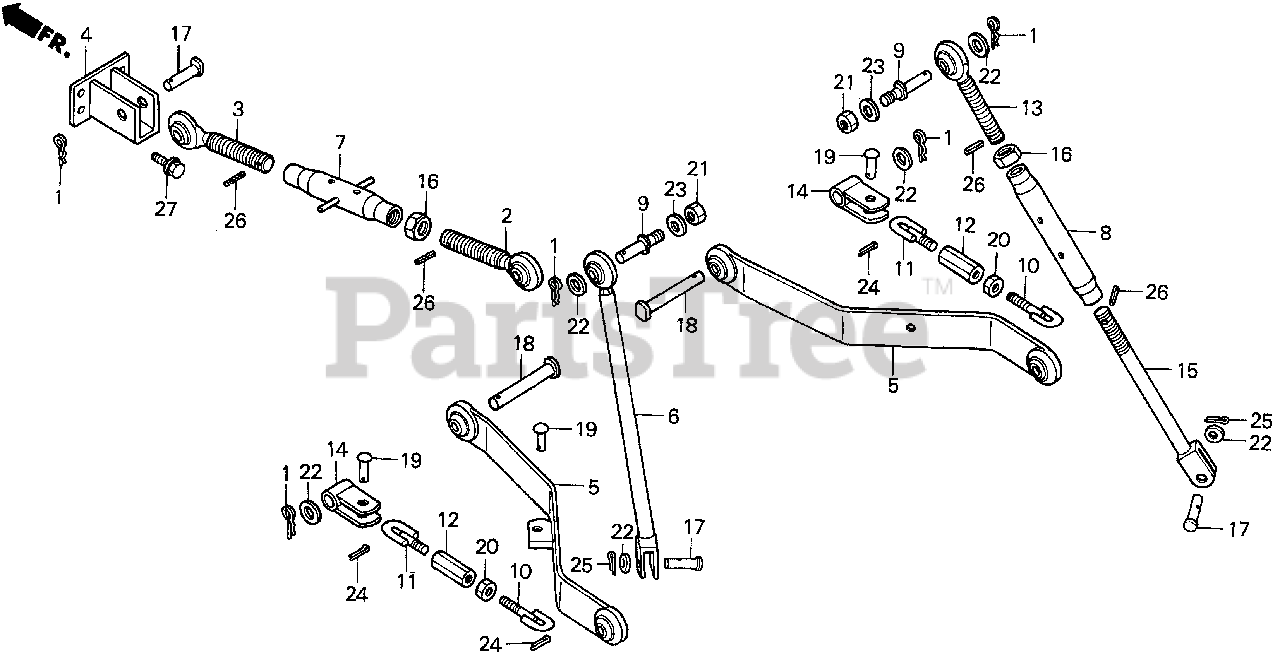

RT5000 A (FA2A) - Honda Multi-Purpose Tractor, Made in Japan (SN: FA2A-5000033 - FA2A-9999999) THREE POINT HITCH (1) Parts Diagram

Multi-Purpose Tractor, Made in Japan

THREE POINT HITCH (1) Parts Diagram

  • Title
1

$4.99

$

In Stock, only 2 left!

0

2

Honda 50910-752-630

HOLDER, R. LINK (UPPER)

$

$

Not available

3

Honda 50920-752-630

HOLDER, L. LINK (UPPER)

$

$

Currently unavailable

4

Honda 50930-752-630

BRACKET, LINK (UPPER)

$

$

Not available

5

Honda 50940-752-630

LINK (LOWER)

$

$

Not available

6

Honda 50950-752-505

ROD, LIFT (LH)

$

$

Not available

7

Honda 50952-752-630

BUCKLE, LINK TURN (UPPER)

$

$

Not available

8

Honda 50953-752-630

BUCKLE, LIFT ROD TURN

$29.99

$

Usually ships in 3-6 days

0

9

Honda 50955-752-630

PIN, LIFT ROD

$

$

Not available

10

Honda 50957-752-630

BOLT A, TURN BUCKLE

$

$

Not available

11

Honda 50958-752-630

BOLT B, TURN BUCKLE

$

$

Not available

12

Honda 50959-752-630

BUCKLE, TURN

$

$

Not available

13

Honda 50960-752-630

ROD, R. LIFT (UPPER)

$76.99

$

Usually ships in 3-6 days

0

14

Honda 50963-752-630

BRACKET, TURN BUCKLE

$

$

Not available

15

Honda 50970-752-630

ROD, R. LIFT (LOWER)

$

$

Currently unavailable

16

Honda 90303-752-630

NUT, HEX. (20MM)

$

$

Not available

17

Honda 90706-752-630

PIN, LINK (UPPER)

$

$

Not available

18

Honda 90753-752-630

PIN, LINK (LOWER)

$

$

Not available

19

Honda 90757-752-630

PIN, TURN BUCKLE

$

$

Not available

20

Honda 94001-12080-0S

NUT, HEX. (12MM) Use up to Frame SN 5002482.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 94002-12280-0S

NUT, HEX. (12MM) Use from Frame SN 5002483.

$

$

Currently unavailable

21

Honda 94002-16080-0S

NUT, HEX. (16MM)

$

$

Not available

22

Honda 94101-16800

WASHER, PLAIN (16MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94111-16800

WASHER, SPRING (16MM)

$

$

Currently unavailable

24

Honda 94201-30180

PIN, SPLIT (3.0X18)

$1.49

$

In Stock, Qty 20+

0

25

Honda 94201-40250

PIN, COTTER (4X25)

$1.49

$

In Stock, Qty 9

0

26

Honda 94305-40202

PIN, SPRING (4X20)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0
