RT5000 A (FA2A) - Honda Multi-Purpose Tractor, Made in Japan (SN: FA2A-5000033 - FA2A-9999999) REAR WHEEL Parts Diagram

Multi-Purpose Tractor, Made in Japan

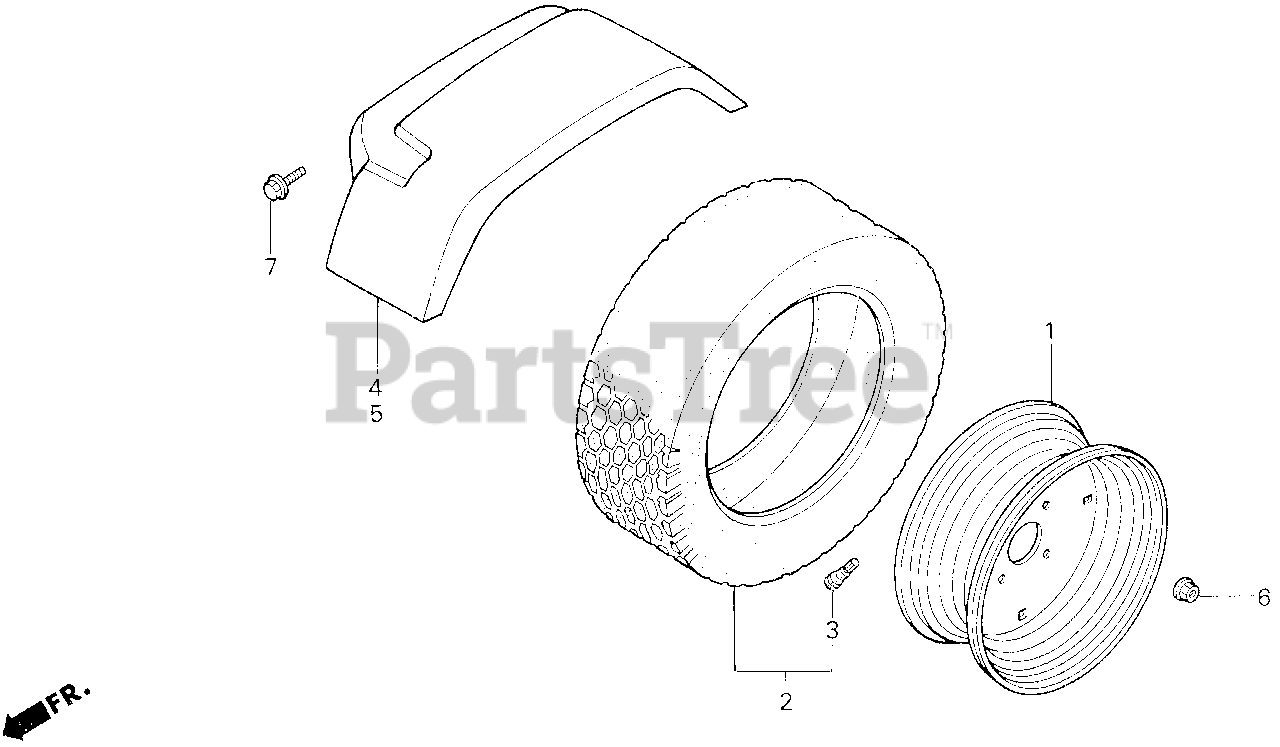

REAR WHEEL Parts Diagram

  • Title

1

Honda 42720-752-631ZA

WHEEL (14X6JJ)

$

$

Not available

2

Honda 42750-752-631

TIRE ASSY., RR. (24X8.00-14) (2PR) (OHTSU)

$291.99

$

Usually ships in 3-6 days

0

3

Honda 42753-VM0-003

VALVE, RIM

$14.99

$

Usually ships in 3-6 days

0

4

Honda 63402-752-631ZA

FENDER, R. RR. *R136* (DIANA RED)

$

$

Currently unavailable

5

Honda 63403-752-630ZA

FENDER, L. RR. *R136* (DIANA RED)

Note: Use up to Frame SN 5002482.

$

$

Currently unavailable

5

Honda 63403-752-631ZA

FENDER, L. RR. *R136* (DIANA RED)

Note: Use from Frame SN 5002483.

$

$

Not available

6

Honda 90304-752-000

NUT, WHEEL (12MM)

$6.49

$

Usually ships in 3-6 days

0

7

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
