RT5000 A (FA2A) - Honda Multi-Purpose Tractor, Made in Japan (SN: FA2A-5000033 - FA2A-9999999) FRONT P.T.O. CLUTCH Parts Diagram

Multi-Purpose Tractor, Made in Japan

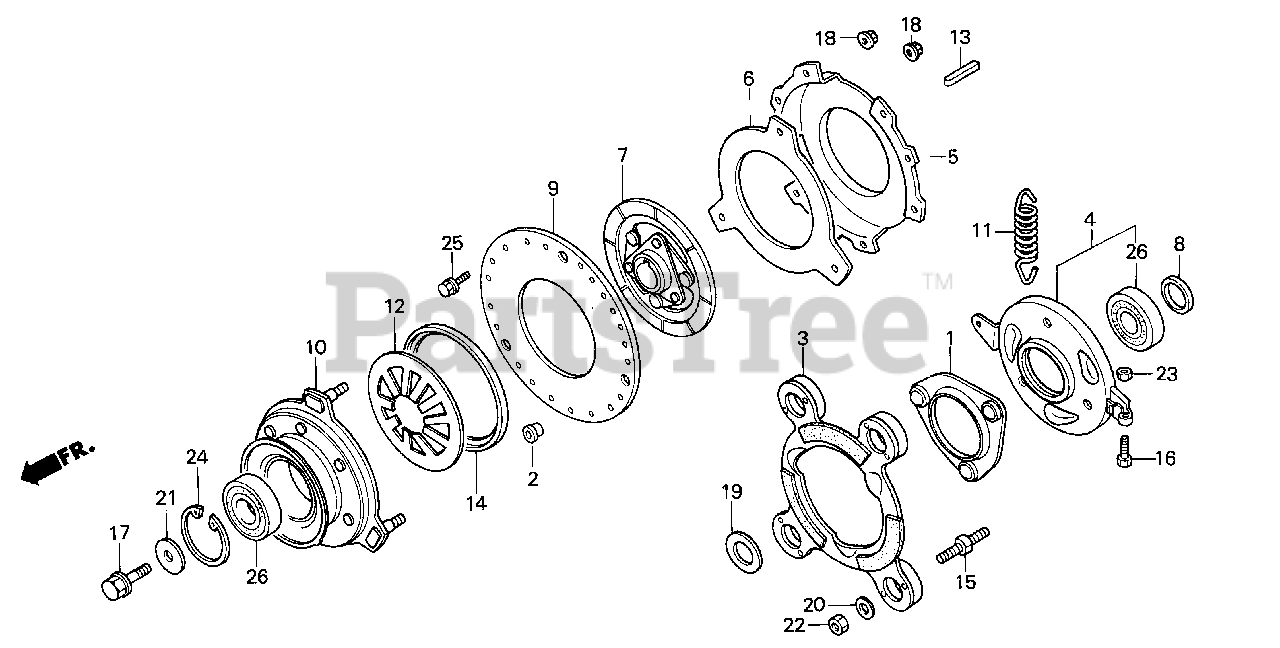

FRONT P.T.O. CLUTCH Parts Diagram

  • Title
1

Honda 22535-750-800

RETAINER, FR. BALL

$

$

Not available

2

Honda 22572-750-000

BUSH, RR. CLUTCH

$

$

Not available

3

Honda 75100-750-000

SEE PART DETAILS - SUP; BRAKE ASSY.
(Superseded to 75100-750-010)

$

$

Not available

3

Honda 75100-750-010

SEE PART DETAILS - PRI; BRAKE ASSY.

$

$

Not available

4

Honda 75110-752-630

PLATE, BALL CONTROL

$

$

Not available

5

Honda 75131-750-003

PLATE, BRAKE

$

$

Not available

6

Honda 75132-750-003

PLATE, CLUTCH SIDE

$

$

Not available

7

Honda 75140-752-631

DISK, FRICTION

$131.99

$

Usually ships in 3-6 days

0

8

Honda 75146-750-000

COLLAR, DISTANCE (25MM)

$8.49

$

In Stock, only 1 left!

0

9

Honda 75150-750-003

PLATE, CLUTCH

$

$

Not available

10

Honda 75160-752-631

PULLEY, DRIVEN

$

$

Not available

11

Honda 75182-750-000

SPRING, CLUTCH RETURN

$

$

Not available

12

Honda 75183-752-630

SPRING, CLUTCH

$

$

Not available

13

Honda 75184-752-B00

KEY (7X7X30)

$

$

Not available

14

Honda 75185-752-630

SEAT, CLUTCH SPRING

$

$

Not available

15

Honda 75186-750-000

BOLT, SPECIAL

$

$

Not available

16

Honda 90003-752-630

BOLT, HEX. (8X30)

$

$

Not available

17

Honda 90013-360-000

BOLT, SPECIAL (8X25)

$9.99

$

In Stock, only 1 left!

0

18

Honda 90301-473-003

NUT, U (6MM)

$5.99

$

Usually ships in 3-6 days

0

19

Honda 90431-752-000

SHIM (25X38X1.3) (B)

$

$

Not available

19

Honda 90433-752-000

SHIM (25X38X1.4) (D)

$

$

Not available

19

Honda 90435-752-000

SHIM (25X38X1.5) (F)

$

$

Not available

19

Honda 90437-752-000

SHIM (25X38X1.6) (H)

$

$

Not available

19

Honda 90441-752-630

SHIM (25X38X1.1) (L)

$

$

Not available

19

Honda 90442-752-630

SHIM (25X38X1.2) (M)

$

$

Not available

20

Honda 90443-MF5-000

WASHER, THRUST (8.5)

$

$

Not available

21

Honda 90473-842-000

WASHER (8MM)

$1.99

$

In Stock, only 4 left!

0

22

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

23

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$2.99

$

In Stock, only 2 left!

0

25

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0

26

Honda 96150-60050-10

BEARING, RADIAL BALL (6005UU)

$25.99

$

Usually ships in 3-6 days

0
