RT5000 A (FA2A) - Honda Multi-Purpose Tractor, Made in Japan (SN: FA2A-5000033 - FA2A-9999999) AIR CLEANER Parts Diagram

Multi-Purpose Tractor, Made in Japan

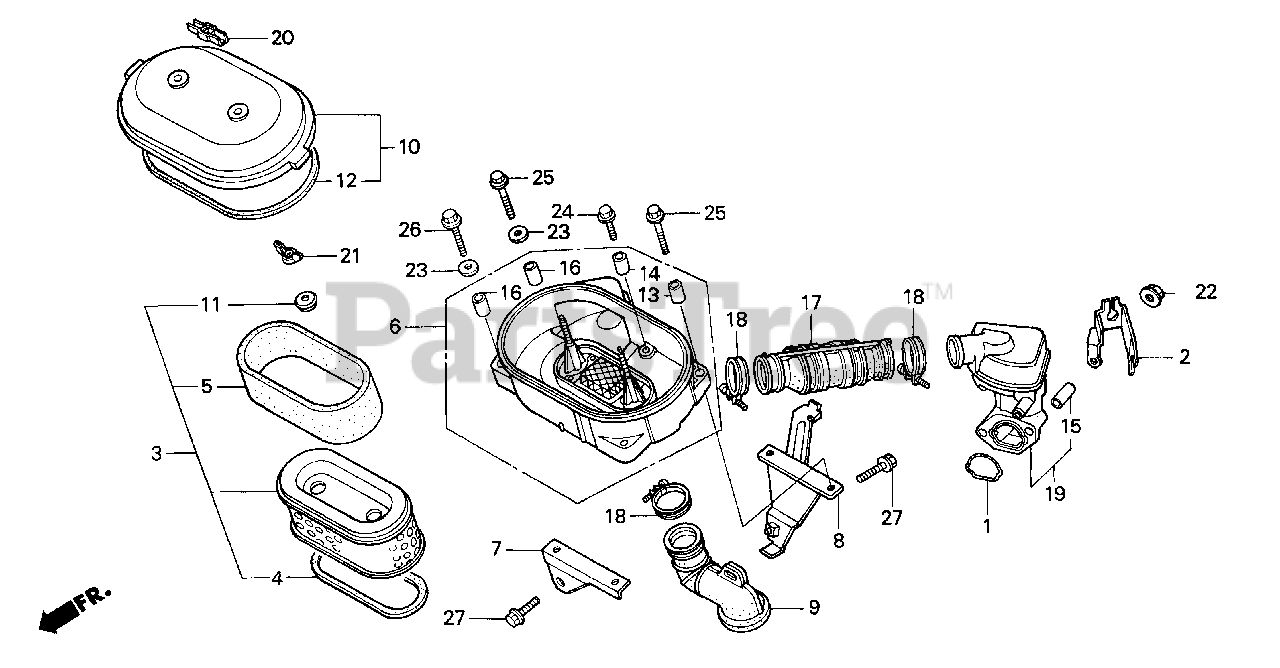

AIR CLEANER Parts Diagram

  • Title
1

Honda 16267-ZE3-791

O-RING, AIR CLEANER

$

$

Not available

2

Honda 16595-ZE3-790

HOLDER, CHOKE CABLE

$10.99

$

Usually ships in 3-6 days

0

3

Honda 17210-ZE3-791

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE3-506)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

5

Honda 17218-ZE3-506

SEE PART DETAILS - PRI; FILTER (OUTER)

$

$

Not available

5

Honda 17218-ZE3-791

SEE PART DETAILS - SUP; FILTER (OUTER)

$

$

Not available

6

Honda 17220-ZE3-791

HOUSING, AIR CLEANER

$

$

Currently unavailable

7

Honda 17221-ZE3-791

STAY, AIR CLEANER (A)

$

$

Not available

8

Honda 17222-ZE3-791

STAY, AIR CLEANER (B)

$

$

Not available

9

Honda 17225-ZE3-790

GUIDE, AIR IN.

$

$

Not available

10

Honda 17230-ZE3-791

COVER, AIR CLEANER

$

$

Not available

11

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.99

$

In Stock, Qty 15

0

12

Honda 17233-ZE3-791

GASKET, AIR CLEANER COVER

$14.99

$

Usually ships in 3-6 days

0

13

Honda 17236-ZE3-791

COLLAR C, AIR CLEANER

$

$

Not available

14

Honda 17237-ZE3-791

COLLAR A, AIR CLEANER

$

$

Not available

15

Honda 17238-ZE3-791

COLLAR, AIR CLEANER

$5.49

$

Usually ships in 3-6 days

0

16

Honda 17239-ZE3-791

COLLAR B, AIR CLEANER

$

$

Not available

17

Honda 17251-ZE3-790

TUBE, AIR CLEANER CONNECTING

$

$

Not available

18

Honda 17256-MM8-000

SEE PART DETAILS - SUP; BAND B, CONNECTING TUBE

$

$

Currently unavailable

18

Honda 17257-HB3-000

SEE PART DETAILS - SUP; BAND B, AIR CLEANER

$

$

Not available

19

Honda 17410-ZE3-790

ELBOW, AIR CLEANER

$

$

Not available

20

Honda 90203-PB2-000

NUT, AIR CLEANER COVER (DACRO COATING)

$10.99

$

In Stock, only 3 left!

0

21

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

22

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 16

0

24

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 9

0

25

Honda 95700-06028-00

BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0

26

Honda 95701-06032-00

BOLT, FLANGE (6X32)

$2.49

$

In Stock, Qty 5

0

27

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, only 3 left!

0
