RT180 BR - Electrolux/AYP Tiller MAIN FRAME Parts Diagram

Tiller

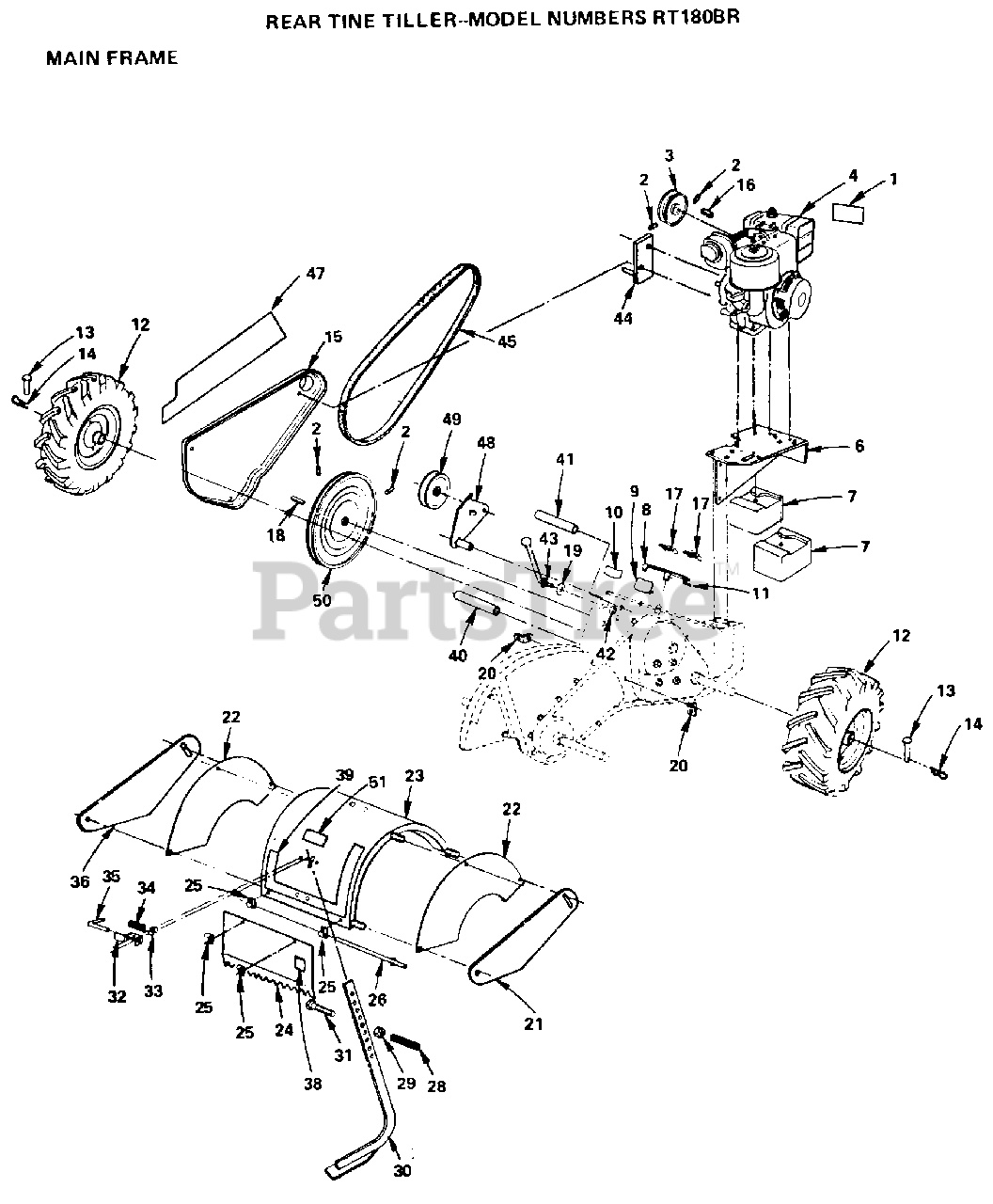

MAIN FRAME Parts Diagram

  • Title

1

Electrolux/AYP 102718X

NLA

$

$

Not available

2

Electrolux/AYP 23230506

SET SCREW
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 4368J

SHEAVE CRT
(Superseded to 532004368)

$14.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 190402

ENGINE - 8 HP

$

$

Not available

6

Electrolux/AYP 674A295

NLA

$

$

Not available

7

Electrolux/AYP 8450J

COUNTERWEIGHT CRT
(Superseded to 532008450)

$

$

Not available

8

Electrolux/AYP 100094K

LEVER ASSY T

$

$

Not available

9

Electrolux/AYP 8700J

PANEL TI
(Superseded to 532008700)

$4.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 100108K

DECAL, SHIFT INDICATOR

$

$

Not available

10

Electrolux/AYP 104337X

NLA

$

$

Not available

11

Murray 1572H

SUB= 2882J

$

$

Not available

12

Electrolux/AYP 5014J

WHEEL TI
(Superseded to 532005014)

$169.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 5015J

TIRE TI
(Superseded to 532005015)

$145.99

$

In Stock, only 2 left!

0

Electrolux/AYP 795R

SUB= 65139

$

$

Not available

13

Electrolux/AYP 4929H

RIVET.PAN HD.1.75
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

15

Electrolux/AYP 102818X358

SUB= 102818X505

$

$

Not available

16

Electrolux/AYP 4914H

KEY TI
(Superseded to 532004914)

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

18

Electrolux/AYP 2649M

KEY T
(Superseded to 532002649)

$6.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 19131414

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 8386J

TINE SHLD BRKT TI
(Superseded to 532008386)

$

$

Not available

21

Electrolux/AYP 104102X358

SUB= 108710X505

$

$

Not available

22

Electrolux/AYP 104084X358

SUB= 104084X505

$

$

Not available

23

Electrolux/AYP 104178X358

SUB= 104178X505

$

$

Not available

24

Electrolux/AYP 102713X358

SUB= 102713X505

$

$

Not available

25

Electrolux/AYP 4440J

HINGE CRT
(Superseded to 532004440)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 100247K

PIN HINGE CRT

$

$

Not available

28

Electrolux/AYP 8389J

GRIP TI
(Superseded to 532008389)

$

$

Not available

29

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

30

Electrolux/AYP 674A299

STAKE ASSY CRT

$

$

Not available

31

Electrolux/AYP 74930656

BOLT

$

$

Not available

32

Electrolux/AYP 8392J

LATCH BRACKET TI
(Superseded to 532008392)

$5.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 8394J

SPRING TI
(Superseded to 532008394)

$9.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 8393J

STAKE PIN TI
(Superseded to 532008393)

$31.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 104087X358

SUB= 108711X505

$

$

Not available

38

Electrolux/AYP 104476X

NLA

$

$

Not available

38

Electrolux/AYP 104816X

NLA

$

$

Not available

39

Electrolux/AYP 102719X

DECAL - TINE SHIELD

$

$

Not available

40

Electrolux/AYP 8382J

SPACER TI
(Superseded to 532008382)

$

$

Not available

41

Electrolux/AYP 8381J

SPACER TI
(Superseded to 532008381)

$2.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 104886X

NUT FLANGE CRT

$

$

Not available

43

Electrolux/AYP 100099L

HANDLE LOCK CRT

$

$

Not available

44

Electrolux/AYP 105349X

NLA

$

$

Not available

45

Electrolux/AYP 8377J

SUB= 138399

$

$

Not available

47

Electrolux/AYP 102720X

DECAL - BELT GUARD

$

$

Not available

48

Electrolux/AYP 105611X

SUB= 918105611X
(Superseded to 532159229)

$

$

Not available

49

Electrolux/AYP 104680X

SUB= 4371J

$

$

Not available

50

Electrolux/AYP 100473M

"SHEAVE 10"" CRT"
(Superseded to 532100473)

$

$

Not available

51

Electrolux/AYP 104949X

DECAL - DEPTH ADJUSTMENT

$

$

Not available
