RT150 CT - Electrolux/AYP Tiller, Part 2 TINE ASSEMBLY Parts Diagram

Tiller, Part 2

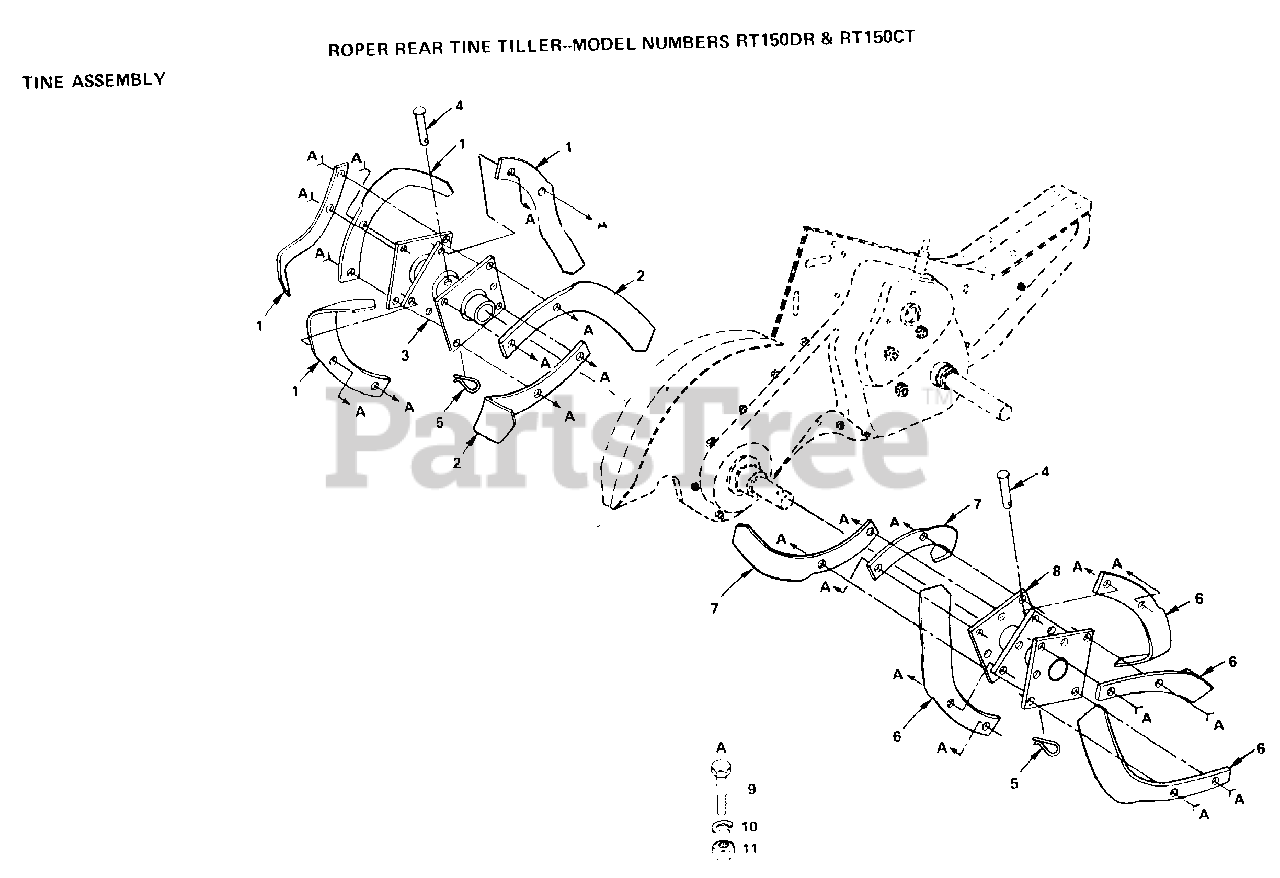

TINE ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 4459J

SUB= 6554J
(Superseded to 532004459)

$

$

Not available

2

Electrolux/AYP 6554J

"TINE.LH.12"""
(Superseded to 532006554)

$

$

Not available

3

Electrolux/AYP 102380X

TINE ASSY LH CRT

$

$

Not available

4

Electrolux/AYP 4929H

RIVET.PAN HD.1.75
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 4460J

SUB= 6555J
(Superseded to 532004460)

$

$

Not available

7

Electrolux/AYP 6555J

"TINE.RH.12"""
(Superseded to 532006555)

$

$

Not available

8

Electrolux/AYP 102382X

TINE ASSY RH CRT

$

$

Not available

9

Electrolux/AYP 74610616

BOLT
(Superseded to 874610616)

$7.49

$

In Stock, Qty 20+

0

10

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available
