RT 900 (960920029-00) - Poulan Pro Rear-Tine Tiller (2011-10) TINE SHIELD Parts Diagram

Rear-Tine Tiller

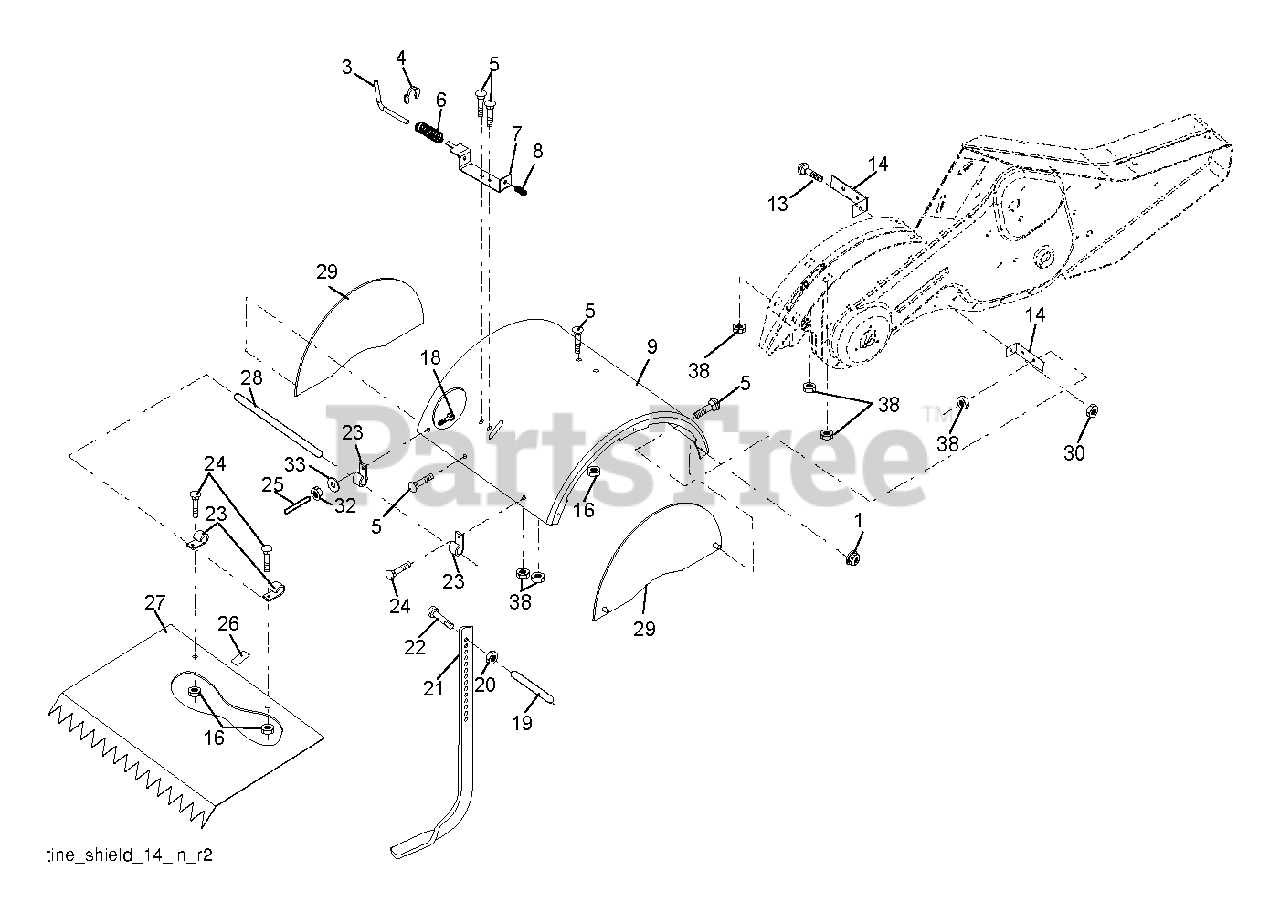

TINE SHIELD Parts Diagram

  • Title
1

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

3

Poulan 532008393

STAKE PIN TI

$31.99

$

In Stock, only 1 left!

0

4

Poulan 812000035

RING, KLIP

$7.49

$

In Stock, Qty 10

0

5

Poulan 532180847

BOLT, RDHD SQNK 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 532008394

SPRING TI

$9.49

$

In Stock, only 1 left!

0

7

Poulan 532008392

LATCH BRACKET TI

$5.99

$

Usually ships in 3-10 days

0

8

Poulan 532109230

SPRING CRT

$6.49

$

In Stock, Qty 11

0

$

$

Not available

13

Poulan 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

14

Poulan 532124311

BRACKET.TINE.SHIELD.TILLER.BLA
(Superseded to 581813501)

$13.99

$

Usually ships in 3-10 days

0

16

Poulan 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532102701

GRIP CRT

$

$

Not available

20

Poulan 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

21

Poulan 532102156

STAKE.DEPTH.16.CRT.BLACK
(Superseded to 532144437)

$28.99

$

Usually ships in 3-10 days

0

22

Poulan 874930632

BOLT.375-16

$6.99

$

In Stock, only 2 left!

0

23

Poulan 532004440

HINGE CRT

$6.49

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 532124717

(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

27

Poulan 532441813

SHIELD.TILLER.LEVELING.YELLOW

$28.99

$

Usually ships in 3-10 days

0

28

Poulan 532120588

PIN.HINGE.TILLER

$7.99

$

Usually ships in 3-10 days

0

29

Poulan 532441810

SHIELD.ASM.TILLER.SIDE.YELLOW
(Superseded to 585414301)

Note: 197761X428

$

$

Not available

30

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

32

Poulan 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

38

Poulan 873510500

(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0
