RT 900 (960920027-00) - Poulan Pro Rear-Tine Tiller (2011-01) MAINFRAME RIGHT SIDE Parts Diagram

Rear-Tine Tiller

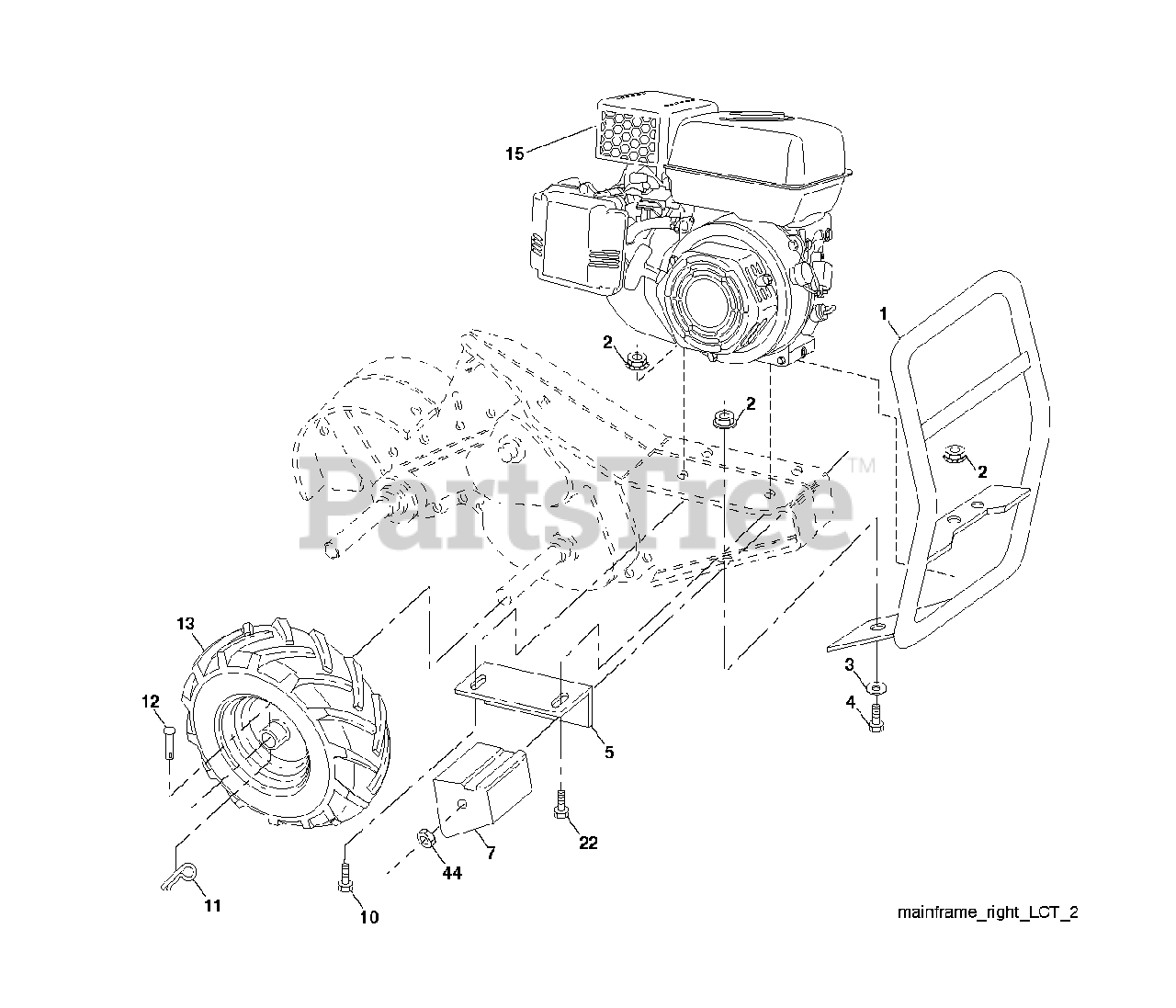

MAINFRAME RIGHT SIDE Parts Diagram

  • Title

1

Poulan 532185190

RP.BUMPER.ASM.TILLER.
(Superseded to 583879301)

$96.99

$

Usually ships in 3-10 days

0

2

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 532102332

BRACKET RH CRT
(Superseded to 581864701)

$

$

Not available

7

Poulan 532102173

COUNTERWEIGHT, RH

Note: RH

$42.99

$

Usually ships in 3-10 days

0

11

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Poulan 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

13

Poulan 532005015

TIRE.16X4-8.CHEVRON.TILLER

$145.99

$

In Stock, only 2 left!

0

--

Poulan 532005014

WHEEL.8X2.5.TILLER.SILVER

$169.99

$

Usually ships in 3-10 days

0

--

Poulan 532124718

(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

10

Poulan 874760524

BOLT
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

15

Poulan TBD

Note: ENGINE LCT MODEL PLMHK14600124P

$

$

Not available

22

Poulan 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

44

Poulan 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

--

Poulan 532441869

$

$

Not available
