RT 8 KA - Poulan Pro Rear-Tine Tiller TRANSMISSION Parts Diagram

Rear-Tine Tiller

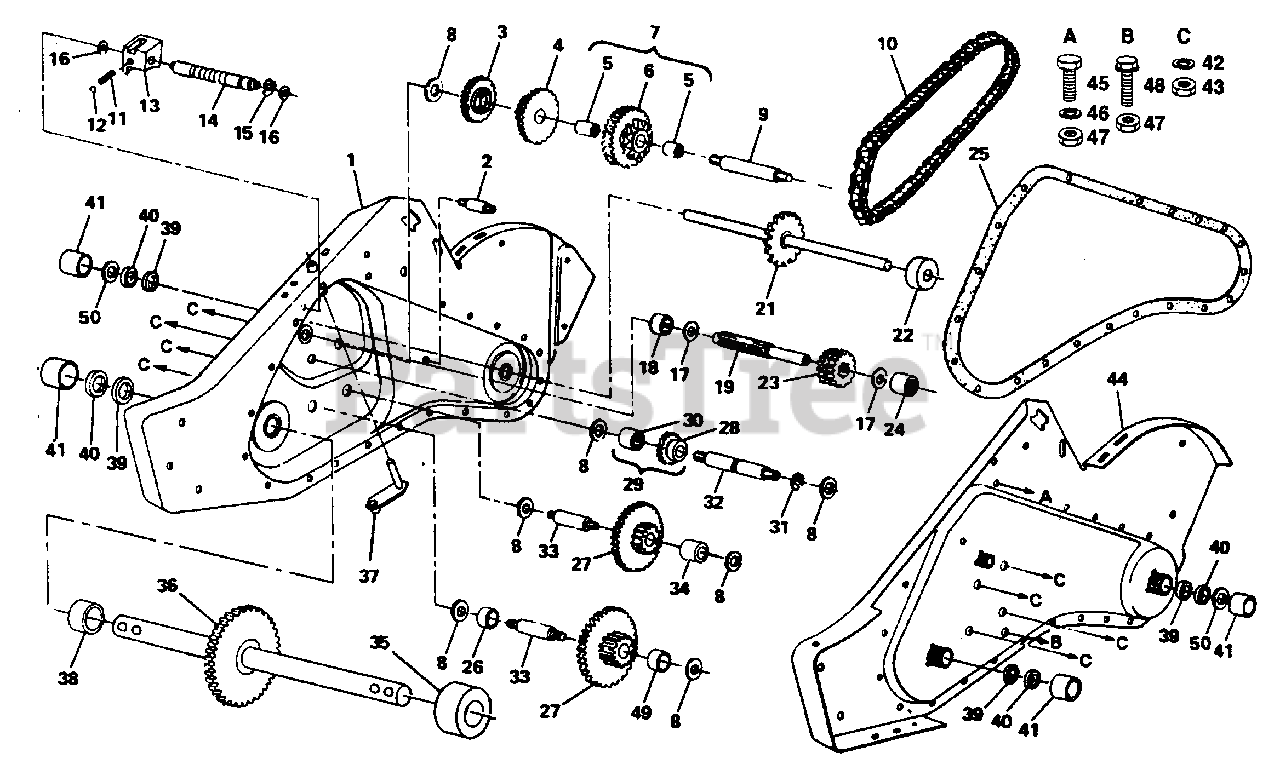

TRANSMISSION Parts Diagram

  • Title

Poulan 532142477

Transmission Assembly (AYP part number)
(Superseded to 532160370)

$910.99

$

Usually ships in 3-10 days

0

1

Poulan 532106179

Gearcase Assembly, R.H., with Bearing (Includes Key No. 18) (AYP part number)
(Superseded to 532150430)

$

$

Not available

2

Poulan 532008370

Bolt, Upset (AYP part number)
(Superseded to 8370J)

$

$

Not available

3

Poulan 532008547

Gear, Reverse (AYP part number)
(Superseded to 8547J)

$

$

Not available

4

Poulan 532008546

Gear, Cluster, Red., 1st and 2nd (AYP part number)
(Superseded to 532414031)

$

$

Not available

5

Poulan 532100413

Bearing, Needle (AYP part number)
(Superseded to 585695501)

$24.99

$

Usually ships in 3-10 days

0

6

Poulan 532144564

Sprocket Assembly, Tine (AYP part number)

$

$

Not available

7

Poulan 532144563

Sprocket Assembly with Bearings (Includes Key #6 & two of Key #5) (AYP part number)
(Superseded to 532144564)

$

$

Not available

8

Poulan 532004358

Washer (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 532008358

Shaft, Reduction, 1st (AYP part number)

$17.99

$

In Stock, only 1 left!

0

10

Poulan 532008371

Chain, Roller, 60P (AYP part number)

$66.99

$

Usually ships in 3-10 days

0

11

Poulan 532100371

Spring, Shift, Fork (AYP part number)

$7.49

$

In Stock, Qty 6

0

12

Poulan 532124697

Ball, Steel (AYP part number)
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

13

Poulan 532008353

Fork, Shift

$34.99

$

In Stock, Qty 8

0

14

Poulan 532008354

Shaft, Shift (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 812000039

Klip Ring (AYP part number)

$6.49

$

In Stock, Qty 7

0

16

Poulan 532102136

Washer, Seal (AYP part number)

$7.49

$

In Stock, only 2 left!

0

17

Poulan 532001370

Race, Bearing, Thrust, 5/8 I.D. (AYP part number)

$6.49

$

In Stock, only 2 left!

0

18

Poulan 532124792

Bearing, Needle (AYP part number)
(Superseded to 532004895)

$17.99

$

In Stock, Qty 14

0

19

Poulan 532100724

Shaft, Input (AYP part number)

$

$

Not available

21

Poulan 532105378

Shaft Assembly, Tine (AYP part number)
(Superseded to 532432060)

$121.99

$

Usually ships in 3-10 days

0

22

Poulan 532106181

Spacer 1.008 x 1-3/4 x .645 (AYP part number)

$14.99

$

Usually ships in 3-10 days

0

23

Poulan 532008359

Pinion, Input (AYP part number)

$

$

Not available

24

Poulan 532005020

Bearing, Needle (AYP part number)

$17.99

$

In Stock, Qty 5

0

25

Poulan 532008372

Gasket, Gearcase (AYP part number)

$

$

Not available

26

Poulan 532106389

Spacer .765 I.D. x 1.12 x 5/8 (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

27

Poulan 532100433

Gear, Cluster, Red., 2nd and 3rd (AYP part number)

$56.99

$

In Stock, only 1 left!

0

28

Poulan 532008357

Gear, Reverse Idler (AYP part number)

$36.99

$

Usually ships in 3-10 days

0

29

Poulan 532144562

Gear Assembly, Reverse Idler (Includes Key Numbers 28 and 30) (AYP part number)

$54.99

$

Usually ships in 3-10 days

0

30

Poulan 532006803

Bearing, Needle (AYP part number)

$10.99

$

In Stock, Qty 5

0

31

Poulan 812000040

Klip Ring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 532008356

Shaft, Reverse Idler (AYP part number)

$21.99

$

Usually ships in 3-10 days

0

33

Poulan 532100016

Shaft, Reduction, 2nd (AYP part number)

$43.99

$

Usually ships in 3-10 days

0

34

Poulan 532106392

Spacer .765 I.D. x 1-1/8 x 1-3/8 (AYP part number)
(Superseded to 106392X)

$

$

Not available

35

Poulan 532106394

Spacer, Ground Drive, L.H. (AYP part number)

$31.99

$

Usually ships in 3-10 days

0

36

Poulan 532100436

Shaft Assembly, Ground (AYP part number)

$145.99

$

In Stock, only 1 left!

0

37

Poulan 532142145

Arm Assembly, Shift

$

$

Not available

38

Poulan 532106393

Spacer, Ground Drive, R.H. (AYP part number)

$21.99

$

In Stock, only 1 left!

0

39

Poulan 532124698

Seal, Oil (AYP part number)
(Superseded to 532007393)

$6.49

$

In Stock, Qty 5

0

40

Poulan 532140576

Seal, Ring, Rubber (AYP part number)

$

$

Not available

41

Poulan 532009672

Cup, Formed (AYP part number)
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

42

Poulan 810040700

Washer, Lock 7/16 (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 873610700

Nut, Hex 7/16-20 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

44

Poulan 532109331

Gearcase Assembly, L.H., with Bearing (Includes Key Number 24) (AYP part number)
(Superseded to 532150417)

$

$

Not available

45

Poulan 874780512

Bolt, Hex Head 5/16-18 x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

46

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 873220500

Nut, Hex Head 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

48

Poulan 532100107

Screw, Whiz-Lock 5/16-18 x 4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

49

Poulan 532106391

Spacer .765 I.D. x 1.12 x 3/4 (AYP part number)

$15.99

$

Usually ships in 3-10 days

0

50

Poulan 532102144

Ring, Spiral (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

Poulan 532006066

Grease, Plastilub Number 1
(Superseded to 585517301)

$

$

Not available
