RT 8 JA - Poulan Pro Rear-Tine Tiller MAINFRAME, LEFT SIDE Parts Diagram

Rear-Tine Tiller

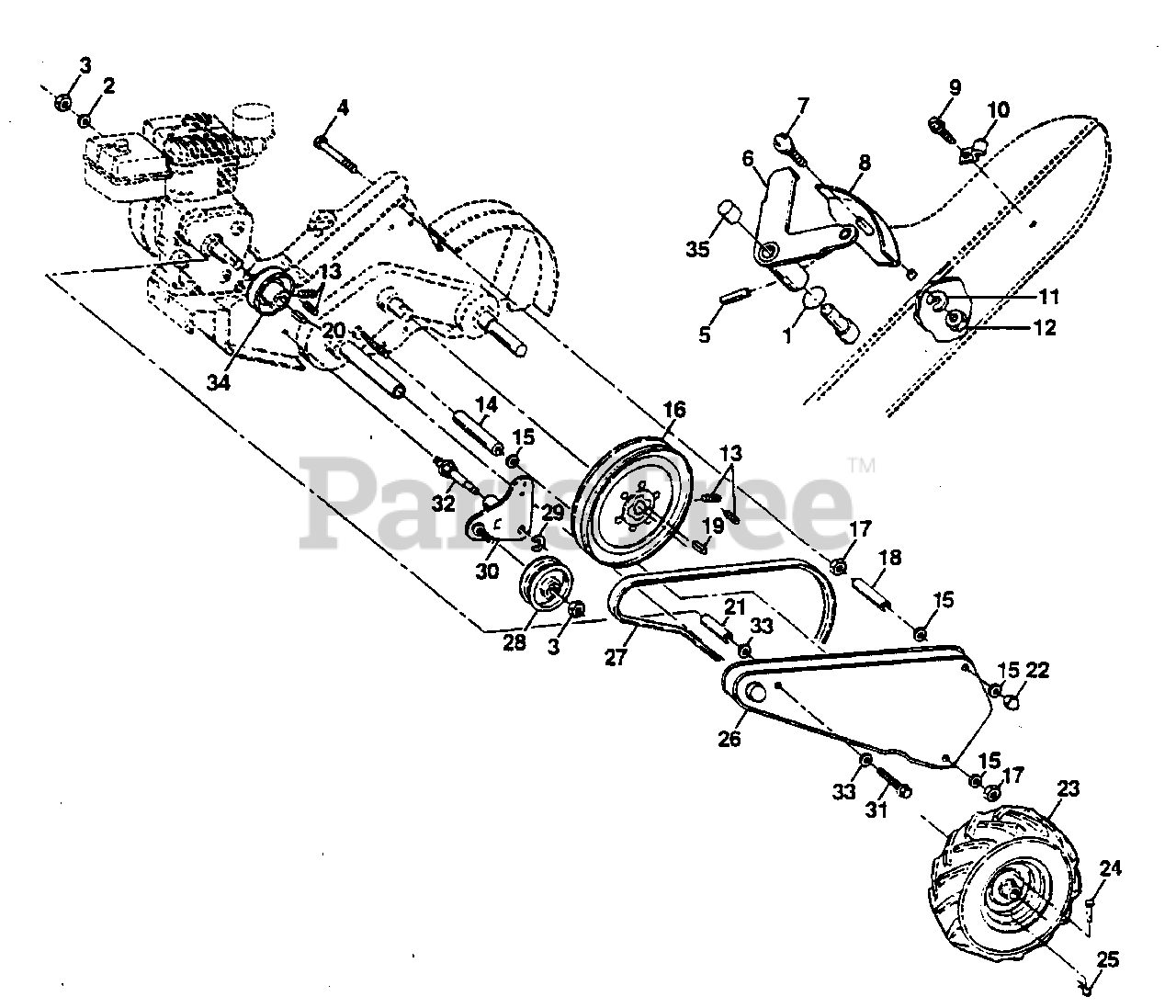

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

1

Poulan 532106160

O-Ring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

3

Poulan 873220600

Nut, Hex 3/8-16 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

4

Poulan 874930572

Bolt, Hex Head 5/16-18 x 4-1/2 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 532124963

Pin, Roll (AYP part number)
(Superseded to 532002882)

$

$

Not available

6

Poulan 532110111

Lever, Shift

$18.99

$

Usually ships in 3-10 days

0

7

Poulan 872110404

Bolt, Carriage 1/4-20 x 1/2 Grade 5 (AYP part number)

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 532008700

Plate, Shift Indicator (AYP part number)

$4.99

$

In Stock, only 1 left!

0

9

Poulan 532086777

Screw, Hex Washer Head, Slotted #10-24 x 1/2 (AYP part number)
(Superseded to 532750097)

$4.99

$

In Stock, Qty 16

0

10

Poulan 532009484

Clip (AYP part number)

$6.49

$

In Stock, only 4 left!

0

11

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

12

Poulan 873220400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Poulan 823230506

Screw, Set, Hex 5/16-18 x 3/8 (AYP part number)

$4.99

$

In Stock, only 2 left!

0

14

Poulan 532008382

Spacer, Split (AYP part number)

$

$

Not available

15

Poulan 819111116

Washer 11/32 x 11/16 x 16 Gauge (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

16

Poulan 532100473

Sheave, Transmission (AYP part number)

$

$

Not available

17

Poulan 873220500

Nut, Hex 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 532008381

Spacer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

19

Poulan 532002649

Key, Square 3/16 x 1-1/8 (AYP part number)

$6.99

$

In Stock, only 1 left!

0

20

Poulan 532004914

Key, Square (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

21

Poulan 532139155

Spacer, Split .523 x .718 x 2 (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

22

Poulan 532104214

Nut, Cap 5/16-18 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 532005015

Tire (AYP part number)

$145.99

$

In Stock, only 2 left!

0

Poulan 532005014

Rim (AYP part number)

$169.99

$

Usually ships in 3-10 days

0

Poulan 532124718

Tire Valve (AYP part number)
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

24

Poulan 532004929

Rivet, Drilled

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 532124961

Clip, Hairpin (AYP part number)
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 532144565

Guard, Belt (AYP part number)

$

$

Not available

27

Poulan 532138399

V-Belt (AYP part number)

$60.99

$

Usually ships in 3-10 days

0

28

Poulan 532104680

Pulley, Idler (AYP part number)
(Superseded to 532004371)

$

$

Not available

29

Poulan 812000032

Ring, Klip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 532105611

Bracket, Idler (AYP part number)
(Superseded to 532159229)

$

$

Not available

31

Poulan 874770844

Bolt, Hex Head 1/2-20 x 2-3/4 (AYP part number)

$

$

Not available

32

Poulan 532139401

Shaft, Idler Arm (AYP part number)

$14.99

$

In Stock, only 4 left!

0

33

Poulan 819171616

Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

34

Poulan 532004368

Sheave, Engine (AYP part number)

$14.99

$

Usually ships in 3-10 days

0

35

Poulan 532140062

Cap, Plunger (AYP part number)

$6.49

$

Usually ships in 3-10 days

0
