RT-75 (21AC482R710) - Cub Cadet Rear-Tine Tiller (2014) Tine & Drive Parts Diagram

Rear-Tine Tiller

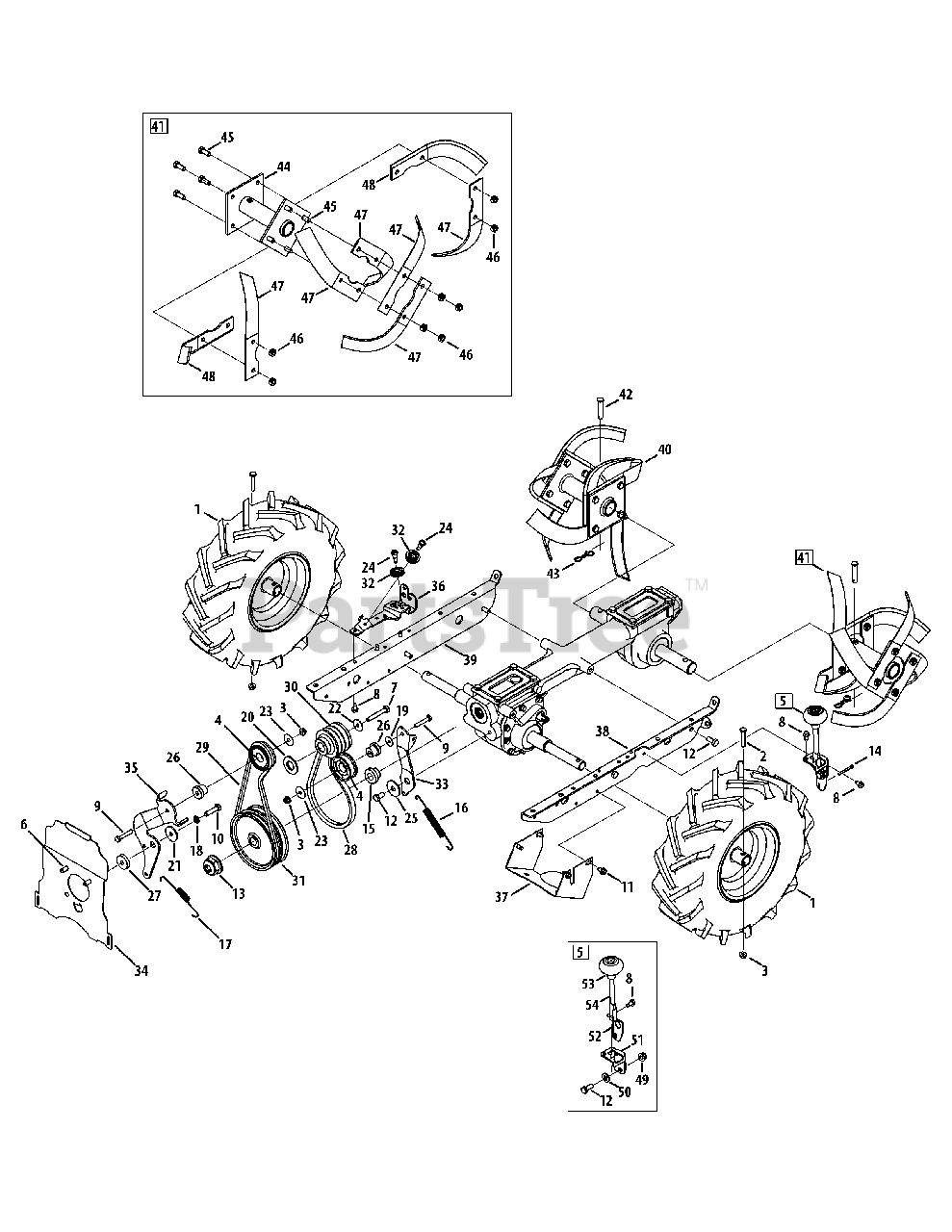

Tine & Drive Parts Diagram

  • Title

1

Cub Cadet 934-05054

Complete Wheel Assy., 14 x 4.5 x 6

$190.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 634-04735

Rim, 6.0 X 3.25

$60.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 734-1796A

Tire, 14 x 4.5 x 6

$147.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-05289

Hex Head Screw, 1/4-20

$5.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 684-04168

Idler Pulley Assembly

$38.99

$

In Stock, only 1 left!

0

5

Cub Cadet n/a

Pivot Bracket Assembly

Note: (Furnish Components only)

$

$

Currently unavailable

6

Cub Cadet 710-0170

Hex Head Screw, 5/16-24 x .625

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0331

Hex Head Screw, 3/8-24 x 2.25

$6.99

$

In Stock, Qty 7

0

8

Cub Cadet 710-0599

Self-Tapping Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0606

Hex Head Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

10

Cub Cadet 710-0672

Hex Head Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 18

0

11

Cub Cadet 710-0896

Self Tapping Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1880

Hex Head Screw, 5/16-18 x .75, Patch

$4.99

$

In Stock, Qty 11

0

13

Cub Cadet 712-0700

Nut, 9/16-18, Flange Lock

$10.99

$

In Stock, only 1 left!

0

14

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 718-04407

Hub, 5/8 Spline

$12.99

$

In Stock, Qty 20+

0

16

Cub Cadet 732-04085

Extension Spring, .480 OD X 5.00 LG

$14.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 732-04276A

Extension Spring

$9.99

$

In Stock, only 1 left!

0

18

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0173

Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0315

Washer, Flat, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

21

Cub Cadet 736-0343

Flat Washer, .330 X 1.25 X .120

$4.49

$

In Stock, Qty 7

0

22

Cub Cadet 936-0452

Bell Washer, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

23

Cub Cadet 736-3092

Flat Washer, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 9

0

24

Cub Cadet 738-04425

Shoulder Screw, .342 x .335 1/4-28

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 748-04087A

Pivot Idler Spacer

$6.49

$

In Stock, Qty 9

0

26

Cub Cadet 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

27

Cub Cadet 750-04907

Pivot Idler Spacer

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 954-04090

V-Belt, 4L x 25.375 Long

$20.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 954-04091

V-Belt, 3L x 29.125 Long

$18.99

$

In Stock, only 4 left!

0

30

Cub Cadet 756-04198A

Engine Pulley

$55.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 756-04355

Transmission Pulley

$55.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

33

Cub Cadet 786-04312

Idler Bracket, Forward

$13.99

$

In Stock, only 1 left!

0

34

Cub Cadet 786-04343-4021

Cover Plate

$16.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 786-04346

Idler Bracket, Reverse

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 786-04357-4021

Pulley Bracket
(Superseded to 786-04357A-4021)

$9.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 786-04371-4021

Pulley Shield

$18.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 786-04415B-4021

Mounting Frame, LH
(Superseded to 786-04415D-4021)

$31.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 786-04416A-4021

Mounting Frame, RH
(Superseded to 786-04416B-4021)

$31.99

$

Usually ships in 3-6 days

0

40

Cub Cadet n/a

Tine Assembly, RH

Note: (Furnish Components only)

$

$

Currently unavailable

41

Cub Cadet n/a

Tine Assembly, LH

Note: (Furnish Components only)

$

$

Currently unavailable

42

Cub Cadet 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 18

0

44

Cub Cadet 686-05005-0637

Tine Holder Assembly

$41.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 912-3009

Nut, 5/16-18, Hexlock
(Superseded to 712-3009)

$

$

Not available

47

Cub Cadet 742-04138A-0637

Tine, RH
(Superseded to 742-05064-0637)

$18.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 742-04139A-0637

Tine, LH
(Superseded to 742-05065-0637)

$18.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 748-04232

Pivot Spacer

$5.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 786-04413-0637

Pivot Wheel Mounting Bracket

$48.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 786-04412

Pivot Wheel Bracket

$84.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 720-04028

Knob

$10.99

$

In Stock, only 4 left!

0

54

Cub Cadet 747-05224

Rod

$10.99

$

Usually ships in 3-6 days

0
