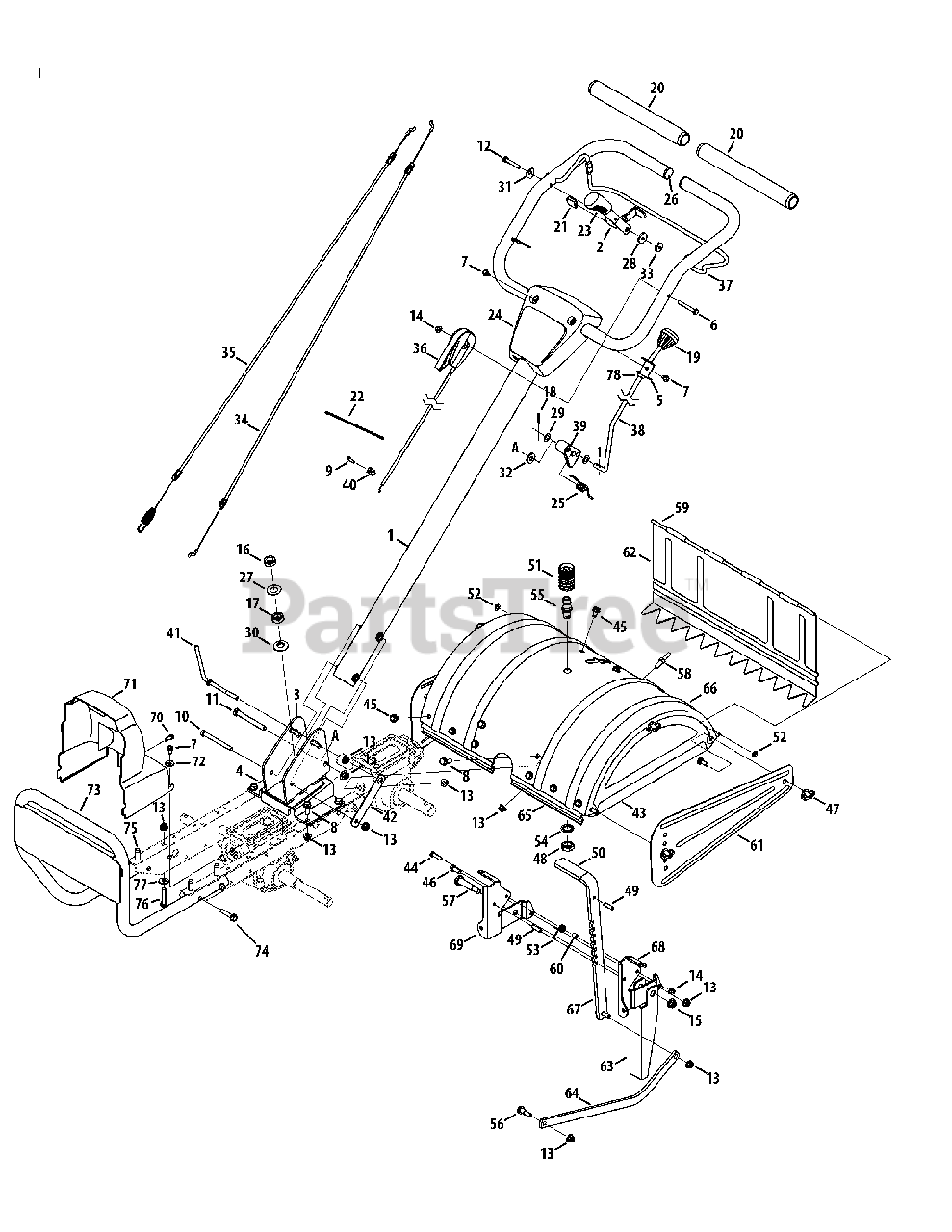

RT-75 (21AC482R710) - Cub Cadet Rear-Tine Tiller (2014) Handle & Tine Shield Parts Diagram

Rear-Tine Tiller

Handle & Tine Shield Parts Diagram

  • Title

1

Cub Cadet 649-05009-4021

Upper Handle Assembly

$119.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 686-04135-4021

Reverse Handle Assembly

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 686-04141-4021

Handle Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 686-05001-4021

Handle Bracket Assembly Base

$73.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 786-05004-4021

Control Rod Support Bracket

$

$

Currently unavailable

6

Cub Cadet 710-0501

Hex Head Screw, 1/4-20 x 2.0

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

Self-Tapping Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1238

Hex Head Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1887

Hex Head Washer, #10-32 x .75

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3056

Hex Head Screw, 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-3130

Hex Head Screw, 3/8-16 x 3.25

$10.99

$

In Stock, only 2 left!

0

12

Cub Cadet 710-3288

Hex Head Screw, 1/4-20 x 1.62

$6.99

$

In Stock, Qty 12

0

13

Cub Cadet 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 912-0413

Hex Jam Nut, 5/8-18
(Superseded to 712-0413)

$

$

Not available

17

Cub Cadet 712-3056

Jam Nut, 5/8-18

$4.99

$

In Stock, only 3 left!

0

18

Cub Cadet 914-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 17

0

19

Cub Cadet 920-0232

Knob, Shift

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet 720-0278A

Foam Handle Grip

$22.99

$

In Stock, only 3 left!

0

21

Cub Cadet 720-04173

Reverse Handle Grip
(Superseded to 920-04173)

$4.49

$

In Stock, only 3 left!

0

22

Cub Cadet 726-0317

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-04735

Handle Select

$20.99

$

In Stock, only 1 left!

0

24

Cub Cadet 731-06253A

Handle Cover
(Superseded to 731-06253B)

$23.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 732-0493

Spring Handle Adj.

$16.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 735-04105

Plug End
(Superseded to 735-04105A)

$5.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 936-0167

Flat Washer, .656 x 1.25 x .02

$6.99

$

In Stock, Qty 7

0

28

Cub Cadet 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 6

0

29

Cub Cadet 936-0314

Washer, Thrust, .375 x .7 x .03
(Superseded to 736-0314)

$

$

Not available

30

Cub Cadet 736-0317

Bell Washer, .63 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

31

Cub Cadet 936-0451

Saddle Washer, .320 x .930 x .060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

32

Cub Cadet 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

33

Cub Cadet 738-0440

Spacer, .375 x .165

$5.99

$

In Stock, only 4 left!

0

34

Cub Cadet 946-04504

Reverse Cable

$33.99

$

In Stock, only 4 left!

0

35

Cub Cadet 946-04506

Forward Cable

$36.99

$

In Stock, Qty 7

0

36

Cub Cadet 946-05084

Throttle Cable

$57.99

$

In Stock, only 1 left!

0

37

Cub Cadet 747-04789-0637

Clutch Bail
(Superseded to 747-04789A-0637)

$29.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 747-06135

Pivot Control Rod

$36.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 748-0375

Handle Link

$20.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

41

Cub Cadet 786-0340B

Handle Crank

$19.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 786-04358

Retainer Nut Bracket

$10.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 686-0044B-4021

End Cover Assembly

$84.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-0597

Hex Head Screw, 1/4-20 x 1

$3.99

$

In Stock, Qty 14

0

45

Cub Cadet 710-0604A

Hex Head Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 712-0421

Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

48

Cub Cadet 912-0641

Hex Nut, M-16 x 1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

49

Cub Cadet 715-0108

Spirol Pin

$4.99

$

In Stock, Qty 15

0

50

Cub Cadet 720-05021

Handle Grip

$5.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

52

Cub Cadet 926-0106

Cap Nut, 1/4 Rod
(Superseded to 726-0106)

$

$

Not available

53

Cub Cadet 732-04320

Torsion Spring

$4.49

$

In Stock, Qty 9

0

54

Cub Cadet 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

55

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

56

Cub Cadet 738-04320

Shoulder Screw, .405 x .435 5/16-18

$5.49

$

In Stock, only 2 left!

0

57

Cub Cadet 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 938-0849

Stop Screw

$10.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 750-05349

Spacer

$3.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 786-0090A-4021

Side Shield

$36.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 786-0113A-4021

Rear Tine Shield

$90.99

$

In Stock, only 4 left!

0

63

Cub Cadet 786-04092-4021

Reverse Stop Arm

$22.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 786-04104-4021

Drag Bar

$36.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 786-04352A-4021

Tine Shield Mounting Bracket

$32.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 786-04355A-4021

Tine Shield

$81.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 786-04356A-4021

Adjustable Depth Bar

$34.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 786-04363-4021

Tail Bracket, LH

$23.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 786-04364-4021

Tail Bracket, RH

$23.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 710-0896

Self Tapping Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 731-06529

Belt Cover

$44.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

73

Cub Cadet 686-05003-4021

Front Bumper

$79.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 710-04605A

Hex Head Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

75

Cub Cadet 710-0502A

SEMS Screw, 3/8-16

$6.99

$

In Stock, only 2 left!

0

76

Cub Cadet 710-0805

Hex Head Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

77

Cub Cadet 736-04193

Belleville Washer, .331 x .827 x .098

$6.99

$

In Stock, only 1 left!

0

78

Cub Cadet 731-1706

Control Rod Bushing

$32.99

$

Usually ships in 3-6 days

0
