RT-75 (21AC482R710) - Cub Cadet Rear-Tine Tiller (2014) Engine B&S 15T202-0009-F8 Carburetor Parts Diagram

Rear-Tine Tiller

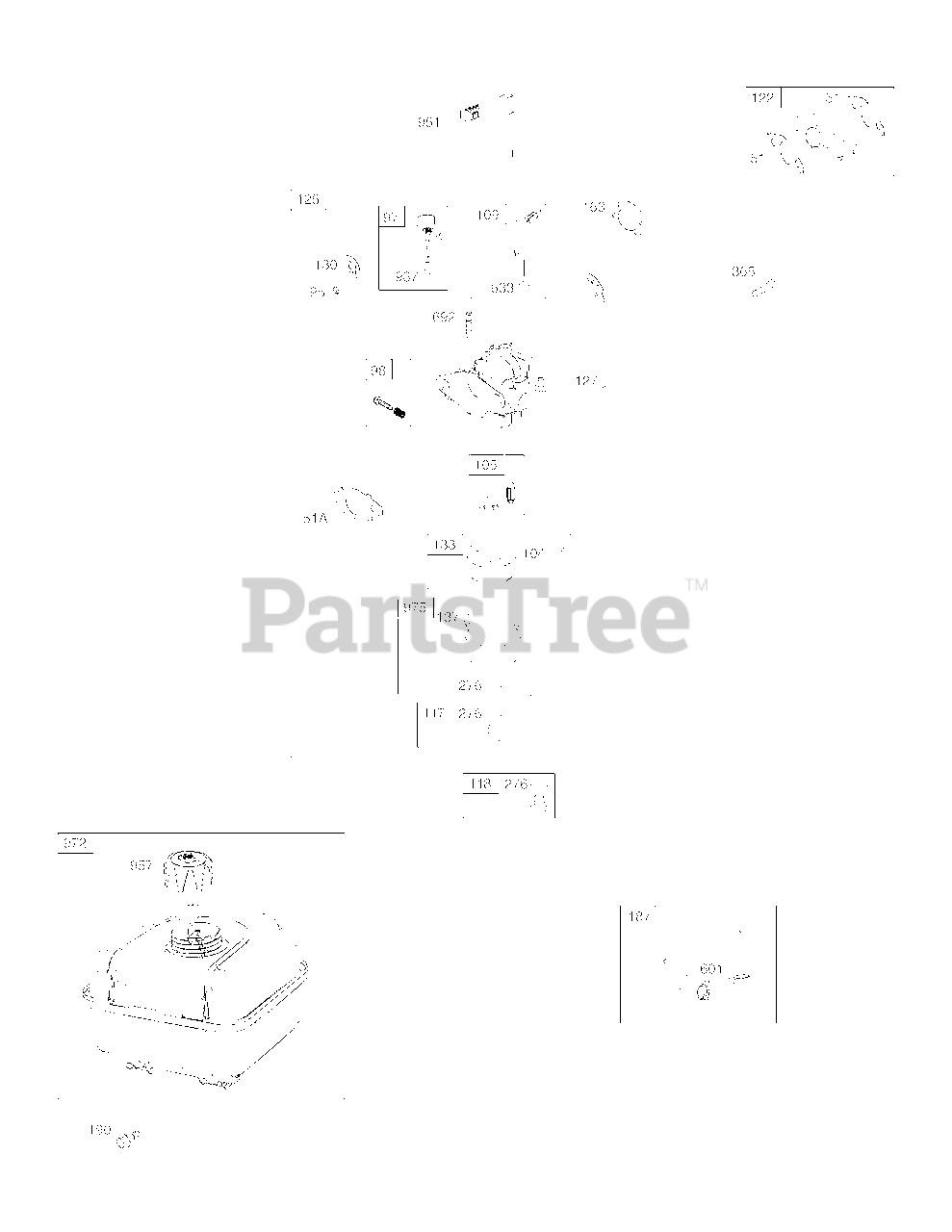

Engine B&S 15T202-0009-F8 Carburetor Parts Diagram

  • Title

1

Cub Cadet BS-794188

Cylinder Assembly

$232.99

$

Usually ships in 2-12 days

0

3

BS-299819s

Seal-Oil (Magneto Side)

$

$

Not available

5

Cub Cadet BS-791720

Head-Cylinder

$172.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-791716

Gasket-Cylinder Head

$14.99

$

In Stock, only 1 left!

0

7A

Cub Cadet BS-698210

Gasket-Cylinder Head

$8.99

$

In Stock, Qty 16

0

11

Cub Cadet BS-790632

Tube-Breather

$10.99

$

In Stock, only 2 left!

0

12

Cub Cadet BS-699485

Gasket-Crankcase

$8.99

$

In Stock, Qty 15

0

13

Cub Cadet BS-699482

Screw (Cylinder Head)

$4.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-691686

Plug-Oil Drain

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet BS-797074

Crankshaft

$179.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-699696

Cover-Crankshaft

$199.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-692550

Seal-Oil (PTO Side)

$8.99

$

Usually ships in 2-12 days

0

21

BS-281658s

Cap-Oil Fill

$

$

Not available

22

Cub Cadet BS-699478

Screw (Crankcase Cover/Sump)
(Superseded to BS-799318)

$

$

Not available

23

Cub Cadet BS-798821

Flywheel

$185.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-796335

Key-Flywheel (Steel)

$5.49

$

In Stock, Qty 20+

0

25

Cub Cadet BS-791786

Piston Assembly (Standard)

$122.99

$

In Stock, only 1 left!

0

25

Cub Cadet BS-791791

Piston Assembly (.020" Oversize)

$130.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-791787

Ring Set (Standard)

$38.99

$

In Stock, only 4 left!

0

26

Cub Cadet BS-791792

Ring Set (.020" Oversize)

$45.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-690975

Lock-Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Cub Cadet BS-690229

Pin-Piston

$17.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-791783

Rod-Connecting

$61.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-791784

Screw (Connecting Rod)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet BS-499642

Valve-Exhaust

$35.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-795443

Valve-Intake

$27.99

$

In Stock, only 1 left!

0

35

Cub Cadet BS-691304

Spring-Valve (Intake)

$5.99

$

In Stock, only 2 left!

0

36

Cub Cadet BS-691304

Spring-Valve (Exhaust)

$5.99

$

In Stock, only 2 left!

0

40

Cub Cadet BS-692194

Retainer-Valve

$5.99

$

In Stock, Qty 9

0

45

Cub Cadet BS-690977

Tappet-Valve

$7.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-693404

Camshaft

$73.99

$

In Stock, Qty 5

0

48

Cub Cadet N/A

Short Block

$

$

Currently unavailable

51

Cub Cadet BS-692555

Gasket-Intake

$3.99

$

In Stock, Qty 5

0

51A

Cub Cadet BS-791718

Gasket-Intake

$4.49

$

In Stock, Qty 7

0

58

Cub Cadet BS-693389

Rope-Starter

Note: NLA

$9.49

$

In Stock, only 2 left!

0

60

Cub Cadet BS-490652

Grip-Starter Rope

$5.49

$

In Stock, Qty 10

0

65

Cub Cadet BS-690837

Screw (Rewind Starter) (#10-32x.27)

$3.49

$

In Stock, Qty 20+

0

65A

Cub Cadet BS-699228

Screw (Rewind Starter) (Metric)

$3.99

$

In Stock, only 3 left!

0

95

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

97

Cub Cadet BS-797628

Shaft-Throttle

$28.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-797156

Kit-Idle Speed

$12.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-797622

Pin-Float Hinge

$3.99

$

In Stock, Qty 10

0

105

Cub Cadet BS-797139

Valve-Float Needle

$15.99

$

In Stock, only 4 left!

0

109

Cub Cadet BS-690023

Shaft-Choke

$28.99

$

In Stock, Qty 9

0

117

Cub Cadet BS-798652

Jet-Main (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Cub Cadet BS-799178

Jet-Main (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Cub Cadet BS-792006

Kit-Carburetor Overhaul

$28.99

$

In Stock, Qty 20+

0

122

Cub Cadet BS-795643

Spacer-Carburetor

$13.99

$

In Stock, Qty 8

0

125

Cub Cadet BS-798654

Carburetor

$92.99

$

In Stock, only 1 left!

0

127

Cub Cadet BS-797633

Plug-Welch

$4.99

$

In Stock, only 2 left!

0

127A

Cub Cadet BS-691739

Plug-Welch

$4.49

$

Usually ships in 2-12 days

0

130

Cub Cadet BS-797630

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-797136

Float-Carburetor

$14.99

$

In Stock, only 2 left!

0

137

Cub Cadet BS-797625

Gasket-Float Bowl

$7.99

$

In Stock, Qty 8

0

155

Cub Cadet BS-797442

Plate-Cylinder Head

$17.99

$

Usually ships in 2-12 days

0

161

Cub Cadet BS-790631

Base-Air Cleaner

$34.99

$

In Stock, only 4 left!

0

163

Cub Cadet BS-696024

Gasket-Air Cleaner

$5.99

$

In Stock, Qty 20+

0

180

Cub Cadet BS-795705

Tank-Fuel

$

$

Not available

187

Cub Cadet BS-791874

Line-Fuel (Formed)

$16.99

$

In Stock, only 1 left!

0

188

Cub Cadet BS-699479

Screw (Control Bracket) (M6x14.73mm)

$3.99

$

Usually ships in 2-12 days

0

188A

Cub Cadet BS-699206

Screw (Control Bracket) (M5x9.5mm)

$3.99

$

In Stock, only 3 left!

0

190

Cub Cadet BS-699220

Screw (Fuel Tank) (M6x20.62mm)
(Superseded to BS-597133)

$4.99

$

In Stock, Qty 6

0

192

Cub Cadet BS-797440

Adjustor-Rocker Arm

$13.99

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-692571

Spring-Governor (No Color)

$7.49

$

In Stock, only 1 left!

0

209A

Cub Cadet BS-691278

Spring-Governor (Platinum)

$7.99

$

In Stock, only 2 left!

0

219

Cub Cadet BS-693578

Gear-Governor

$26.99

$

Usually ships in 2-12 days

0

220

Cub Cadet BS-691724

Washer (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

222

Cub Cadet BS-793107

Bracket-Control

$45.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-794367

Lever-Governor Control

$16.99

$

In Stock, Qty 6

0

238

Cub Cadet BS-691300

Valve-Cap

$9.49

$

In Stock, Qty 9

0

271

Cub Cadet BS-694256

Lever-Control (Control Bracket)

$19.99

$

Usually ships in 2-12 days

0

276

Cub Cadet BS-797632

Washer-Sealing (Red Paper Board)

$7.99

$

In Stock, Qty 12

0

276A

Cub Cadet BS-271716

Washer-Sealing

$6.99

$

In Stock, Qty 16

0

281

Cub Cadet BS-793122

Panel-Control

$35.99

$

Usually ships in 2-12 days

0

300

Cub Cadet BS-693593

Muffler

$37.99

$

In Stock, only 1 left!

0

304

Cub Cadet BS-699598

Housing-Blower

$90.99

$

In Stock, only 4 left!

0

305

Cub Cadet BS-699481

Screw (Blower Housing)

$3.99

$

In Stock, only 3 left!

0

306

Cub Cadet BS-693610

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-699483

Screw (Cylinder Shield)

$

$

Not available

332

Cub Cadet BS-792723

Nut (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Cub Cadet BS-591101

Armature-Magneto

$67.99

$

Usually ships in 2-12 days

0

334

Cub Cadet BS-699477

Screw (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

337

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

356

Cub Cadet BS-692390

Wire-Stop

$

$

Not available

358

Cub Cadet BS-791797

Gasket Set-Engine

$67.99

$

In Stock, only 1 left!

0

365

Cub Cadet BS-699484

Screw (Carburetor)

$3.99

$

In Stock, only 2 left!

0

377

Cub Cadet BS-690979

Key-Woodruff

$3.49

$

In Stock, Qty 7

0

415

Cub Cadet BS-693463

Plug

$3.99

$

Usually ships in 2-12 days

0

445

BS-491588s

Filter-Air Cleaner Cartridge

$

$

Not available

455

Cub Cadet BS-591302

Cup-Flywheel

$11.99

$

Usually ships in 2-12 days

0

504

Cub Cadet BS-695383

Washer Set-Friction (Control Bracket)

$10.99

$

Usually ships in 2-12 days

0

505

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

522

Cub Cadet BS-798503

Plug-Dipstick/Fill

$8.99

$

Usually ships in 2-12 days

0

535

BS-493537s

Filter-Air Cleaner Foam

$

$

Not available

552

Cub Cadet BS-231078

Bushing-Governor Crank

$

$

Not available

562

Cub Cadet BS-691119

Bolt (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

584

Cub Cadet BS-791759

Cover-Breather Passage

$10.99

$

Usually ships in 2-12 days

0

585

Cub Cadet BS-791760

Gasket-Breather Passage

$9.49

$

Usually ships in 2-12 days

0

592

Cub Cadet 712-0349

Nut (Rewind Starter)

$4.99

$

In Stock, Qty 5

0

601

Cub Cadet BS-791850

Clamp-Hose (Green)

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-591301

Starter-Rewind

$56.99

$

In Stock, Qty 5

0

613

Cub Cadet BS-791972

Screw (Muffler)

$4.49

$

In Stock, only 3 left!

0

615

Cub Cadet BS-692576

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Cub Cadet BS-692547

Crank-Governor

$9.49

$

Usually ships in 2-12 days

0

619

Cub Cadet BS-699481

Screw (Cylinder Head Plate)

$3.99

$

In Stock, only 3 left!

0

621

Cub Cadet BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

632

Cub Cadet BS-693408

Spring/Link-Mechanical Governor

$8.99

$

In Stock, only 3 left!

0

633

Cub Cadet BS-693867

Seal-Choke/Throttle Shaft (Choke Shaft)

$4.99

$

In Stock, only 2 left!

0

633A

Cub Cadet BS-691321

Seal-Choke/Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

635

Cub Cadet BS-692076

Boot-Spark Plug

$5.49

$

In Stock, Qty 20+

0

663

Cub Cadet BS-699206

Screw (Control Panel)

$3.99

$

In Stock, only 3 left!

0

668

Cub Cadet BS-694257

Spacer (Control Panel)

$4.99

$

In Stock, only 1 left!

0

676

Cub Cadet BS-796956

Deflector-Muffler

$10.99

$

In Stock, only 1 left!

0

677

Cub Cadet BS-699203

Screw (Muffler Deflector)

$3.99

$

Usually ships in 2-12 days

0

684

Cub Cadet BS-793369

Screw (Breather Passage Cover)

$3.99

$

Usually ships in 2-12 days

0

692

Cub Cadet BS-797624

Spring-Detent

$5.49

$

Usually ships in 2-12 days

0

718

Cub Cadet BS-592860

Pin-Locating

$

$

Currently unavailable

741

Cub Cadet BS-695087

Gear-Timing

$18.99

$

Usually ships in 2-12 days

0

742

Cub Cadet BS-692564

Retainer-E Ring

$4.49

$

In Stock, only 2 left!

0

746

Cub Cadet BS-790278

Gear-Idler

$17.99

$

Usually ships in 2-12 days

0

773

Cub Cadet BS-694258

Retainer (Control Bracket)

Note: NLA

$4.49

$

In Stock, only 1 left!

0

830

Cub Cadet BS-797441

Stud-Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

832

Cub Cadet BS-693583

Guard-Muffler
(Superseded to BS-593953)

$45.99

$

In Stock, only 1 left!

0

836

Cub Cadet BS-699632

Screw (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

851

BS-493880s

Terminal-Spark Plug

$

$

Not available

868

Cub Cadet BS-795440

Seal-Valve

$13.99

$

In Stock, Qty 9

0

869

Cub Cadet BS-691155

Seat-Valve

$8.99

$

Usually ships in 2-12 days

0

883

Cub Cadet BS-691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 20+

0

883A

Cub Cadet BS-692237

Gasket-Exhaust

$5.49

$

In Stock, only 2 left!

0

914

Cub Cadet BS-699481

Screw (Rocker Cover) (M6x15.88mm)

$3.99

$

In Stock, only 3 left!

0

914A

Cub Cadet BS-797444

Screw (Rocker Cover) (M6x9.53mm)

$3.99

$

Usually ships in 2-12 days

0

951

Cub Cadet BS-790630

Lever-Choke

$6.99

$

In Stock, only 1 left!

0

957

Cub Cadet BS-799719

Cap-Fuel Tank

$40.99

$

In Stock, only 3 left!

0

968

Cub Cadet BS-791082

Cover-Air Cleaner

$20.99

$

In Stock, Qty 12

0

971

Cub Cadet BS-798649

Screw (Air Cleaner Base to Carburetor)

$3.99

$

In Stock, only 1 left!

0

972

Cub Cadet BS-799863

Tank-Fuel

$89.99

$

In Stock, Qty 9

0

975

Cub Cadet BS-797631

Bowl-Float

$43.99

$

In Stock, only 1 left!

0

987

Cub Cadet BS-797629

Seal-Throttle Shaft

$4.49

$

In Stock, only 1 left!

0

993

Cub Cadet BS-694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

1005

Cub Cadet BS-794273

Fan-Flywheel

$16.99

$

In Stock, Qty 8

0

1022

Cub Cadet BS-691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 6

0

1023

Cub Cadet BS-499924

Cover-Rocker

$

$

Not available

1026

Cub Cadet BS-790287

Rod-Push

$11.99

$

In Stock, only 2 left!

0

1029

Cub Cadet BS-797443

Arm-Rocker

$10.99

$

In Stock, only 1 left!

0

1034

Cub Cadet BS-691343

Guide-Push Rod

$9.99

$

In Stock, only 2 left!

0

1036

Label-Emissions

Note: (Available from a Briggs & Stratton Authorized Dealer)

$

$

Not available

1095

Cub Cadet BS-791798

Gasket Set-Valve

$33.99

$

In Stock, only 1 left!

0

1147

Cub Cadet BS-798458

Nut (Control Bracket) (Friction)

$3.99

$

Usually ships in 2-12 days

0

1329

Cub Cadet N/A

Replacement Engine

$

$

Currently unavailable
