RT-75 (21AC482R709) - Cub Cadet Rear-Tine Tiller (2017) Tine Shield Parts Diagram

Rear-Tine Tiller

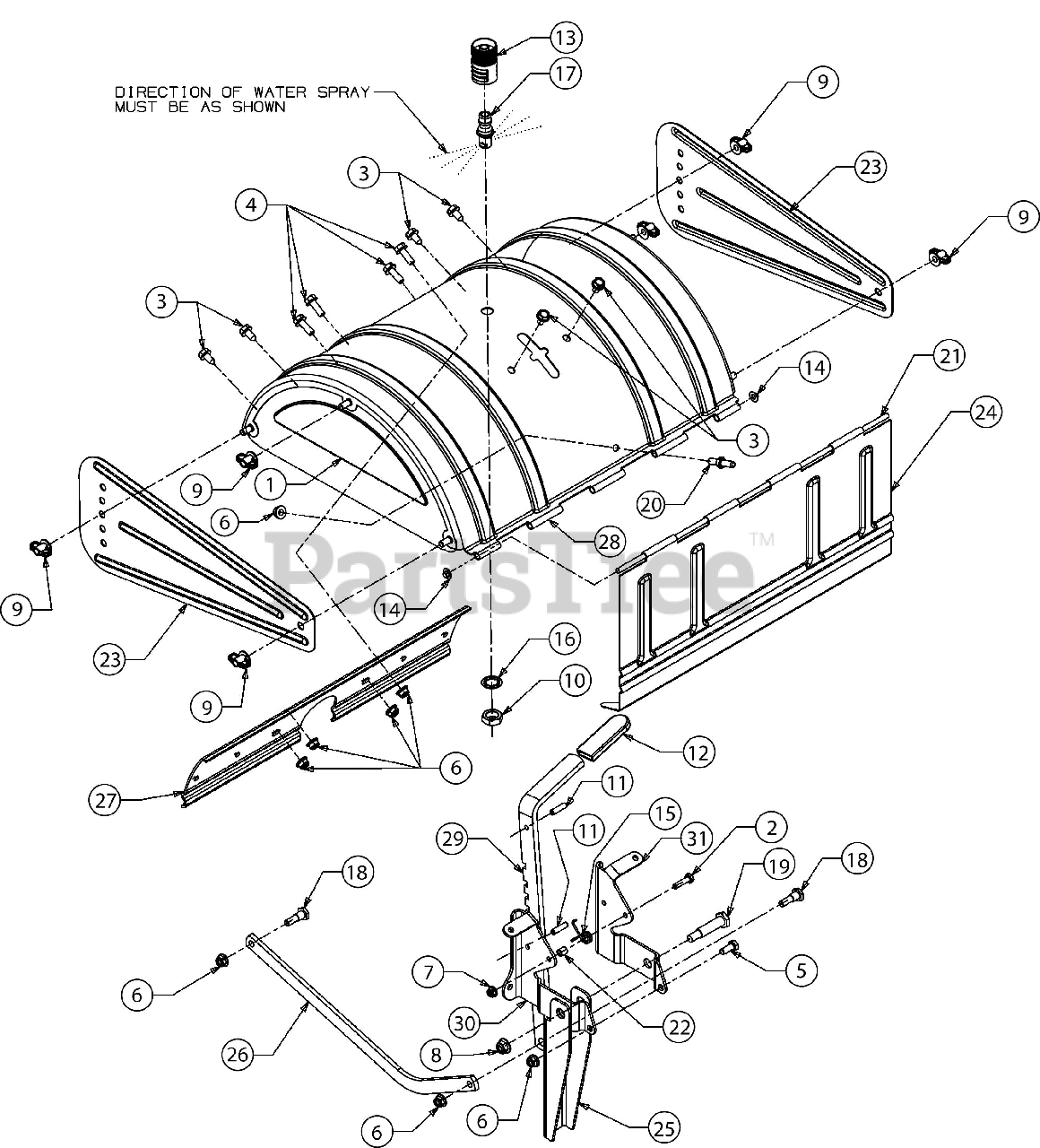

Tine Shield Parts Diagram

  • Title
1

Cub Cadet 686-0044B

END COVER ASSEMBLY

Note: (Choose Color When Ordering)

Variations

Cub Cadet 686-0044B-0638

COVER ASM-END - MTD/TROY-BILT RED (0638)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0709

COVER ASM-END - MASTERCRAFT GREEN (0709)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-4021

Cover Assembly, End Yellow - CUB YELLOW 2 (4021)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0480

COVER ASM-END - BRILLIANT GREEN (0480)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0606

COVER ASM-END - MAJESTIC ORANGE (0606)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0637

COVER ASM-END - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0640

COVER ASM-END - CO-OP GREEN (0640)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0648

COVER ASM-END - TECH GRAY (0648)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0650

COVER ASM-END - RED METALLIC (0650)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0662

COVER ASM-END - OYSTER GRAY (0662)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0691

COVER ASM-END - BLACK JACK (0691)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-0721

USE 686-0044B-4044 COVER ASM- - SEARS RED (0721)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-4015

COVER ASM-END - FIRE RED (4015)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044B-4044

COVER ASM-END - CRAFTSMAN RED (4044)

$84.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-1307

CLINCH STUD 5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 14

0

3

Cub Cadet 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0421

WING NUT 5/16-18

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 912-0641

HEX NUT
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

11

Cub Cadet 715-0108

SPRING PIN 1/4 x 1.00

$4.99

$

In Stock, Qty 15

0

12

Cub Cadet 720-05021

DEPTH BAR HANDLE GRIP

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 921-04041

WATER NOZZLE

$23.99

$

In Stock, Qty 20+

0

14

Cub Cadet 926-0106

PUSH NUT
(Superseded to 726-0106)

$

$

Not available

15

Cub Cadet 732-04320

TORSION SPRING

$4.49

$

In Stock, Qty 9

0

16

Cub Cadet 736-0225

LOCK WASHER 5/8

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 737-04003D

DECK WASH NOZZLE

$23.99

$

In Stock, Qty 6

0

18

Cub Cadet 738-04320

SHOULDER SCREW

$5.49

$

In Stock, only 2 left!

0

19

Cub Cadet 938-0533

SHOULDER BOLT .498 x 1.635:3/8-16
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 938-0849

SHOULDER SCREW

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 747-0432

TILLER FLAP ROD

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-05349

ROUND SPACER

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 786-0090A

SIDE SHIELD

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-0090A-4021

Side Shield - CUB YELLOW 2 (4021)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0606

SHIELD-SIDE - MAJESTIC ORANGE (0606)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0637

SHIELD-SIDE - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0638

SHIELD-SIDE - MTD/TROY-BILT RED (0638)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0640

SHIELD-SIDE - CO-OP GREEN (0640)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0648

SHIELD-SIDE - TECH GRAY (0648)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0650

SHIELD-SIDE - RED METALLIC (0650)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0662

SHIELD-SIDE - OYSTER GRAY (0662)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0665

SHIELD-SIDE - YARDMAN GREEN (0665)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0691

SHIELD-SIDE - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0721

USE 786-0090A-4044 SHIELD-SID - SEARS RED (0721)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-4015

SHIELD-SIDE - FIRE RED (4015)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-4044

SHIELD-SIDE - CRAFTSMAN RED (4044)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090A-0629

SHIELD-SIDE - SILVER FLAKE (0629)

$

$

Not available

$29.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 786-0113A

REAR TINE SHIELD

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-0113A-0606

SHIELD-REAR TINE - MAJESTIC ORANGE (0606)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0691

SHIELD-REAR TINE - BLACK JACK (0691)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-4021

Rear Tine Shield - CUB YELLOW 2 (4021)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet 786-0113A-0640

SHIELD-REAR TINE - CO-OP GREEN (0640)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0650

SHIELD-REAR TINE - RED METALLIC (0650)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0662

SHIELD-REAR TINE - OYSTER GRAY (0662)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0709

SHIELD-REAR TINE - MASTERCRAFT GREEN (0709)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-0721

USE 786-0113A-4044 SHIELD-REA - SEARS RED (0721)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-4015

SHIELD-REAR TINE - FIRE RED (4015)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113A-4044

SHIELD-REAR TINE - CRAFTSMAN RED (4044)

$83.99

$

Usually ships in 3-6 days

0

$73.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 786-04092

REVERSE STOP ARM

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04092-0638

Stop Arm, Rev - MTD/TROY-BILT RED (0638)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04092-0721

USE 786-04092-4044 ARM:REV:ST - SEARS RED (0721)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04092-4021

ARM:REV:STOP - CUB YELLOW 2 (4021)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04092-4044

ARM:REV:STOP - CRAFTSMAN RED (4044)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

In Stock, only 1 left!

0

26

Cub Cadet 786-04104

DEPTH DRAG BAR

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04104-0638

Depth Drag Bar, MTD Red - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 786-04104-0721

USE 786-04104-4044 BAR:DEPTH - SEARS RED (0721)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04104-4021

BAR:DEPTH DRAG - CUB YELLOW 2 (4021)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04104-4044

BAR:DEPTH DRAG - CRAFTSMAN RED (4044)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 786-04352A

TINE BRACKET

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04352A-4021

BRACKET-TINE SHIELD - CUB YELLOW 2 (4021)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04352A-0638

BRACKET-MOUNT TINE - MTD/TROY-BILT RED (0638)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04352A-0721

USE 786-04352A-4044 BRACKET-M - SEARS RED (0721)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04352A-4044

BRACKET-MOUNT TINE - CRAFTSMAN RED (4044)

$32.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 786-04355A

TINE SHIELD

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04355A-0638

SHIELD-TINE - MTD/TROY-BILT RED (0638)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04355A-4021

Tine Shield - CUB YELLOW 2 (4021)

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04355A-0721

USE 786-04355A-4044 SHIELD-TI - SEARS RED (0721)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04355A-4044

SHIELD-TINE - CRAFTSMAN RED (4044)

$76.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 786-04356A

DEPTH ADJUSTMENT BRACKET

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04356A-0638

BRACKET-DEPTH ADJU - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04356A-4021

BRACKET-DEPTH ADJUST - CUB YELLOW 2 (4021)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04356A-4044

BRACKET-DEPTH ADJU - CRAFTSMAN RED (4044)

$34.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 786-04363

TAIL BRACKET (LH)

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04363-0638

Tail Bracket, LH - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, only 1 left!

0

Cub Cadet 786-04363-0721

USE 786-04363-4044 BRACKET-TA - SEARS RED (0721)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04363-4021

BRACKET-TAIL LH - CUB YELLOW 2 (4021)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04363-4044

BRACKET-TAIL LH - CRAFTSMAN RED (4044)

$23.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 786-04364

TAIL BRACKET (RH)

Note: (Choose Color When Ordering)

Variations

Cub Cadet 786-04364-0638

BRACKET-TAIL RH - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, only 1 left!

0

Cub Cadet 786-04364-0721

USE 786-04364-4044 BRACKET-TA - SEARS RED (0721)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04364-4021

BRACKET-TAIL RH - CUB YELLOW 2 (4021)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-04364-4044

BRACKET-TAIL RH - CRAFTSMAN RED (4044)

$23.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0
