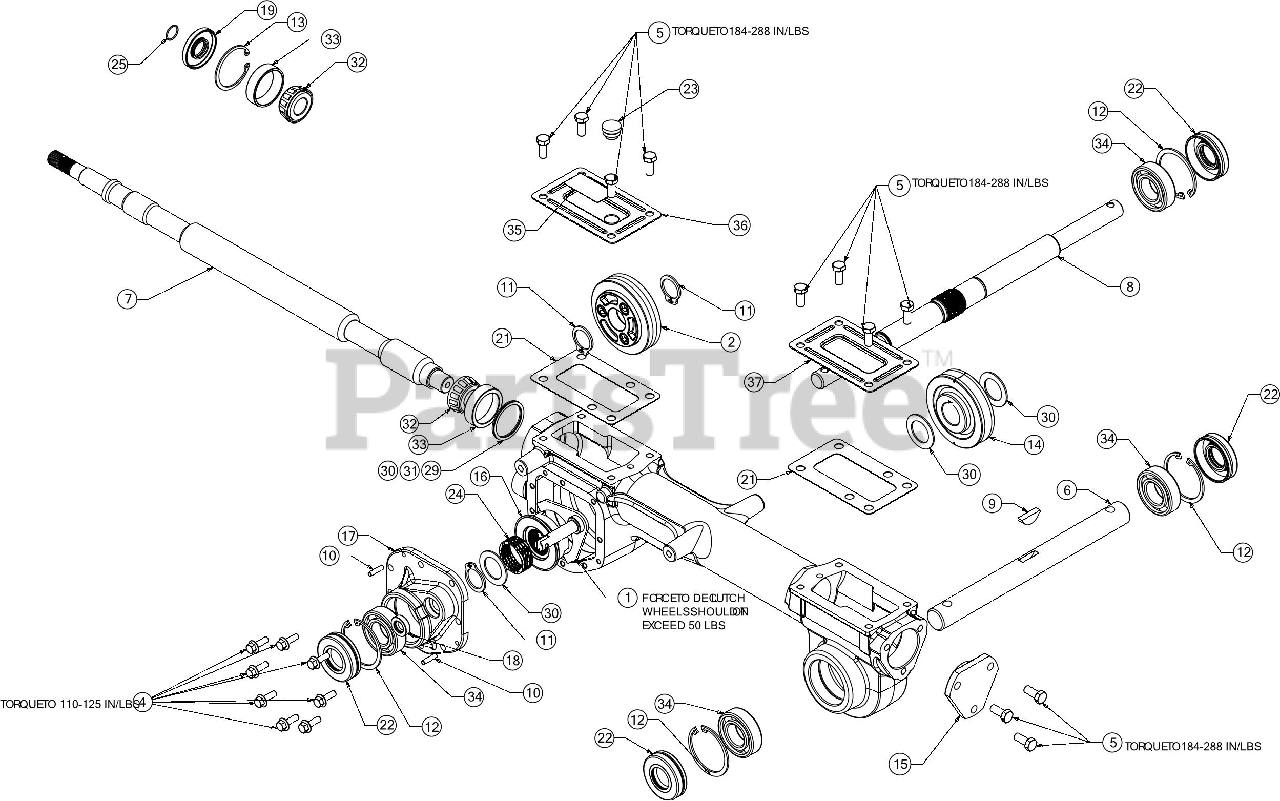

RT-75 (21AC482R709) - Cub Cadet Rear-Tine Tiller (2016) Transmission Assembly Parts Diagram

Rear-Tine Tiller

Transmission Assembly Parts Diagram

  • Title
1

Cub Cadet 611-04130

WHEEL DRIVE SHAFT YOKE ASSEMBLY

$56.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 617-04080P

WORM GEAR ASSEMBLY

$197.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04985

SCREW 5/16-18X.625

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 919-04242A

TILLER TRANSMISSION HOUSING

$317.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04666

SCREW 1/4-20 x .75 GR5

$6.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 911-04844

TILLER SHAFT

$84.99

$

In Stock, only 2 left!

0

7

Cub Cadet 911-05028

WORM DRIVE SHAFT

$122.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 911-05123

WHEEL AXLE SHAFT

$98.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 714-04059

KEY-HI PRO .25 x 1

$6.99

$

In Stock, Qty 8

0

10

Cub Cadet 915-0221

DOWEL PIN

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 716-0127

RETAINING RING

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 716-0204

RETAINING RING

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 716-04102

RETAINING RING

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 917-04381

WORM GEAR (LH) 30T

$145.99

$

In Stock, only 3 left!

0

15

Cub Cadet 918-04435

BEARING COVER

$22.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 718-04541

DISCONNECT COLLAR

$19.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 919-04493A

TILLER HOUSING COVER

$51.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 721-0393

OIL SEAL .5000 x .8750 x .2500

$12.99

$

In Stock, Qty 6

0

19

Cub Cadet 921-04030

OIL SEAL .750 SHF x 1.783

$12.99

$

In Stock, Qty 20+

0

21

Cub Cadet 921-04229

GEAR HOUSING GASKET

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet 721-04232

OIL SEAL 1.00 SHF x 2.00 BORE

$16.99

$

In Stock, Qty 20+

0

23

Cub Cadet 721-04271

RUBBER OIL PLUG

$5.49

$

In Stock, Qty 11

0

24

Cub Cadet 732-04603

WHEEL DRIVE SPRING

$11.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 732-0614

WIRE RING

$6.49

$

In Stock, only 1 left!

0

26

Cub Cadet 736-04305

FLAT WASHER 1.500X1.750X.062

$3.99

$

In Stock, Qty 13

0

27

Cub Cadet 736-04306

FLAT WASHER 1.500X1.750X.005

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-04307

FLAT WASHER 1.500X1.750X.030

$4.49

$

In Stock, only 3 left!

0

29

Cub Cadet 736-04308

FLAT WASHER 1.500X1.750X0.010

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0745

WASHER 1.010X1.560X.060

$12.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 941-04298

BEARING CONE

$16.99

$

In Stock, Qty 18

0

33

Cub Cadet 941-04299

BEARING CUP

$6.99

$

In Stock, Qty 20+

0

34

Cub Cadet 741-3114

BALL BEARING

$26.99

$

In Stock, Qty 20+

0

35

LABEL

Note: (Not Serviceable)

$

$

Not available

36

Cub Cadet 786-04366

TRANSMISSION COVER

$21.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 786-04392

TRANSMISSION COVER
(Superseded to 786-04392-0637)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-06037

TRANSMISSION ASSEMBLY

Note: (Not Shown)

$1009.99

$

Usually ships in 3-6 days

0
