RT-75 (21AC482R709) - Cub Cadet Rear-Tine Tiller (2016) Tine Shield Assembly Parts Diagram

Rear-Tine Tiller

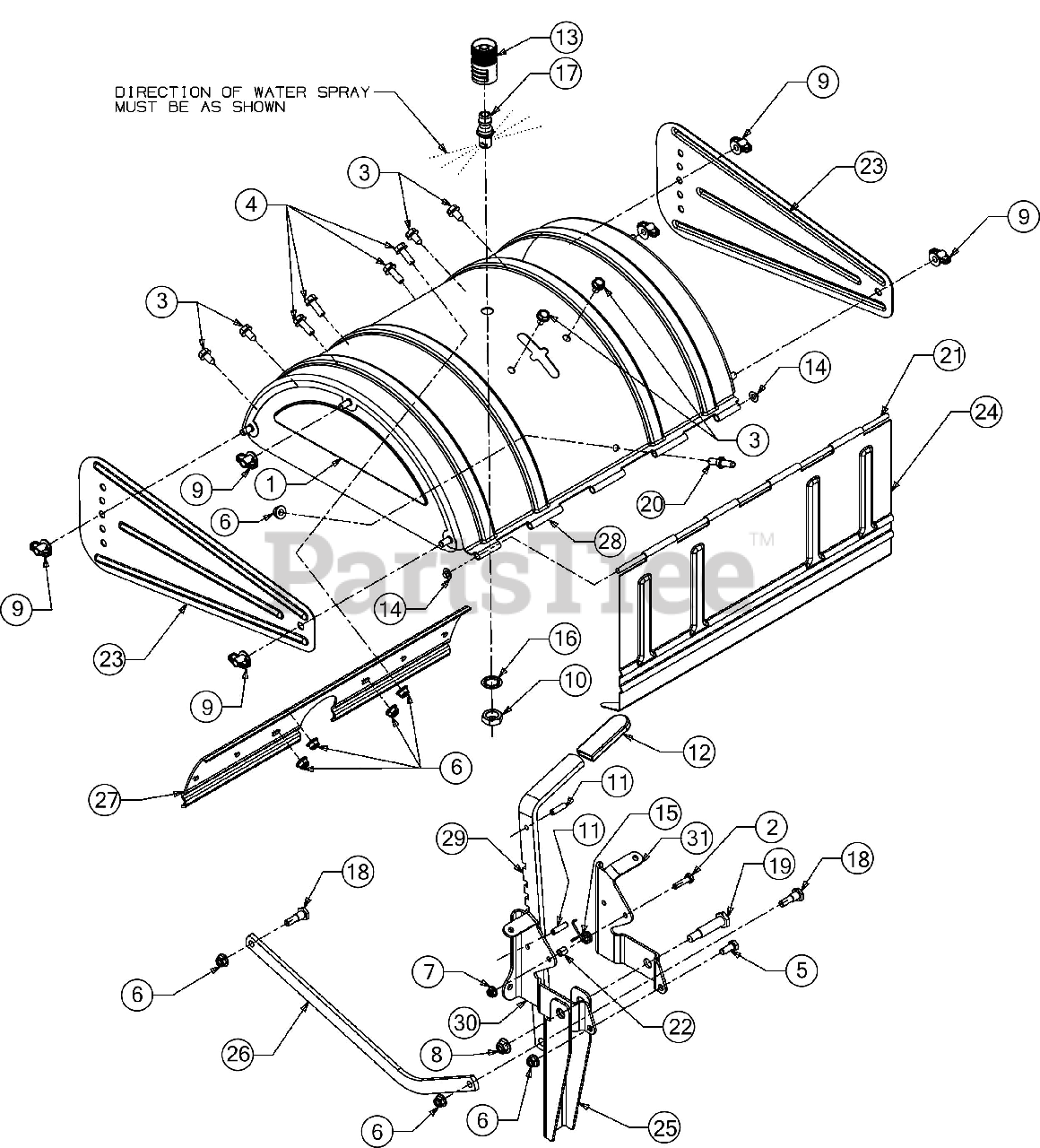

Tine Shield Assembly Parts Diagram

  • Title

1

Cub Cadet 686-0044B-4021

END COVER ASSEMBLY

$84.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-1307

CLINCH STUD 5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 14

0

3

Cub Cadet 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0421

WING NUT 5/16-18

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 912-0641

HEX NUT
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

11

Cub Cadet 715-0108

SPRING PIN 1/4 x 1.00

$4.99

$

In Stock, Qty 15

0

12

Cub Cadet 720-05021

DEPTH BAR HANDLE GRIP

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 921-04041

WATER NOZZLE

$23.99

$

In Stock, Qty 20+

0

14

Cub Cadet 926-0106

PUSH NUT
(Superseded to 726-0106)

$

$

Not available

15

Cub Cadet 732-04320

TORSION SPRING

$4.49

$

In Stock, Qty 11

0

16

Cub Cadet 736-0225

LOCK WASHER 5/8

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 737-04003D

DECK WASH NOZZLE

$23.99

$

In Stock, Qty 6

0

18

Cub Cadet 738-04320

SHOULDER SCREW

$5.49

$

In Stock, only 2 left!

0

19

Cub Cadet 938-0533

SHOULDER BOLT .498 x 1.635:3/8-16
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 938-0849

SHOULDER SCREW

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 747-0432

TILLER FLAP ROD

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-05349

ROUND SPACER

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 786-0090A-4021

SIDE SHIELD

$36.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 786-0113A-4021

REAR TINE SHIELD

$90.99

$

In Stock, only 4 left!

0

25

Cub Cadet 786-04092-4021

REVERSE STOP ARM

$22.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 786-04104-4021

DEPTH DRAG BAR

$36.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 786-04352A-4021

TINE BRACKET

$32.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 786-04355A-4021

TINE SHIELD

$81.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 786-04356A-4021

DEPTH ADJUSTMENT BRACKET

$34.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 786-04363-4021

TAIL BRACKET (LH)

$23.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 786-04364-4021

TAIL BRACKET (RH)

$23.99

$

Usually ships in 3-6 days
