RT-74 (59A40069727) - Cub Cadet Rear-Tine Tiller Gearbox Parts Diagram

Rear-Tine Tiller

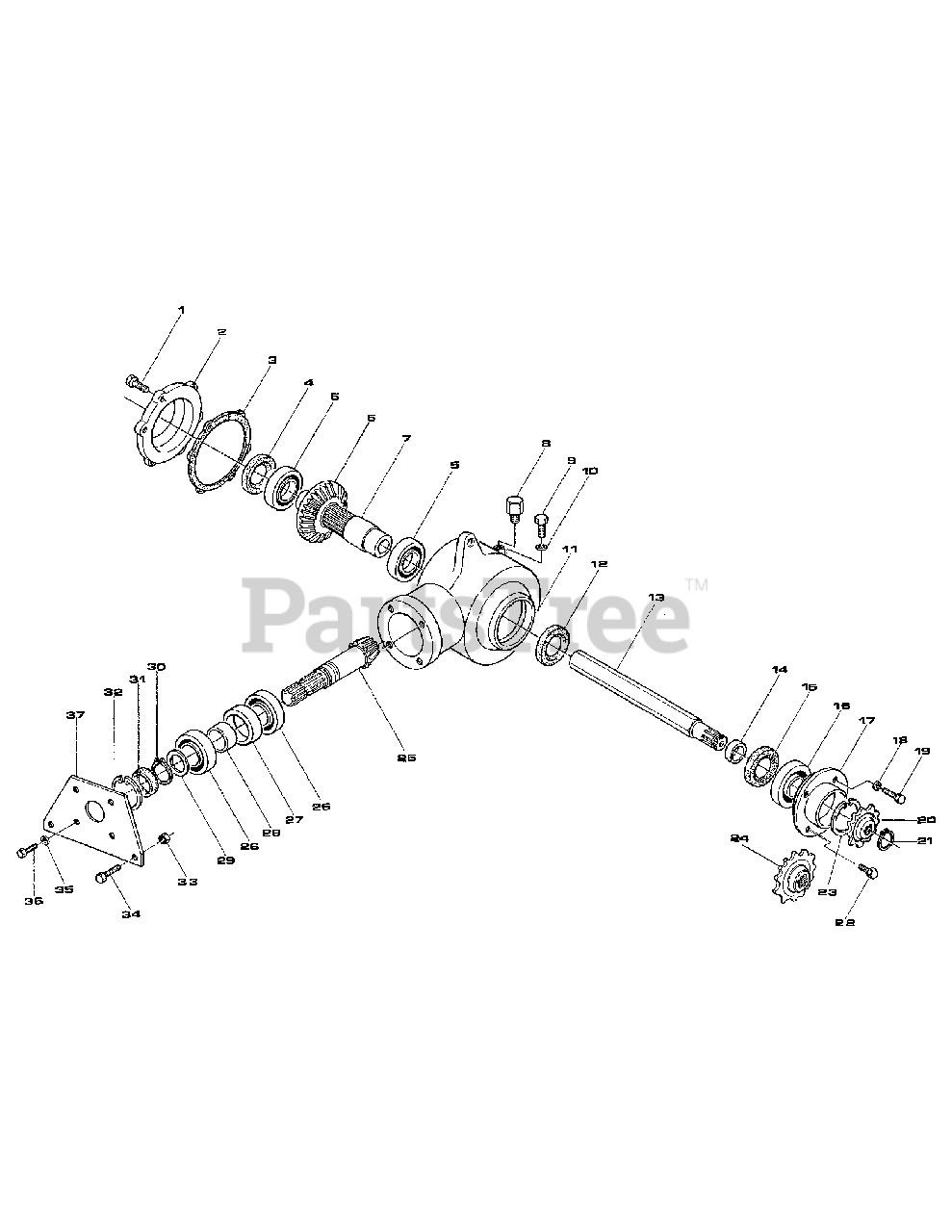

Gearbox Parts Diagram

  • Title

1

Cub Cadet YS-000-6349

Hex bolt M10x20
(Superseded to BF-000-6349)

$

$

Not available

2

Cub Cadet YS-008-0205

Gear cover
(Superseded to BF-008-0205)

$

$

Not available

3

Cub Cadet YS-018-0206

Gasket 0.2

$

$

Not available

3

Cub Cadet YS-028-0206

Gasket 0.5

$

$

Not available

4

Cub Cadet YS-008-0202

Oil seal 60.75.8
(Superseded to BF-008-0202)

$

$

Not available

5

Cub Cadet YS-000-1139

Bearing 6212
(Superseded to BF-000-1139)

$

$

Not available

6

Cub Cadet YS-008-0213

Ring gear
(Superseded to BF-008-0213)

$

$

Not available

7

Cub Cadet YS-008-0195

Shaft coupling
(Superseded to BF-008-0195)

$

$

Not available

8

Cub Cadet YS-000-1107A

Breather cap

$

$

Not available

9

Cub Cadet YS-000-2187

Hex bolt M16x50
(Superseded to BF-000-2187)

$

$

Not available

10

Cub Cadet YS-000-8568

Flat washer Ø16

$

$

Not available

11

Cub Cadet YS-008-0194

Gearbox housing

$

$

Not available

12

Cub Cadet YS-000-1639

Oil seal 60.80.10
(Superseded to BF-000-1639)

$

$

Not available

13

Cub Cadet YS-048-0182

Hexagonal shaft 74"
(Superseded to BF-048-0182)

$

$

Not available

14

Cub Cadet YS-000-3049

Spacer
(Superseded to BF-000-3049)

$

$

Not available

15

Cub Cadet YS-003-2512

Oil seal 55.80.10
(Superseded to BF-003-2512)

$

$

Not available

16

Cub Cadet YS-000-1085

Bearing 6309
(Superseded to BF-000-1085)

$

$

Not available

17

Cub Cadet YS-008-0172

Top shaft flange
(Superseded to BF-008-0172)

$

$

Not available

18

Cub Cadet YS-000-1011

Lock washer Ø10
(Superseded to BF-000-1011)

$

$

Not available

19

Cub Cadet YS-003-8614

Hex bolt M10x40
(Superseded to BF-003-8614)

$

$

Not available

20

Cub Cadet YS-008-0162

Sprocket Z12
(Superseded to BF-008-0162)

$

$

Not available

21

Cub Cadet YS-001-2028

Outer snap ring Ø45

$

$

Currently unavailable

22

Cub Cadet YS-000-1241

Hex bolt M10x25
(Superseded to BF-000-1241)

$

$

Not available

23

Cub Cadet YS-000-1087

Inner snap ring Ø100
(Superseded to BF-000-1087)

$

$

Not available

24

Cub Cadet YS-008-0142

Sprocket Z14
(Superseded to BF-008-0142)

$

$

Not available

25

Cub Cadet YS-008-0214

Pinion gear
(Superseded to BF-008-0214)

$

$

Not available

26

Cub Cadet YS-000-1148

Bearing 6308
(Superseded to BF-000-1148)

$

$

Not available

27

Cub Cadet YS-005-3257

Spacer
(Superseded to BF-005-3257)

$

$

Not available

28

Cub Cadet YS-005-3253

Spacer
(Superseded to BF-005-3253)

$

$

Not available

29

Cub Cadet YS-000-6685

Spacer washer
(Superseded to BF-000-6685)

$

$

Not available

30

Cub Cadet YS-000-8138

Outer snap ring Ø40
(Superseded to BF-000-8138)

$

$

Not available

31

Cub Cadet YS-005-4290

Oil seal 40.90.8 BASL
(Superseded to BF-005-4290)

$

$

Not available

32

Cub Cadet YS-000-8137

Inner snap ring Ø90

$

$

Currently unavailable

33

Cub Cadet YS-003-0358

Nut M14
(Superseded to BF-003-0358)

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet YS-007-4232

Hex bolt M14x40
(Superseded to BF-007-4232)

$

$

Not available

35

Cub Cadet YS-007-6106

Flat washer Ø12
(Superseded to BF-007-6106)

$

$

Not available

36

Cub Cadet YS-001-5255

Hex bolt M12x30
(Superseded to BF-001-5255)

$

$

Not available

37

Cub Cadet YS-008-0233

Gearbox front cover
(Superseded to BF-008-0233)

$

$

Not available

Cub Cadet YS-050-0613

Gearbox 540 rpm complete
(Superseded to BF-050-0613)

Note: Not shown

$

$

Not available
