RT-74 (59A40069727) - Cub Cadet Rear-Tine Tiller Driveline (Slip Clutch) 1 Parts Diagram

Rear-Tine Tiller

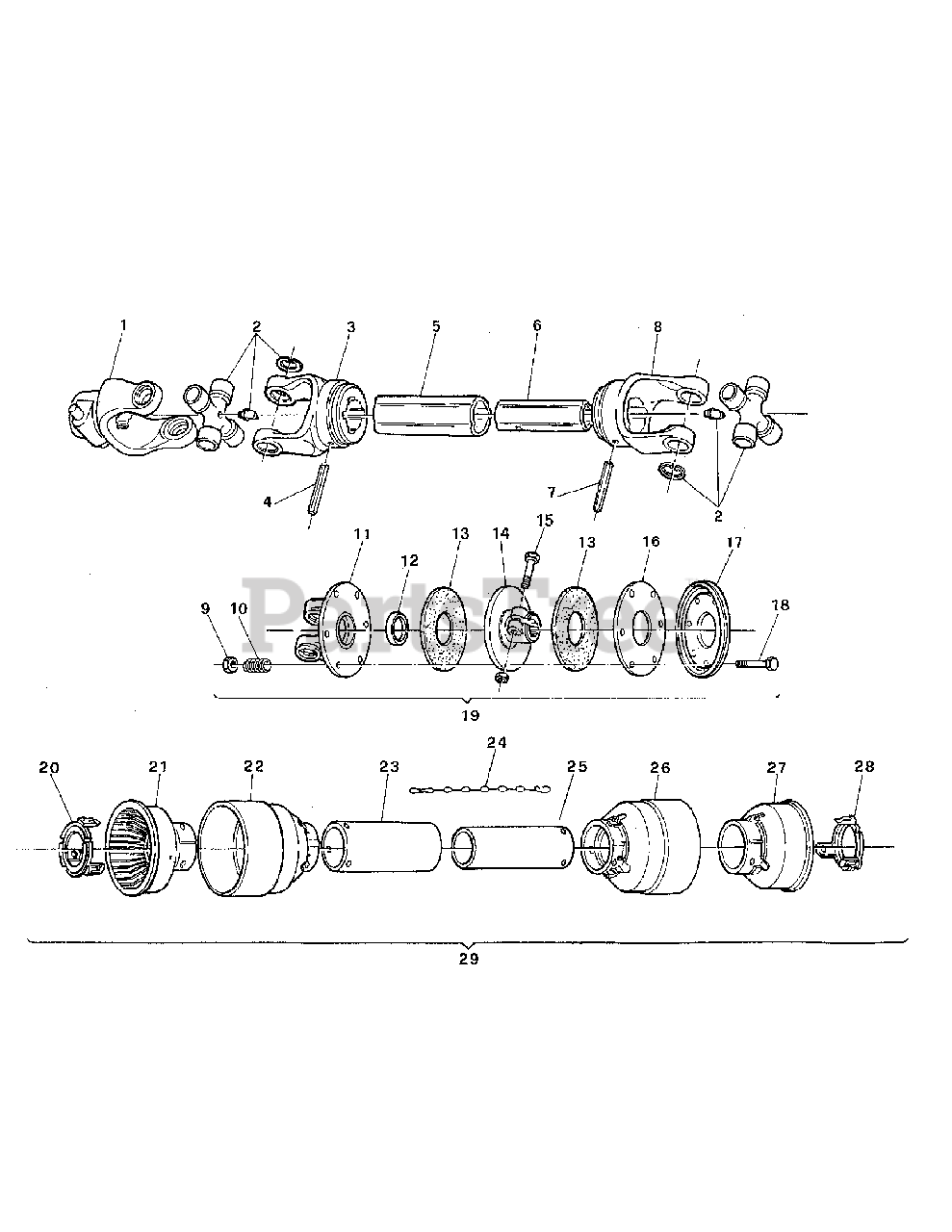

Driveline (Slip Clutch) 1 Parts Diagram

  • Title

1

Cub Cadet YS-026-001E

PTO yoke
(Superseded to BF-026-001E)

$

$

Not available

2

Cub Cadet YS-016-130E

Cross & bearing

$

$

Not available

3

Cub Cadet YS-1706027C

Female yoke
(Superseded to BF-1706027C)

$

$

Not available

4

Cub Cadet YS-003-2204

Roll pin Ø10x80

$

$

Not available

5

Cub Cadet YS-160-209E

Female shaft
(Superseded to BF-160-209E)

$

$

Not available

6

Cub Cadet YS-160-109E

Male shaft
(Superseded to BF-160-109E)

$

$

Not available

7

Cub Cadet YS-000-016E

Roll pin Ø10x70
(Superseded to BF-000-016E)

$

$

Not available

8

Cub Cadet YS-1706029C

Male Yoke
(Superseded to BF-1706029C)

$

$

Not available

9

Cub Cadet YS-001-4106

Locking nut M10
(Superseded to BF-001-4106)

$

$

Not available

10

Cub Cadet YS-014-022E

Spring
(Superseded to BF-014-022E)

$

$

Not available

11

Cub Cadet YS-1706005C

Yoke slip clutch
(Superseded to BF-1706005C)

$

$

Not available

12

Cub Cadet YS-1705009C

Bushing
(Superseded to BF-1705009C)

$

$

Not available

13

Cub Cadet YS-1805010C

Friction disc
(Superseded to BF-1805010C)

$

$

Not available

14

Cub Cadet YS-1705005C

Body slip clutch
(Superseded to BF-1705005C)

$

$

Not available

15

Cub Cadet YS-6761270C

Bolt and nut M12x70
(Superseded to BF-6761270C)

$

$

Not available

16

Cub Cadet YS-1135008C

Outer flange
(Superseded to BF-1135008C)

$

$

Not available

17

Cub Cadet YS-1135007C

Outer cone
(Superseded to BF-1135007C)

$

$

Not available

18

Cub Cadet YS-001-5236

Hex bolt M10x80

$

$

Currently unavailable

19

Cub Cadet YS-1346018C

Complete slip clutch
(Superseded to BF-1346018C)

$

$

Not available

20

Cub Cadet YS-1786009C

Outer tube locking ring
(Superseded to BF-1786009C)

$

$

Not available

21

Cub Cadet YS-1786010C

Outer tube rigid cone
(Superseded to BF-1786010C)

$

$

Not available

22

Cub Cadet YS-1786013C

Outer cone
(Superseded to BF-1786013C)

$

$

Not available

23

Cub Cadet YS-1775040C

Female tube shield
(Superseded to BF-1775040C)

$

$

Not available

24

Cub Cadet YS-016-025E

Chain
(Superseded to BF-016-025E)

$

$

Not available

25

Cub Cadet YS-1874040C

Male tube shield
(Superseded to BF-1874040C)

$

$

Not available

26

Cub Cadet YS-1786012C

Inner cone
(Superseded to BF-1786012C)

$

$

Not available

27

Cub Cadet YS-1786011C

Inner tube rigid cone
(Superseded to BF-1786011C)

$

$

Not available

28

Cub Cadet YS-1786008C

Inner locking ring
(Superseded to BF-1786008C)

$

$

Not available

29

Cub Cadet YS-90SC6040C

Complete shielding
(Superseded to BF-90SC6040C)

$

$

Not available

Cub Cadet YS-050-0427

PTO shaft w/slip clutch complete
(Superseded to BF-050-0427)

$

$

Not available

Cub Cadet YS-950-463B

Decal "DANGER - Rotating driveline, keep away" outer tube

Note: Not shown

$

$

Not available

Cub Cadet YS-950-464B

Decal "DANGER - Guard missing, do not operate" inner tube

Note: Not shown

$

$

Not available
