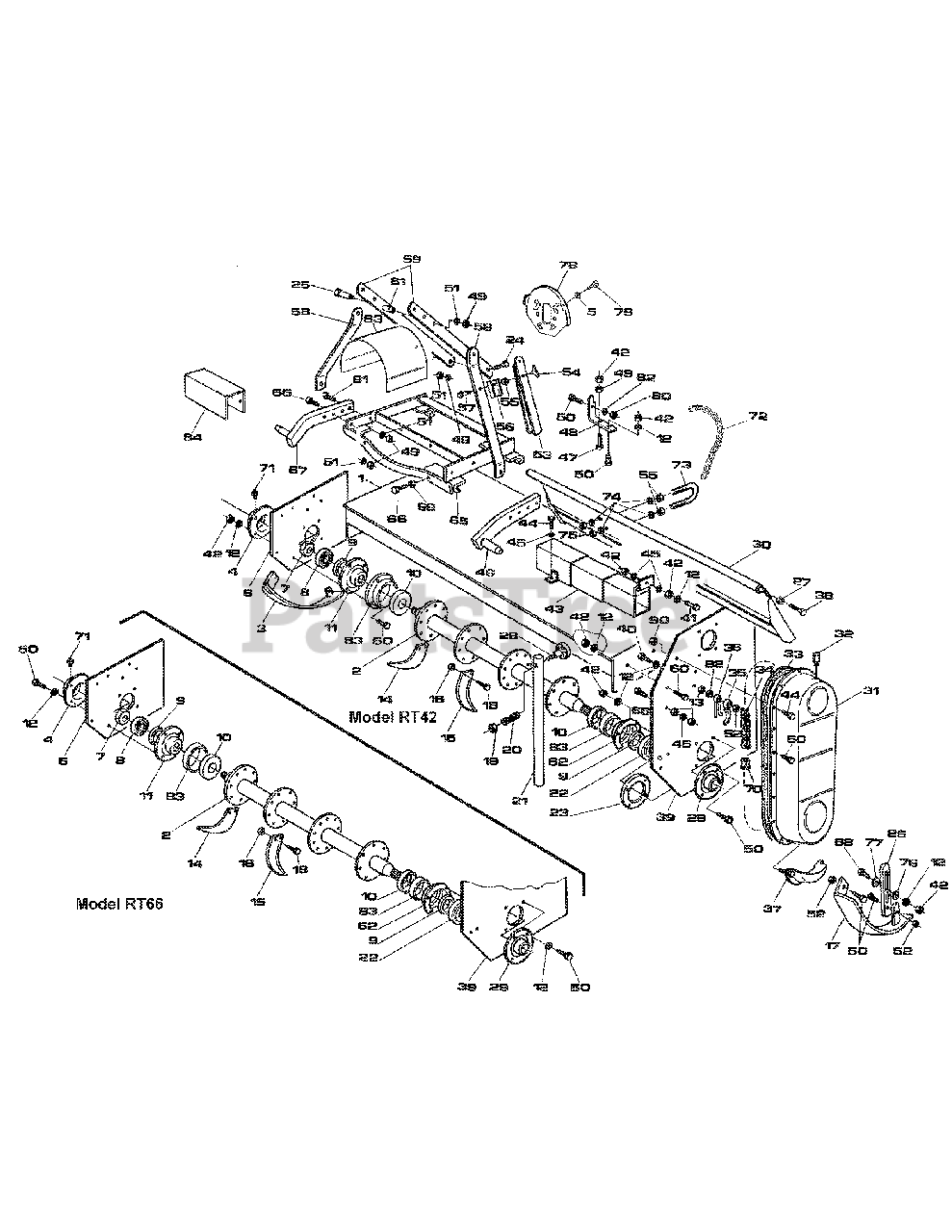

RT-66 (59A40029727) - Cub Cadet Yanmar Tractor 66" Rotary Tiller Frame Version 2 Parts Diagram

Tractor 66" Rotary Tiller

Frame Version 2 Parts Diagram

  • Title

1

Cub Cadet YS-022-2002

Frame RT42

$

$

Not available

1

Cub Cadet YS-052-2002

Frame RT66

$

$

Not available

2

Cub Cadet YS-023-4081

Rotor RT42

$

$

Not available

2

Cub Cadet YS-053-4081

Rotor RT66

$

$

Not available

3

Cub Cadet YS-012-2051

Right skid
(Superseded to BF-012-2051)

$

$

Not available

4

Cub Cadet YS-003-0091

Right outer cover
(Superseded to BF-003-0091)

$

$

Not available

5

Cub Cadet YS-001-1209

Flat washer Ø6
(Superseded to BF-001-1209)

$

$

Not available

6

Cub Cadet YS-002-4511

Right side panel

$

$

Not available

7

Cub Cadet YS-003-0095

Safety nut M30x1.5
(Superseded to BF-003-0095)

$

$

Not available

8

Cub Cadet YS-003-0094

Bearing 6306
(Superseded to BF-003-0094)

$74.99

$

In Stock, only 1 left!

0

9

Cub Cadet YS-003-4098

Oil seal 40.60.10 RT42
(Superseded to BF-003-4098)

$

$

Not available

9

Cub Cadet YS-005-7567

Oil seal 40.56.8 RT66

$

$

Not available

10

Cub Cadet YS-002-2074

Dirt shield
(Superseded to BF-002-2074)

$

$

Not available

11

Cub Cadet YS-003-0092

Cover RT42
(Superseded to BF-003-0092)

$

$

Not available

11

Cub Cadet YS-008-4081

Right rotor support RT66

$

$

Not available

12

Cub Cadet YS-000-1280

Washer Ø10
(Superseded to BF-000-1280)

$

$

Not available

13

Cub Cadet YS-000-1010

Nut M10
(Superseded to BF-000-1010)

$

$

Not available

14

Cub Cadet YS-003-0104D

Right C blade
(Superseded to BF-003-0104D)

$

$

Not available

15

Cub Cadet YS-003-0104S

Left C blade
(Superseded to BF-003-0104S)

$

$

Not available

16

Cub Cadet YS-002-1105

Nut M12
(Superseded to BF-002-1105)

$

$

Not available

17

Cub Cadet YS-022-2051

Left skid
(Superseded to BF-022-2051)

$

$

Not available

18

Cub Cadet YS-002-1104

Bolt TE M12x30
(Superseded to BF-002-1104)

$

$

Not available

19

Cub Cadet YS-003-0358

Nut M14
(Superseded to BF-003-0358)

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet YS-000-1176

Spring
(Superseded to BF-000-1176)

$

$

Not available

21

Cub Cadet YS-003-4324

Stand

$

$

Not available

22

Cub Cadet YS-000-1061

Bearing 6307
(Superseded to BF-000-1061)

$

$

Not available

23

Cub Cadet YS-003-4121

Disk with holes
(Superseded to BF-003-4121)

$

$

Not available

24

Cub Cadet YS-001-5122

Bolt TE M12x90

$

$

Not available

25

Cub Cadet YS-003-4286

Bolt TE M12x100
(Superseded to BF-003-4286)

$

$

Not available

26

Cub Cadet YS-002-1051

Serrated adjustment arm
(Superseded to BF-002-1051)

$

$

Not available

27

Cub Cadet YS-000-3124

Nut M16
(Superseded to BF-000-3124)

$

$

Not available

28

Cub Cadet YS-002-6187

Bolt TE M14x70

$

$

Not available

29

Cub Cadet YS-003-4122

Left outer cover
(Superseded to BF-003-4122)

$

$

Not available

30

Cub Cadet YS-028-6399

Tail gate RT42

$

$

Not available

30

Cub Cadet YS-058-6399

Tail gate RT66

$

$

Not available

31

Cub Cadet YS-001-1030A

Chain case cover

$

$

Not available

32

Cub Cadet YS-000-1107A

Breather cap

$

$

Not available

33

Cub Cadet YS-002-2032

Gasket
(Superseded to BF-002-2032)

$

$

Not available

34

Cub Cadet YS-003-4141

Chain ASA 80sx36 RT42
(Superseded to BF-003-4141)

$

$

Not available

34

Cub Cadet YS-013-4141

Chain ASA 80HEx36 RT66

$

$

Not available

35

Cub Cadet YS-003-0148

Chain tensioner
(Superseded to BF-003-0148)

$

$

Not available

36

Cub Cadet YS-003-0158

Spring
(Superseded to BF-003-0158)

$

$

Not available

37

Cub Cadet YS-002-2035

Chain case protection

$

$

Not available

38

Cub Cadet YS-003-0309

Bolt TE M16x70
(Superseded to BF-003-0309)

$

$

Not available

39

Cub Cadet YS-002-4521

Left side panel

$

$

Not available

40

Cub Cadet YS-013-0155

Bolt TE M10x60

$

$

Not available

41

Cub Cadet YS-002-6329

Bolt TE M10x45
(Superseded to BF-002-6329)

$

$

Not available

42

Cub Cadet YS-000-1279

Nut M10
(Superseded to BF-000-1279)

$

$

Not available

43

Cub Cadet YS-012-1253

Protection RT42

$

$

Not available

43

Cub Cadet YS-032-1253

Protection RT66

$

$

Not available

44

Cub Cadet YS-000-6349

Bolt TE M10x20
(Superseded to BF-000-6349)

$

$

Not available

45

Cub Cadet YS-000-2034

Flat washer Ø10
(Superseded to BF-000-2034)

$

$

Not available

46

Cub Cadet YS-023-4261

Left lower hitch plate

$

$

Not available

47

Cub Cadet YS-003-0334

Bolt TE M10x55
(Superseded to BF-003-0334)

$

$

Not available

48

Cub Cadet YS-003-0321

Chain hitch

$

$

Not available

49

Cub Cadet YS-000-3038

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

50

Cub Cadet YS-000-1278

Bolt TE M10x30
(Superseded to BF-000-1278)

$

$

Not available

51

Cub Cadet YS-000-1077

Washer Ø12
(Superseded to BF-000-1077)

$

$

Not available

52

Cub Cadet YS-003-0156

Nut M10
(Superseded to BF-003-0156)

$

$

Not available

53

Cub Cadet YS-001-0335

Ratchet arm

$

$

Not available

54

Cub Cadet YS-000-1807

Nut M8

$

$

Not available

55

Cub Cadet YS-000-1806

Nut M8
(Superseded to BF-000-1806)

$

$

Not available

56

Cub Cadet YS-003-0339

Locking cover
(Superseded to BF-003-0339)

$

$

Not available

57

Cub Cadet YS-000-8037

Bolt TE M8x50
(Superseded to BF-000-8037)

$

$

Not available

58

Cub Cadet YS-003-4273

Top hitch support

$

$

Not available

59

Cub Cadet YS-003-4272

Top hitch arm

$

$

Not available

60

Cub Cadet YS-003-3176

Bolt TE M10x25
(Superseded to BF-003-3176)

$

$

Not available

61

Cub Cadet YS-002-1285

Spacer
(Superseded to BF-002-1285)

$

$

Not available

62

Cub Cadet YS-003-0092

Cover RT42
(Superseded to BF-003-0092)

$

$

Not available

62

Cub Cadet YS-008-4105

Left rotor support RT66

$

$

Not available

63

Cub Cadet YS-002-2269

PTO shaft protection

$

$

Not available

64

Cub Cadet YS-013-0260

Right protection RT42

$

$

Not available

64

Cub Cadet YS-043-0260

Right protection RT66

$

$

Not available

65

Cub Cadet YS-002-2251

Side shift complete RT42

$

$

Not available

65

Cub Cadet YS-012-2251

Side shift complete RT66

$

$

Not available

66

Cub Cadet YS-002-1257

Bolt TE M12x60
(Superseded to BF-002-1257)

$

$

Not available

67

Cub Cadet YS-013-4261

Lower right hitch plate

$

$

Not available

68

Cub Cadet YS-003-0331

Bolt TE M10x50
(Superseded to BF-003-0331)

$

$

Not available

69

Cub Cadet YS-000-1106

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

70

Cub Cadet YS-003-4150

Chain link RT42

$

$

Not available

70

Cub Cadet YS-013-4150

Chain link RT66

$

$

Not available

70

Cub Cadet YS-003-4151

Inner chain link RT42

$

$

Not available

70

Cub Cadet YS-013-4151

Inner chain link RT66

$

$

Not available

70

Cub Cadet YS-009-1206

False chain link RT42

$

$

Currently unavailable

70

Cub Cadet YS-019-1206

False chain link RT66

$

$

Not available

71

Cub Cadet YS-000-1065

Grease fitting
(Superseded to BF-000-1065)

$3.99

$

Usually ships in 3-6 days

0

72

Cub Cadet YS-001-0318

Chain
(Superseded to BF-001-0318)

$

$

Not available

73

Cub Cadet YS-001-1327

U bolt
(Superseded to BF-001-1327)

$

$

Not available

74

Cub Cadet YS-001-5230

Flat washer Ø8

$

$

Not available

75

Cub Cadet YS-001-1328

Nut M8
(Superseded to BF-001-1328)

$

$

Not available

76

Cub Cadet YS-002-1053

Washer
(Superseded to BF-002-1053)

$

$

Not available

77

Cub Cadet YS-002-1052

Threaded washer
(Superseded to BF-002-1052)

$

$

Not available

78

Cub Cadet YS-002-2268

Protection support

$

$

Not available

79

Cub Cadet YS-001-1210

Bolt TC M6x12
(Superseded to BF-001-1210)

$

$

Not available

80

Cub Cadet YS-001-4106

Nut M10
(Superseded to BF-001-4106)

$

$

Not available

81

Cub Cadet YS-003-0054

Bolt TE M12x50

$

$

Not available

82

Cub Cadet YS-003-0157

Flat washer Ø10
(Superseded to BF-003-0157)

$

$

Not available

83

Cub Cadet YS-001-0073

Cover RT42

$

$

Not available

83

Cub Cadet YS-008-4083

Dirt shield RT66

$

$

Not available

90

Cub Cadet YS-009-0150

Nut M10
(Superseded to BF-009-0150)

$

$

Not available

Cub Cadet YS-950-109B

Decal "DANGER - Avoid injury from PTO"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-209B

Decal "DANGER - Rotating blades hazard"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-417B

Decal "CAUTION - Read operator's manual"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-188B

Decal "Manual side-shift"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-445B

Decal "CCY" large

Note: Not shown

$

$

Not available

Cub Cadet YS-950-447B

Decal "RT42"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-448B

Decal "RT66"

Note: Not shown

$

$

Not available
