RT-66 (59A40029727) - Cub Cadet Rear-Tine Tiller Slipclutch Driveline (Optional) Parts Diagram

Rear-Tine Tiller

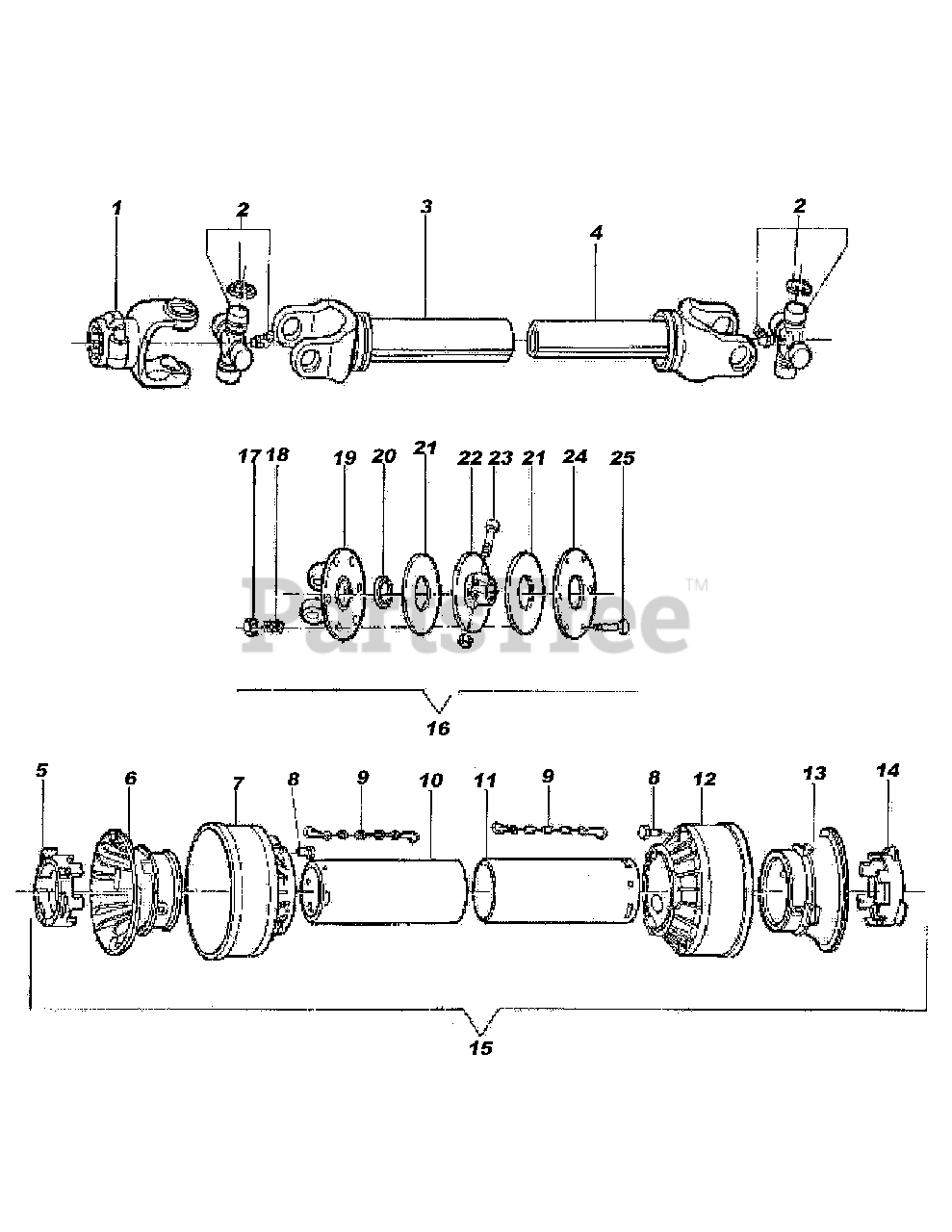

Slipclutch Driveline (Optional) Parts Diagram

  • Title

1

Cub Cadet YS-023-001E

Yoke 1 38/'' 6
(Superseded to BF-023-001E)

$

$

Not available

2

Cub Cadet YS-013-130E

Cross and Bearing
(Superseded to BF-013-130E)

$

$

Not available

3

Cub Cadet YS-1943045C

Outer Tube and Yoke
(Superseded to BF-1943045C)

$

$

Not available

4

Cub Cadet YS-1953047C

Inner Tube and Yoke

$

$

Not available

5

Cub Cadet YS-230-001E

Yoke Shearbolt

$

$

Not available

6

Cub Cadet YS-1784210C

Tube Outer Bearing
(Superseded to BF-1784210C)

$

$

Not available

7

Cub Cadet YS-1784201C

Outer Tube Rigid Cone
(Superseded to BF-1784201C)

$26.99

$

In Stock, only 1 left!

0

8

Cub Cadet YS-1784203C

Soft Cone
(Superseded to BF-1784203C)

$

$

Not available

9

Cub Cadet YS-1784212C

Pin for Stop Rotation
(Superseded to BF-1784212C)

$

$

Not available

10

Cub Cadet YS-1773043C

Outer Shield
(Superseded to BF-1773043C)

$

$

Not available

11

Cub Cadet YS-016-025E

Chain
(Superseded to BF-016-025E)

$

$

Not available

12

Cub Cadet YS-1872043C

Inner Shield
(Superseded to BF-1872043C)

$

$

Not available

13

Cub Cadet YS-1784202C

Inner Tube Rigid Cone
(Superseded to BF-1784202C)

$

$

Not available

14

Cub Cadet YS-1784211C

Tube Bearing Inner
(Superseded to BF-1784211C)

$

$

Not available

15

Cub Cadet YS-9403443C

Shield Complete
(Superseded to BF-9403443C)

$

$

Not available

16

Cub Cadet YS-013-014E

Slip Clutch Yoke Complete
(Superseded to BF-013-014E)

$

$

Not available

17

Cub Cadet YS-000-501E

Bolt M10 x 80
(Superseded to BF-000-501E)

$

$

Not available

18

Cub Cadet YS-014-021E

Dirt Shield
(Superseded to BF-014-021E)

$

$

Not available

19

Cub Cadet YS-001-5237

Nut 10MM Nylock
(Superseded to BF-001-5237)

$

$

Not available

20

Cub Cadet YS-014-022E

Spring
(Superseded to BF-014-022E)

$

$

Not available

21

Cub Cadet YS-013-014E

Yoke Slip Clutch
(Superseded to BF-013-014E)

$

$

Not available

22

Cub Cadet YS-014-019E

Friction Disk
(Superseded to BF-014-019E)

$

$

Not available

23

Cub Cadet YS-015-020E

Spacer
(Superseded to BF-015-020E)

$

$

Not available

24

Cub Cadet YS-014-018E

Body Friction Clutch
(Superseded to BF-014-018E)

$

$

Not available

25

Cub Cadet YS-000-502E

Bolt mM12 65 with Nut
(Superseded to BF-000-502E)

$

$

Not available

26

Cub Cadet YS-014-020E

Outer Flange
(Superseded to BF-014-020E)

$

$

Not available

Cub Cadet YS-050-0408

PTO Complete Slip Clutch
(Superseded to BF-050-0408)

Note: NOT SHOWN

$

$

Not available
