RT-66 (59A40029727) - Cub Cadet Rear-Tine Tiller Frame Version 1 Parts Diagram

Rear-Tine Tiller

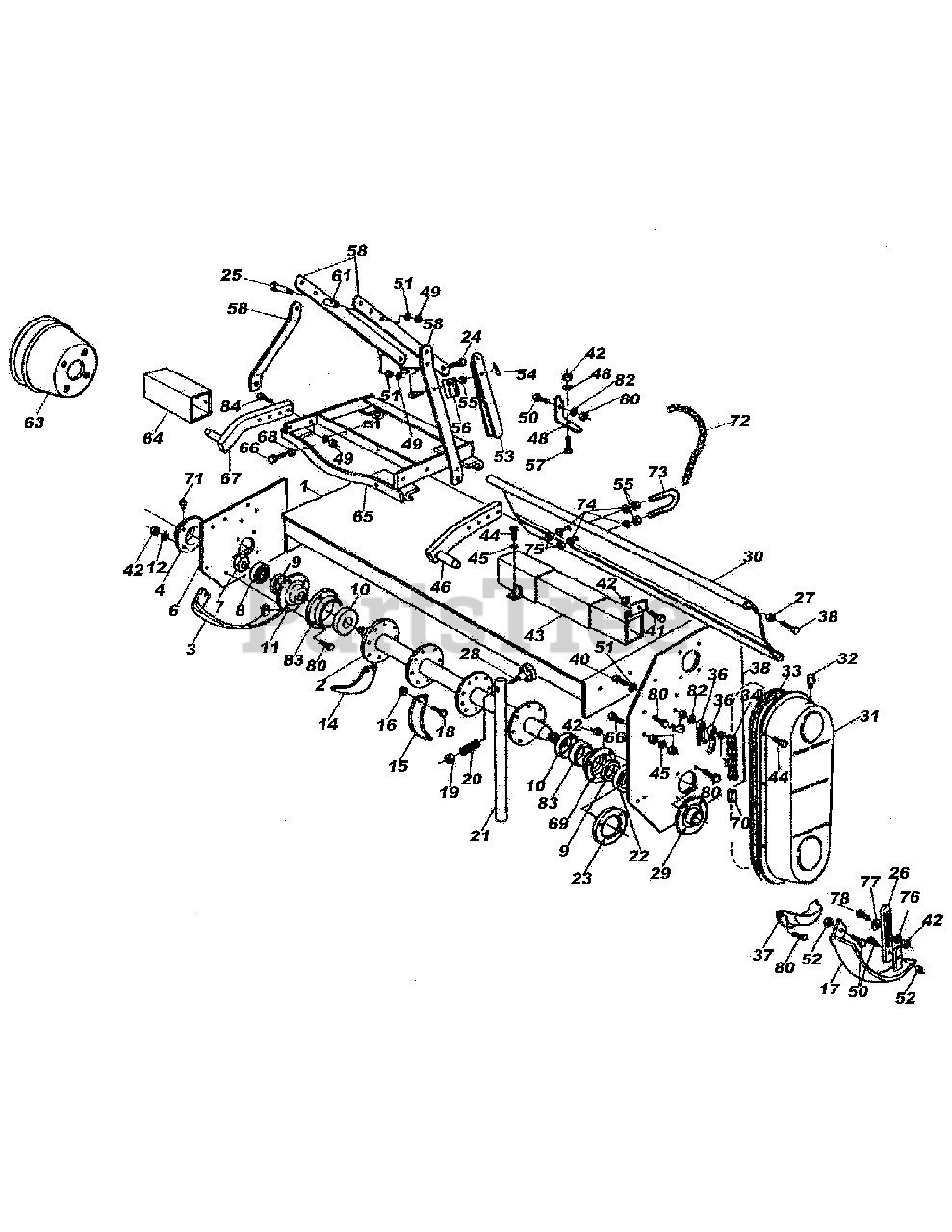

Frame Version 1 Parts Diagram

  • Title

1

Cub Cadet YS-022-2002

Main Frame

Note: (42'' Tiller)

$

$

Not available

1

Cub Cadet YS-052-2002

Main Frame

Note: (66'' Tiller)

$

$

Not available

2

Cub Cadet YS-023-4081

Rotor

Note: (42'' Tiller)

$

$

Not available

2

Cub Cadet YS-053-4081

Rotor

Note: (66'' Tiller)

$

$

Not available

3

Cub Cadet YS-012-2051

Skid - Right
(Superseded to BF-012-2051)

$

$

Not available

4

Cub Cadet YS-003-0091

Bearing Cover - Right
(Superseded to BF-003-0091)

$

$

Not available

6

Cub Cadet YS-002-2011

Right Side Panel

$

$

Not available

7

Cub Cadet YS-003-0095

Saftey Nut
(Superseded to BF-003-0095)

$

$

Not available

8

Cub Cadet YS-003-0094

Bearing 6306
(Superseded to BF-003-0094)

$74.99

$

In Stock, only 1 left!

0

9

Cub Cadet YS-003-4098

Oil Seal 40.60.10
(Superseded to BF-003-4098)

Note: (42'' Tiller)

$

$

Not available

9

Cub Cadet YS-005-7567

Oil Seal 40.56.8

Note: (66'' Tiller)

$

$

Not available

10

Cub Cadet YS-002-2074

Dirt Shield
(Superseded to BF-002-2074)

$

$

Not available

11

Cub Cadet YS-003-0092

Bearing Cover Inner
(Superseded to BF-003-0092)

$

$

Not available

12

Cub Cadet YS-000-1011

Lock Washer M10
(Superseded to BF-000-1011)

$

$

Not available

13

Cub Cadet YS-000-1010

Nut M10
(Superseded to BF-000-1010)

$

$

Not available

14

Cub Cadet YS-003-0104D

C-Knife Right
(Superseded to BF-003-0104D)

$

$

Not available

15

Cub Cadet YS-003-0104S

C-Knife Left
(Superseded to BF-003-0104S)

$

$

Not available

16

Cub Cadet YS-002-1105

Nut M12
(Superseded to BF-002-1105)

$

$

Not available

17

Cub Cadet YS-022-2051

Skid - Left
(Superseded to BF-022-2051)

$

$

Not available

18

Cub Cadet YS-002-1104

Bolt M12 x 30
(Superseded to BF-002-1104)

$

$

Not available

19

Cub Cadet YS-003-0358

Nut M14
(Superseded to BF-003-0358)

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet YS-000-1176

Jack Stand Spring
(Superseded to BF-000-1176)

$

$

Not available

21

Cub Cadet YS-003-4324

Jack Stand

$

$

Not available

22

Cub Cadet YS-000-1061

Bearing 6307
(Superseded to BF-000-1061)

$

$

Not available

23

Cub Cadet YS-003-4121

Disk with Holes
(Superseded to BF-003-4121)

$

$

Not available

24

Cub Cadet YS-001-5122

Bolt M12 x 90

$

$

Not available

25

Cub Cadet YS-003-4286

Bolt M12 x 100
(Superseded to BF-003-4286)

$

$

Not available

26

Cub Cadet YS-002-1051

Serrated Ajustment Arm
(Superseded to BF-002-1051)

$

$

Not available

27

Cub Cadet YS-000-3124

Nut M16
(Superseded to BF-000-3124)

$

$

Not available

28

Cub Cadet YS-002-6187

Bolt M114 x 70

$

$

Not available

29

Cub Cadet YS-003-4122

Bearing Cover Left
(Superseded to BF-003-4122)

$

$

Not available

30

Cub Cadet YS-023-0303

Tailgate

Note: (42'' Tiller)

$

$

Not available

30

Cub Cadet YS-053-0303

Tailgate

Note: (66'' Tiller)

$

$

Not available

31

Cub Cadet YS-001-1030

Chain Case Cover
(Superseded to BF-001-1030)

$

$

Not available

32

Cub Cadet YS-001-0035

Breather Cap
(Superseded to BF-001-0035)

$

$

Not available

33

Cub Cadet YS-002-2032

Gasket
(Superseded to BF-002-2032)

$

$

Not available

34

Cub Cadet YS-003-4141

Chain ASA 80 x 36
(Superseded to BF-003-4141)

$

$

Not available

35

Cub Cadet YS-003-0148

Chain Tensioner
(Superseded to BF-003-0148)

$

$

Not available

36

Cub Cadet YS-003-0158

Chain Tensioner Spring
(Superseded to BF-003-0158)

$

$

Not available

37

Cub Cadet YS-002-2035

Chain Pan Protection

$

$

Not available

38

Cub Cadet YS-003-0309

Bolt M16 x 70
(Superseded to BF-003-0309)

$

$

Not available

39

Cub Cadet YS-002-2021

Left Side Panel

$

$

Not available

40

Cub Cadet YS-003-0155

Bolt M10 x 60
(Superseded to BF-003-0155)

$

$

Not available

41

Cub Cadet YS-000-1101

Bolt M10 x 45
(Superseded to BF-000-1101)

$

$

Not available

42

Cub Cadet YS-000-1279

Nut M10
(Superseded to BF-000-1279)

$

$

Not available

43

Cub Cadet YS-012-1253

Telescopic Cover

Note: (42'' Tiller)

$

$

Not available

43

Cub Cadet YS-032-1253

Telescopic Cover

Note: (66'' Tiller)

$

$

Not available

44

Cub Cadet YS-000-6349

Bolt M10 x 20
(Superseded to BF-000-6349)

$

$

Not available

45

Cub Cadet YS-000-2034

Lock Washer M10
(Superseded to BF-000-2034)

$

$

Not available

46

Cub Cadet YS-023-4261

Lower Hitch Plate Left

$

$

Not available

47

Cub Cadet YS-003-0334

Bolt M10 x 55
(Superseded to BF-003-0334)

$

$

Not available

48

Cub Cadet YS-003-0321

Chain Hitch

$

$

Not available

49

Cub Cadet YS-000-3038

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

50

Cub Cadet YS-000-1278

Bolt M10 x 30
(Superseded to BF-000-1278)

$

$

Not available

51

Cub Cadet YS-000-1077

Lock Washer M12
(Superseded to BF-000-1077)

$

$

Not available

52

Cub Cadet YS-003-0156

Nut M10
(Superseded to BF-003-0156)

$

$

Not available

53

Cub Cadet YS-001-0335

Ratchet Arm

$

$

Not available

54

Cub Cadet YS-000-1807

Wing Nut M8

$

$

Not available

55

Cub Cadet YS-000-1806

Nut M8
(Superseded to BF-000-1806)

$

$

Not available

56

Cub Cadet YS-003-0339

Locking Cover
(Superseded to BF-003-0339)

$

$

Not available

57

Cub Cadet YS-003-0334

Bolt M10 x 55
(Superseded to BF-003-0334)

$

$

Not available

58

Cub Cadet YS-003-4273

Top Hitch Support

$

$

Not available

59

Cub Cadet YS-003-4272

Top Hitch Arm

$

$

Not available

60

Cub Cadet YS-003-3176

Bolt M10 x 25
(Superseded to BF-003-3176)

$

$

Not available

61

Cub Cadet YS-002-1285

Spacer
(Superseded to BF-002-1285)

$

$

Not available

63

Cub Cadet YS-000-8663

Protective Cover

$

$

Not available

64

Cub Cadet YS-013-0260

Right Protection

Note: (42'' Tiller)

$

$

Not available

64

Cub Cadet YS-043-0260

Right Protection

Note: (66'' Tiller)

$

$

Not available

65

Cub Cadet YS-002-2251

Side Shift Complete

Note: (42'' Tiller)

$

$

Not available

65

Cub Cadet YS-012-2251

Side Shift Complete

Note: (66'' Tiller)

$

$

Not available

66

Cub Cadet YS-002-2279

Bolt M12 x 60
(Superseded to BF-002-2279)

$

$

Not available

67

Cub Cadet YS-013-4261

Lower Hitch Plate Right

$

$

Not available

68

Cub Cadet YS-003-0331

Bolt M10 x 50
(Superseded to BF-003-0331)

$

$

Not available

69

Cub Cadet YS-000-1106

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

70

Cub Cadet YS-003-4151

Chain Link Inner

$

$

Not available

70

Cub Cadet YS-003-4150

False Chain Link

$

$

Not available

71

Cub Cadet YS-000-1065

Grease Fitting
(Superseded to BF-000-1065)

$3.99

$

Usually ships in 3-6 days

0

72

Cub Cadet YS-001-0318

Chain
(Superseded to BF-001-0318)

$

$

Not available

73

Cub Cadet YS-001-1327

U Bolt
(Superseded to BF-001-1327)

$

$

Not available

74

Cub Cadet YS-001-5230

Flat Washer 8mm

$

$

Not available

75

Cub Cadet YS-001-1328

Nut M8
(Superseded to BF-001-1328)

$

$

Not available

76

Cub Cadet YS-002-1053

Washer with Hole
(Superseded to BF-002-1053)

$

$

Not available

77

Cub Cadet YS-002-1052

Washer with Thread
(Superseded to BF-002-1052)

$

$

Not available

78

Cub Cadet YS-003-0331

Bolt M10 x 50
(Superseded to BF-003-0331)

$

$

Not available

78

Cub Cadet YS-003-0155

Bolt M10 x 60
(Superseded to BF-003-0155)

$

$

Not available

80

Cub Cadet YS-001-4106

Nut 10mm
(Superseded to BF-001-4106)

$

$

Not available

82

Cub Cadet YS-003-0157

Washer
(Superseded to BF-003-0157)

$

$

Not available

83

Cub Cadet YS-001-0073

Ext. Cover

Note: (42'' Tiller)

$

$

Not available

83

Cub Cadet YS-008-4083

Ext. Cover

Note: (66'' Tiller)

$

$

Not available

84

Cub Cadet YS-002-1257

Bolt M12 x 60
(Superseded to BF-002-1257)

Note: (42'' Tiller)

$

$

Not available

84

Cub Cadet YS-003-0054

Bolt M12 x 50

Note: (66'' Tiller)

$

$

Not available
