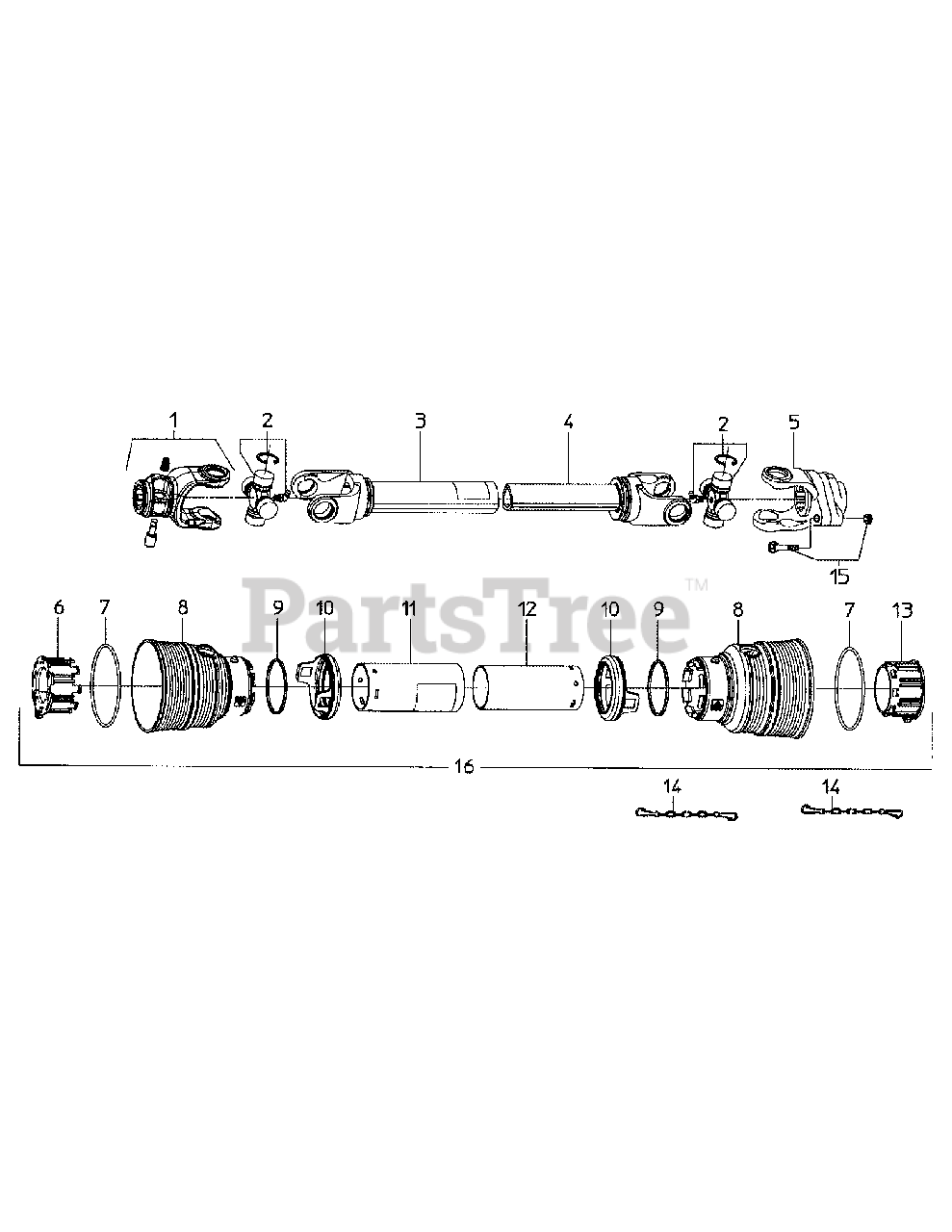

RT-66 (59A40029727) - Cub Cadet Rear-Tine Tiller Driveline (shearbolt) Above 1F048001 V2 Parts Diagram

Rear-Tine Tiller

Driveline (shearbolt) Above 1F048001 V2 Parts Diagram

  • Title

1

Cub Cadet YS-023-001E

PTO Yoke
(Superseded to BF-023-001E)

$

$

Not available

2

Cub Cadet YS-013-130E

Cross & Bearing
(Superseded to BF-013-130E)

$

$

Not available

3

Cub Cadet YS-1943045NC

Outer tube

$

$

Not available

4

Cub Cadet YS-1953047NC

Inner tube

$

$

Not available

5

Cub Cadet YS-230-001E

Shearpin coupler

$

$

Not available

6

Cub Cadet YS-1784710C

Outer locking ring

$

$

Not available

7

Cub Cadet YS-1211733C

Stiffening ring

$

$

Not available

8

Cub Cadet YS-1781703C

Outer cone

$

$

Not available

9

Cub Cadet YS-1211735C

Stop ring

$

$

Not available

10

Cub Cadet YS-1881709C

Safety sleeve

$

$

Not available

11

Cub Cadet YS-1773043C

Female tube shield
(Superseded to BF-1773043C)

$

$

Not available

12

Cub Cadet YS-1872043C

Male tube shield
(Superseded to BF-1872043C)

$

$

Not available

13

Cub Cadet YS-1784711C

Inner locking ring

$

$

Not available

14

Cub Cadet YS-016-025E

Chain
(Superseded to BF-016-025E)

$

$

Not available

15

Cub Cadet YS-000-505E

Shear bolt

$

$

Not available

16

Cub Cadet YS-96SS4043C

Complete shielding

$

$

Not available

Cub Cadet YS-050-0401

PTO shaft w/shear bolt complete

Note: Not shown

$

$

Not available

Cub Cadet YS-950-463B

Decal "DANGER - Rotating driveline, keep away" outer tube

Note: Not shown

$

$

Not available

Cub Cadet YS-950-464B

Decal "DANGER - Guard missing, do not operate" inner tube

Note: Not shown

$

$

Not available
