RT-65 H (21AB455C710) - Cub Cadet Rear-Tine Tiller (2015) Handles, Tine & Shield Parts Diagram

Rear-Tine Tiller

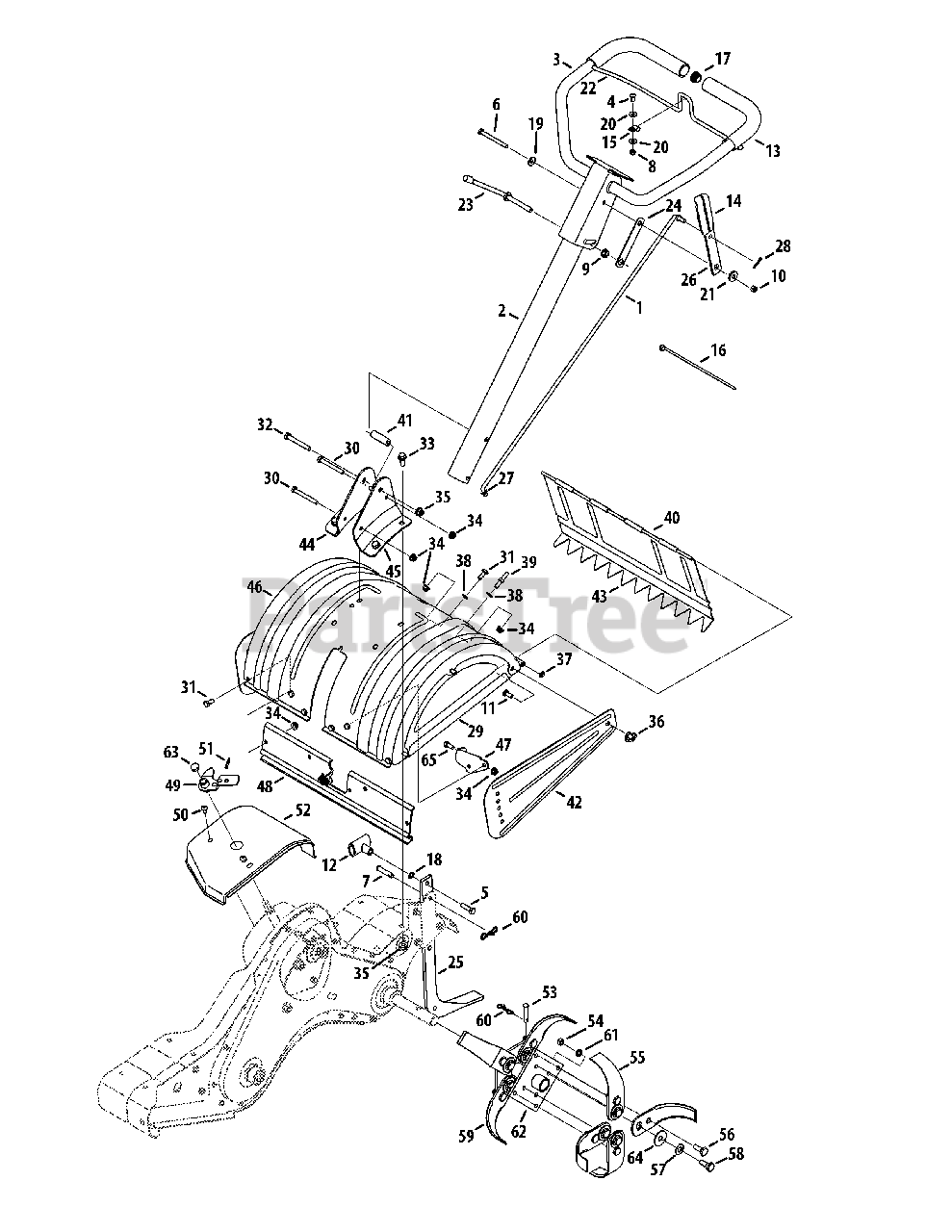

Handles, Tine & Shield Parts Diagram

  • Title

1

Cub Cadet 747-1152

Shaft Rod

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 649-0034-4021

Lower Handle Tube Assembly

$90.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 649-0041A-4021

Upper Handle Assembly

$208.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0946

Screw, 1/4-20 x 0.625

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3005

Hex Head Screw, 3/8-16:1.25

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet 710-3056

Hex Head Screw, 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

7

Cub Cadet 911-0415

Clevis Pin, .375 X 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 19

0

8

Cub Cadet 712-0324

Hexlock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

9

Cub Cadet 712-0379

Flangelock Nut, 3/8-24

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 912-0429

Hexlock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1307

Stud, 5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 720-0210A

Small Tee Knob

$15.99

$

In Stock, only 3 left!

0

13

Cub Cadet 720-0278A

Foam Grip, .970 x 11.0

$22.99

$

In Stock, only 3 left!

0

14

Cub Cadet 720-0313

Grip, .1875 x 1.00

$19.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-0273

Battery Clamp, 5/16

$7.49

$

In Stock, only 1 left!

0

16

Cub Cadet 726-0317

Cable Tie, 8.5 LG

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

18

Cub Cadet 936-0117

Washer, Flat, .385 x .620 x .033

$7.49

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-3090

Washer, Flat, .260 x .720 x .060

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet 938-0958

Spacer, Shoulder, .50 x .190 x .360

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 747-1219A-0637

Clutch Bail

$32.99

$

In Stock, only 1 left!

0

23

Cub Cadet 784-0190

Handle Adjustment Crank

$24.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 784-0191

Hex Nut Retainer Bracket

$7.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 786-0120-0637

Tiller Depth Control

$66.99

$

In Stock, only 1 left!

0

26

Cub Cadet 786-0181-4021

Shaft Rod Lever

$22.99

$

In Stock, Qty 13

0

27

Cub Cadet 735-0127

Washer, Rubber, .33 ID x .125

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 686-0044B-4021

End Cover Assembly

$84.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0176

Hex Head Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3022

Hex Head Screw, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

33

Cub Cadet 710-04482

Hex Head Flange, 3/8-16 x .875

$4.49

$

In Stock, Qty 16

0

34

Cub Cadet 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 712-0421

Wing Nut, 5/16-18 W/ Bell Washer

$6.99

$

In Stock, Qty 20+

0

37

Cub Cadet 926-0106

Speed Nut Cap, 1/4 ROD
(Superseded to 726-0106)

$

$

Not available

38

Cub Cadet 736-0204

Washer, Flat, .344 x .62 x .033

$4.49

$

In Stock, Qty 7

0

39

Cub Cadet 938-0849

Screw, Hex, 5/16-18 x .75

$10.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 750-0885A

Spacer, .322 x .625 x 2.00

$11.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 786-0090A-4021

Side Shield

$36.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 786-0113A-4021

Rear Tine Shield

$90.99

$

In Stock, only 4 left!

0

44

Cub Cadet 786-0176-4021

RH Handle Mount Bracket

$20.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 786-0177-4021

LH Handle Mount Bracket

$20.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 786-0178A-4021

Tine Shield

$112.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 786-0179-0637

FRT Tine Shield Bracket

$49.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 786-0180-0637

FRT Tine Shield Spacer Bracket

$47.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 686-0109A

Shift Crank Assembly

$36.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 715-0120

Spiral Pin, 3/16 x 1.0

$10.99

$

In Stock, only 1 left!

0

52

Cub Cadet 784-0208D-4021

Shift Cover

$98.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 19

0

54

Cub Cadet 712-3054

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 742-0305A-0637

13" Articulating Tine

$20.99

$

In Stock, Qty 20+

0

56

Cub Cadet 938-0689

Shoulder Bolt

$8.99

$

In Stock, only 2 left!

0

57

Cub Cadet 936-0253

Bell Washer, .515" ID x 1.14" OD
(Superseded to 736-0253)

$

$

Not available

58

Cub Cadet 938-0688

Shoulder Bolt

$9.99

$

In Stock, Qty 15

0

59

Cub Cadet 784-0160-0637

Tine Adapter Assembly, 18"

$115.99

$

In Stock, only 3 left!

0

60

Cub Cadet 714-04043

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

61

Cub Cadet 936-0169

Lock Washer
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

62

Cub Cadet 784-0160-0637

Tine Adapter Assembly

$115.99

$

In Stock, only 3 left!

0

63

Cub Cadet 731-07556

Cap

$3.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 936-0208

Washer, Flat, .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

65

Cub Cadet 710-0376

Hex Head Screw, 5/16-18 x 1.00

$3.99

$

In Stock, only 4 left!

0
