RT-65 H (21AB455C710) - Cub Cadet Rear-Tine Tiller (2015) Engine Honda GC190LA-MHA2 Camshaft Parts Diagram

Rear-Tine Tiller

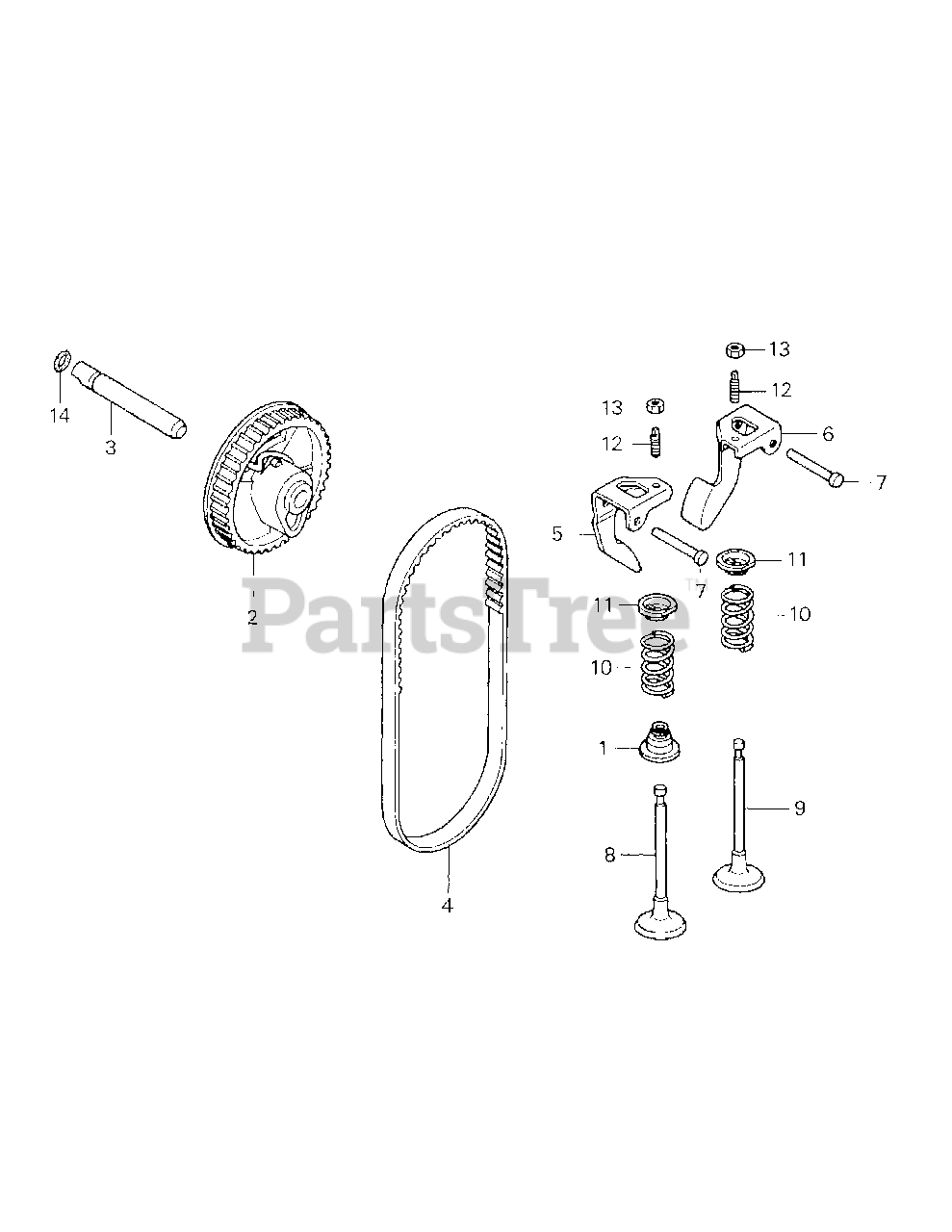

Engine Honda GC190LA-MHA2 Camshaft Parts Diagram

  • Title

1

Honda 12209-ZM0-003

Valve Stem Seal

$9.49

$

In Stock, Qty 6

0

2

Honda 14320-Z0Y-000

Cam Pulley
(Superseded to 14320-Z8D-000)

$8.49

$

Usually ships in 3-6 days

0

3

Honda 14324-ZL8-000

Cam Pulley Shaft

$6.49

$

In Stock, Qty 8

0

4

Honda 14400-Z0J-014

Timing Belt, 84HU& G-200
(Superseded to 14400-Z8B-003)

$10.99

$

In Stock, only 3 left!

0

5

Honda 14431-Z0J-000

Internal Valve Rocker Arm

$6.99

$

In Stock, Qty 14

0

6

Honda 14441-Z0J-000

External Valve Rocker Arm

$6.99

$

In Stock, Qty 17

0

7

Honda 14461-ZL8-000

Rocker Arm Shaft

$2.99

$

In Stock, only 2 left!

0

8

Honda 14711-Z0J-000

Internal Valve
(Superseded to 14711-ZL8-000)

$68.99

$

In Stock, only 4 left!

0

8

Honda 14711-Z0J-000

Internal Valve
(Superseded to 14711-ZL8-000)

$68.99

$

In Stock, only 4 left!

0

9

Honda 14721-ZL8-000

External Valve

$58.99

$

In Stock, Qty 9

0

10

Honda 14751-ZL8-000

Valve Spring

$0.99

$

In Stock, Qty 10

0

11

Honda 14771-Z0J-000

Internal Valve Spring Retainer

$10.99

$

In Stock, Qty 6

0

12

Honda 90012-333-000

Tappet Adjustable Screw

$3.99

$

In Stock, only 4 left!

0

13

Honda 90206-001-000

Tappett Adjustble Nut

$2.49

$

In Stock, only 4 left!

0

14

Honda 91301-ZM0-V31

O-Ring, 6.8 x 1.9

$3.49

$

In Stock, Qty 7

0
