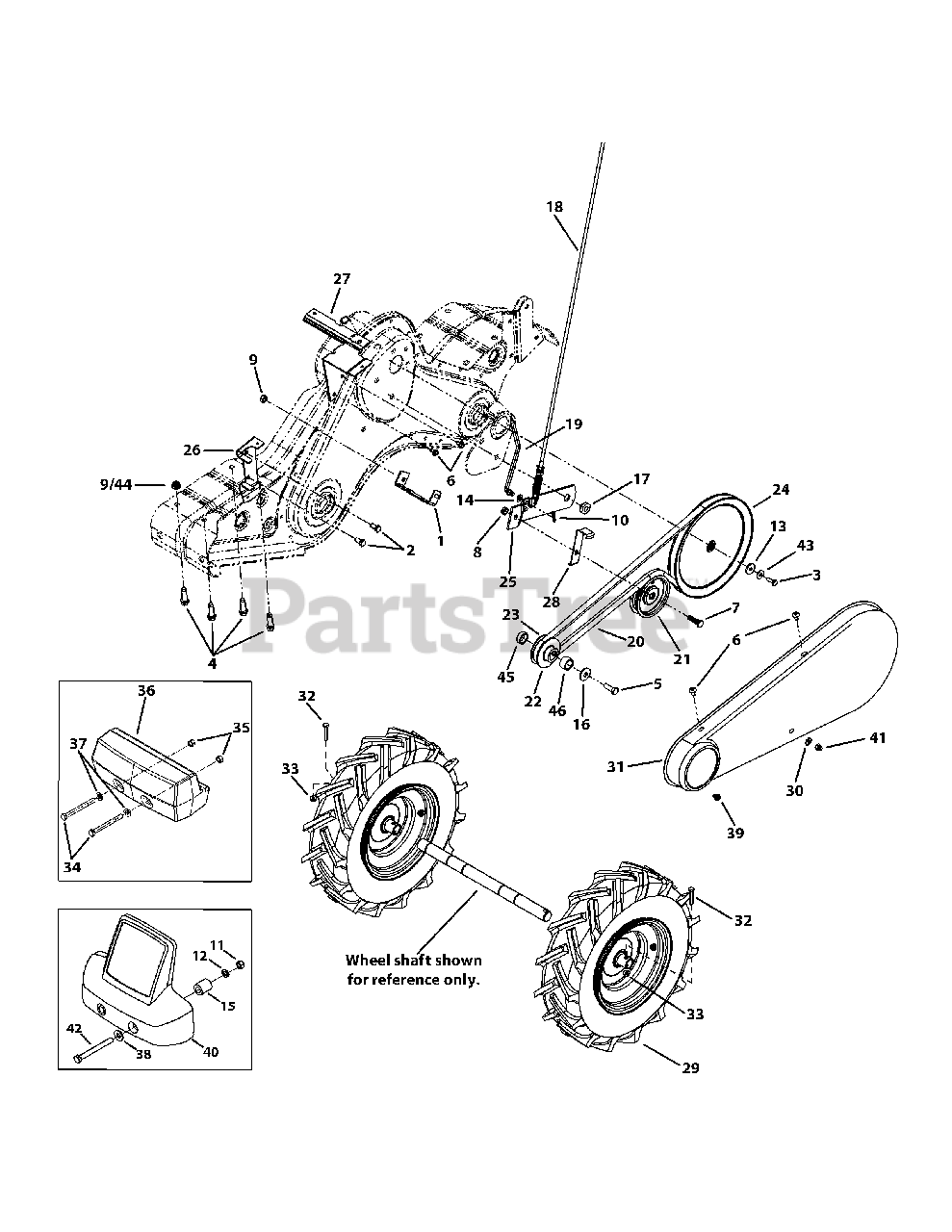

RT-65 H (21AB455C710) - Cub Cadet Rear-Tine Tiller (2015) Drive & Wheels Parts Diagram

Rear-Tine Tiller

Drive & Wheels Parts Diagram

  • Title

1

Cub Cadet 686-0111-0637

Belt Cover Bracket Assembly
(Superseded to 686-0111)

$39.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0170

Hex Bolt, 5/16-24 x .625

$6.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0513A

Hex Bolt, 1/4-28 x .625"

$4.99

$

In Stock, Qty 7

0

4

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.50" (Honda)

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet 710-1039

Hex Bolt, 3/8-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1652

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0266A

Lock Jam Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 912-3066

Hex Nut, 1/2-20

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 936-0921

Washer, Lock, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

13

Cub Cadet 936-0176

Flat Washer, .25 ID x .93 OD
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

14

Cub Cadet 936-0271

Spring Washer, .317 ID x .625 OD

$4.49

$

In Stock, Qty 10

0

15

Cub Cadet 750-0194

Hub, .636 ID x 1.00 OD x .94

$9.49

$

In Stock, only 4 left!

0

16

Cub Cadet 936-0452

Bell Washer, .396 ID x 1.14 OD
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

17

Cub Cadet 738-0876A

Shoulder Nut, 7/16-20

$10.99

$

In Stock, Qty 15

0

18

Cub Cadet 946-1117

Clutch Cable

$66.99

$

In Stock, only 1 left!

0

19

Cub Cadet 747-1159

Idler Pulley Rod

$26.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 954-0434

V-Belt

$61.99

$

In Stock, only 1 left!

0

21

Cub Cadet 756-0405

Flat Idler w/ Flange, 3.75 OD

$71.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 756-0971

Outer Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 756-0972

Inner Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 756-1162

Input Pulley

$90.99

$

In Stock, only 1 left!

0

25

Cub Cadet 786-0064A

Idler Bracket

$38.99

$

In Stock, only 1 left!

0

26

Cub Cadet 786-0185A-0637

Belt Keeper Bracket

$16.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 786-0187-0637

Shift Cover Bracket

$23.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 786-0193-0637

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 934-04365A

Wheel Assembly, 16.0 x 4.6 x 8

$186.99

$

In Stock, only 2 left!

0

30

Cub Cadet 936-3020

Flat Washer, .271 ID x .630 OD
(Superseded to 736-3020)

$

$

Not available

31

Cub Cadet 784-0158B-4021

Belt Cover

$95.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-05289

Hex Head Screw, 1/4-20

$5.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0382

Hex Bolt, 1/2-13 x 5.0

$12.99

$

In Stock, only 2 left!

0

35

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 723-0381

Counterweight, 40 lbs.

Note: If Equipped

$

$

Not available

37

Cub Cadet 936-0326

Flat Washer
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 936-0179

Washer, Flat, 1/2 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

39

Cub Cadet 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

40

Cub Cadet 731-1595

Counterweight

Note: If Equipped

$156.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 712-0392

Lock Nut

$6.99

$

In Stock, only 1 left!

0

42

Cub Cadet 710-0506

Hex Head Screw, 1/2-13 x 5.50

$10.99

$

In Stock, only 2 left!

0

43

Cub Cadet 736-0270

Bell Washer, .265 x .750 x .060

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet n/a

Spacer, .766 ID x 1.25 OD x .415 (Kohler)

Note: Not used on this model

$

$

Currently unavailable

46

Cub Cadet n/a

Spacer, 19.5 ID x 25.0 OD x 14.5 (Kohler)

Note: Not used on this model

$

$

Currently unavailable
