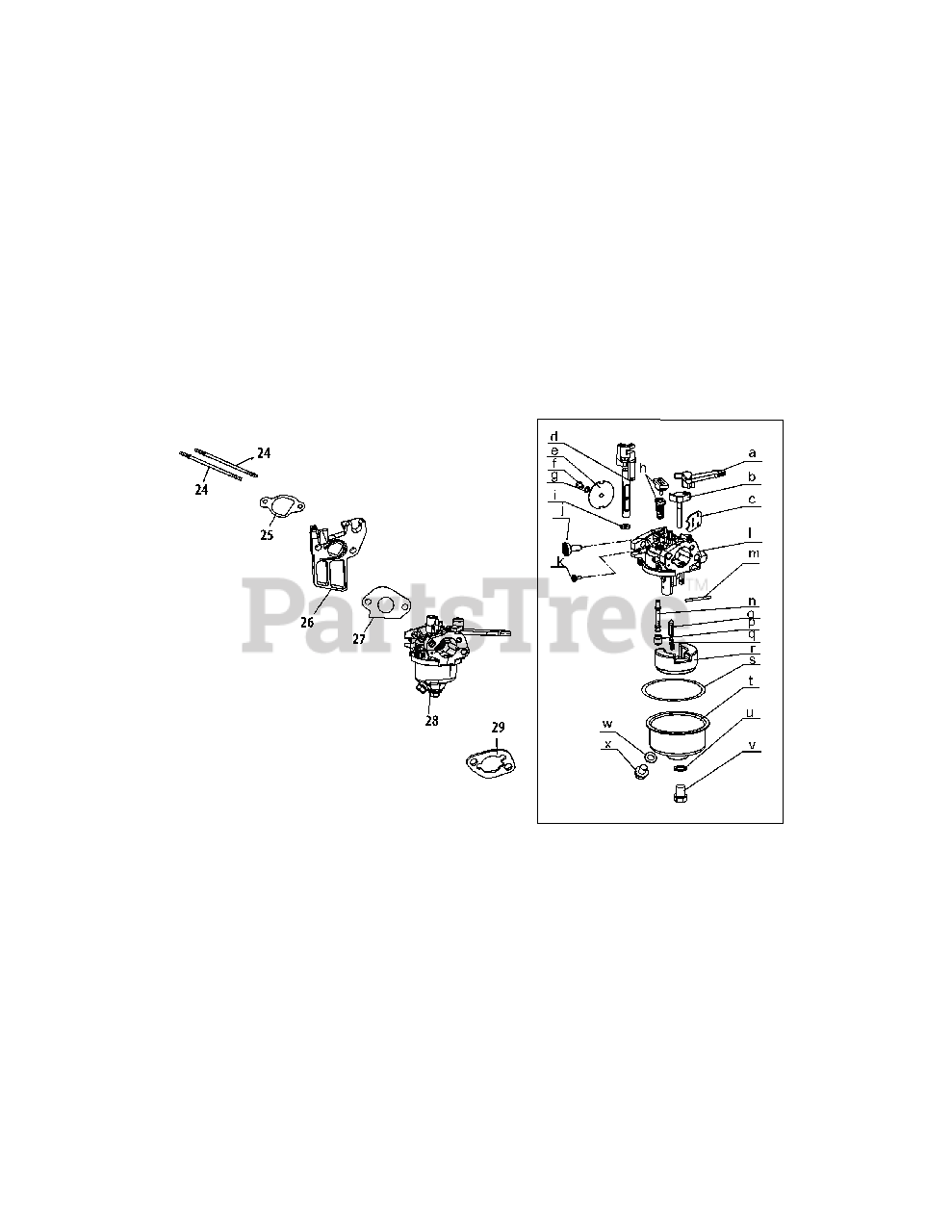

RT-65 ES (21AB45M6010) - Cub Cadet Rear-Tine Tiller (2013) 270-V0 Carburetor Assembly Parts Diagram

Rear-Tine Tiller

270-V0 Carburetor Assembly Parts Diagram

  • Title
24

Cub Cadet 710-05101

Carburetor Stud M6×110

$4.49

$

In Stock, Qty 6

0

25

Cub Cadet 951-11567

Carburetor Insulator Gskt
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

26

Cub Cadet 951-11568

Carburetor Insulator Plate
(Superseded to 751P11568A)

$3.49

$

In Stock, only 3 left!

0

27

Cub Cadet 951-11569

Carburetor Gasket
(Superseded to 951-11569A)

$5.99

$

In Stock, Qty 20+

0

28

Cub Cadet 951-10797

Carburetor Assembly
(Superseded to 951-12785)

$124.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 951-11571

Carburetor Gasket Plate

$5.99

$

In Stock, Qty 7

0

a

Cub Cadet N/A

Control Lever,Choke

$

$

Currently unavailable

b

Cub Cadet N/A

Choke Shaft

$

$

Currently unavailable

c

Cub Cadet N/A

Choke Plate

$

$

Currently unavailable

d

Cub Cadet N/A

Throttle Shaft

$

$

Currently unavailable

e

Cub Cadet N/A

Throttle Plate

$

$

Currently unavailable

f

Cub Cadet N/A

Screw M3×5

$

$

Currently unavailable

g

Cub Cadet N/A

Lock Washer

$

$

Currently unavailable

h

Cub Cadet N/A

Idle Jet Assembly

$

$

Currently unavailable

i

Cub Cadet N/A

Gasket, Throttle Plate

$

$

Currently unavailable

j

Cub Cadet N/A

Idle Speed Adjusting Screw

$

$

Currently unavailable

k

Cub Cadet N/A

Mixture Screw

$

$

Currently unavailable

l

Cub Cadet N/A

Carburetor Body

$

$

Currently unavailable

m

Cub Cadet N/A

Float Pin

$

$

Currently unavailable

n

Cub Cadet N/A

Emulsion Tube

$

$

Currently unavailable

o

Cub Cadet N/A

Needle Valve

$

$

Currently unavailable

p

Cub Cadet N/A

Main Jet

$

$

Currently unavailable

q

Cub Cadet N/A

Needle Valve Spring

$

$

Currently unavailable

r

$

$

Currently unavailable

s

Cub Cadet 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

t

Cub Cadet N/A

Fuel Bowl

$

$

Currently unavailable

u

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, only 1 left!

0

v

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

w

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

x

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 1 left!

0

Cub Cadet 951-10800A

Carburetor Kit - Major
(Superseded to 951-12783)

Note: (not shown) (Incl. A,H-J,M-S.U,W)

$58.99

$

In Stock, only 2 left!

0
