RT-65 ES (21AB45M6010) - Cub Cadet Rear-Tine Tiller (2012) Wheels & Drive RT65 Parts Diagram

Rear-Tine Tiller

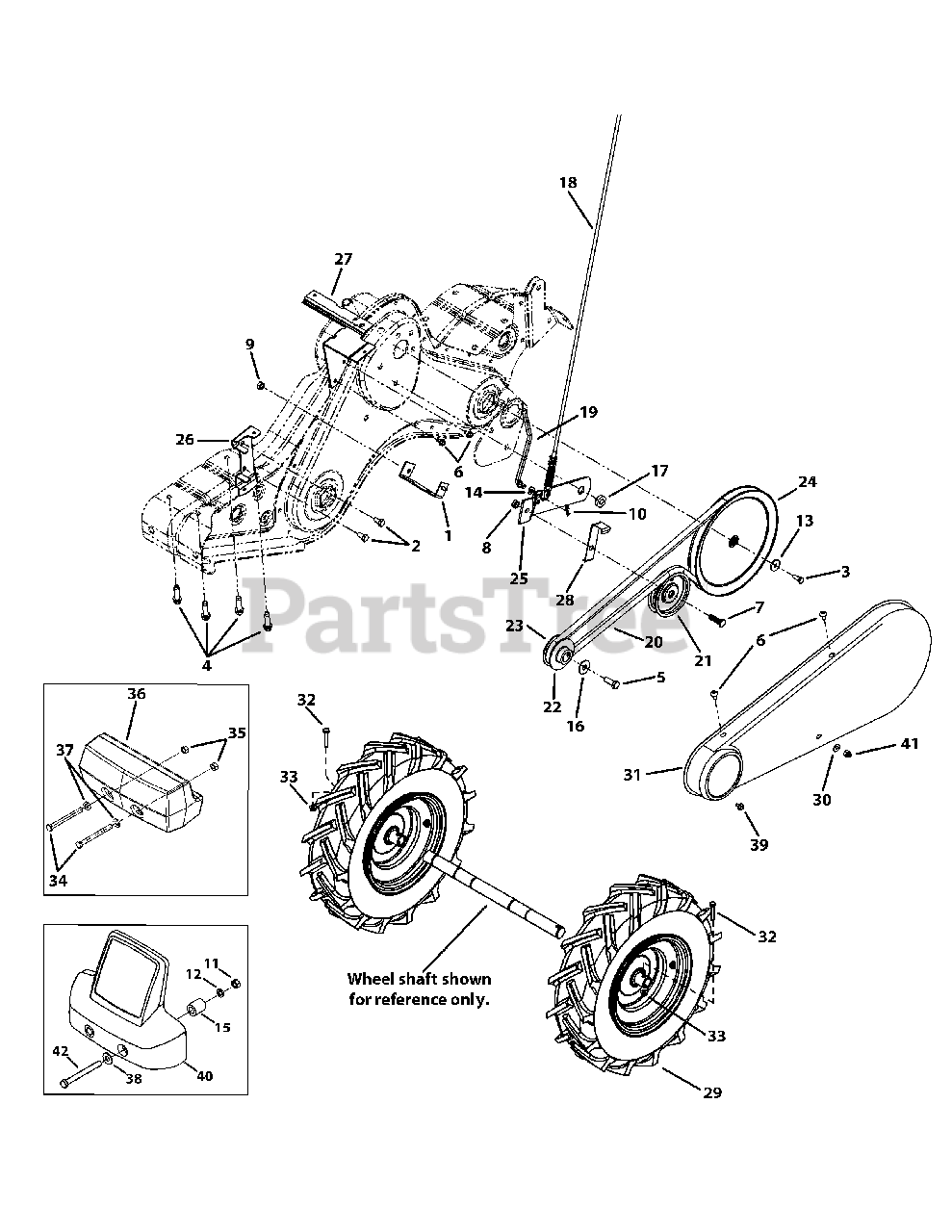

Wheels & Drive RT65 Parts Diagram

  • Title

1

Cub Cadet 686-0111-0637

Belt Cover Bracket Assembly
(Superseded to 686-0111)

$39.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0170

Hex Bolt, 5/16-24 x .625

$6.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0513

Hex Bolt, 1/4-28 x .75"
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

4

Cub Cadet 710-0520

Hex Washer Screw, 3/8-16 x 1.50"

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet 710-1039

Hex Bolt, 3/8-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1652

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0266A

Lock Jam Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 912-3066

Hex Nut, 1/2-20

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 936-0921

Washer, Lock, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

13

Cub Cadet 936-0176

Flat Washer, .25 ID x .93 OD
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

14

Cub Cadet 936-0271

Spring Washer, .317 ID x .625 OD

$4.49

$

In Stock, Qty 10

0

15

Cub Cadet 750-0194

Hub, .636 ID x 1.00 OD x .94

$9.49

$

In Stock, only 4 left!

0

16

Cub Cadet 936-0452

Bell Washer, .396 ID x 1.14 OD
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

17

Cub Cadet 738-0876A

Shoulder Nut, 7/16-20

$10.99

$

In Stock, Qty 15

0

18

Cub Cadet 946-1117

Clutch Cable

$66.99

$

In Stock, only 1 left!

0

19

Cub Cadet 747-1159

Idler Pulley Rod

$26.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 954-0434

V-Belt

$61.99

$

In Stock, only 1 left!

0

21

Cub Cadet 756-0405

Flat Idler w/ Flange, 3.75 OD

$71.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 756-0971

Outer Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 756-0972

Inner Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 756-1162

Input Pulley

$90.99

$

In Stock, only 1 left!

0

25

Cub Cadet 786-0064A

Idler Bracket

$38.99

$

In Stock, only 1 left!

0

26

Cub Cadet 786-0185A-0637

Belt Keeper Bracket

$16.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 786-0187-0637

Shift Cover Bracket

$23.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 786-0193-0637

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 934-04365A

Wheel Assembly, 16.0 x 4.6 x 8

$186.99

$

In Stock, only 2 left!

0

30

Cub Cadet 936-3020

Flat Washer, .271 ID x .630 OD
(Superseded to 736-3020)

$

$

Not available

31

Cub Cadet 784-0158A

Belt Cover
(Superseded to 784-0158B)

Variations

Cub Cadet 784-0158A-0638

USE 784-0158B-0638 COVER-BELT - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-0716

Belt Cover, Yellow - CUB YELLOW-99 (0716)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-4021

Belt Cover, Yellow - CUB YELLOW 2 (4021)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-0606

COVER-BELT - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-0640

COVER-BELT - CO-OP GREEN (0640)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-0650

COVER-BELT - RED METALLIC (0650)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-0662

COVER-BELT - OYSTER GRAY (0662)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-0665

COVER-BELT - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-0691

COVER-BELT - BLACK JACK (0691)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-0709

COVER-BELT - MASTERCRAFT GREEN (0709)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0158A-4015

COVER-BELT - FIRE RED (4015)

$95.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-0606

Hex Head Screw, 1/4-20

$5.49

$

In Stock, Qty 10

0

33

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0382

Hex Bolt, 1/2-13 x 5.0

$12.99

$

In Stock, only 2 left!

0

35

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 723-0381

Counterweight, 40 lbs.

Note: If Equipped

$

$

Not available

37

Cub Cadet 936-0326

Flat Washer
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 936-0179

Washer, Flat, 1/2 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

39

Cub Cadet 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

40

Cub Cadet 731-1595

Counterweight

Note: If Equipped

$156.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 712-0392

Lock Nut

$6.99

$

In Stock, only 1 left!

0

42

Cub Cadet 710-0506

Hex Head Screw, 1/2-13 x 5.50

$10.99

$

In Stock, only 2 left!

0
