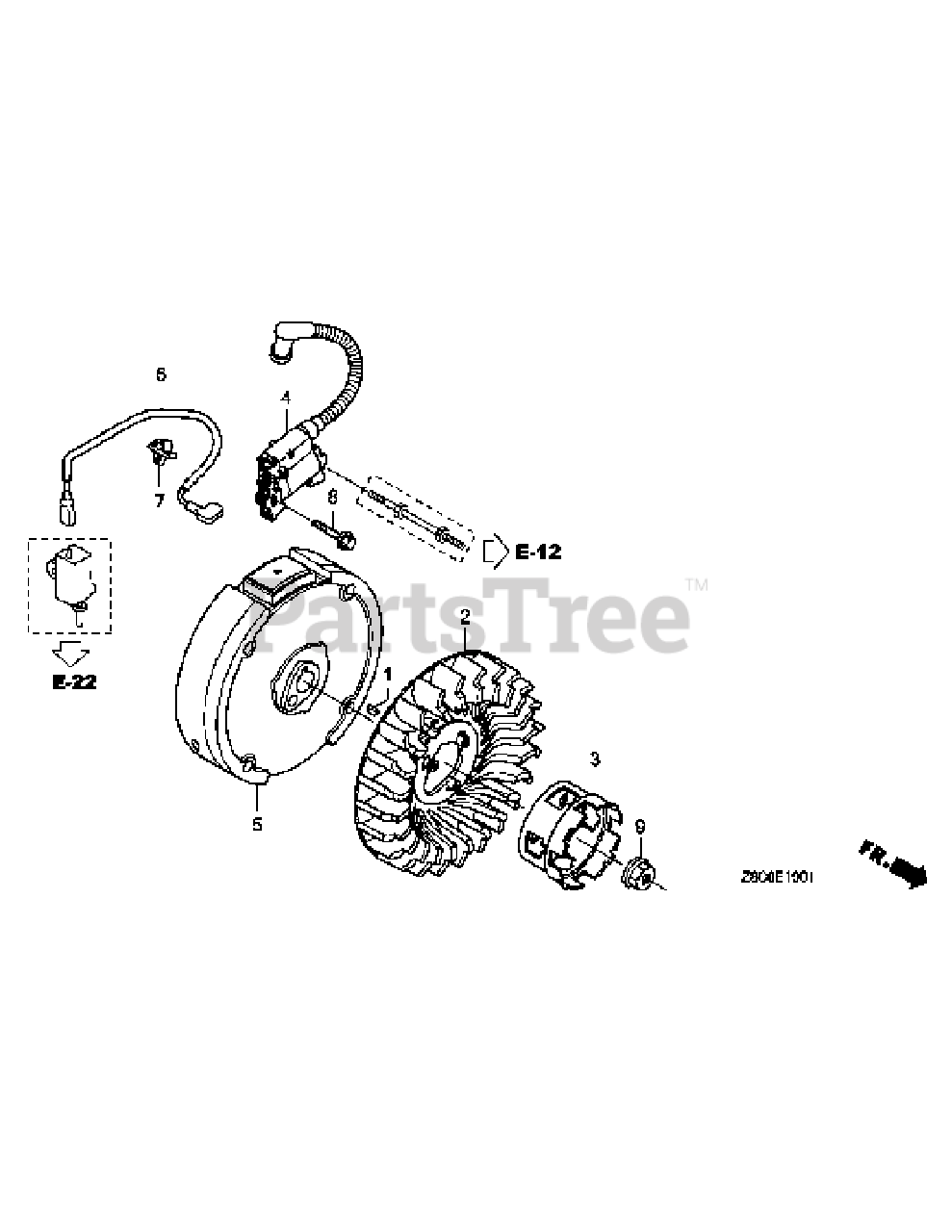

RT-65 (21AB455C710) - Cub Cadet Rear-Tine Tiller (2009) RT 65 GC190LA Flywheel (Cast Iron) Parts Diagram

Rear-Tine Tiller

RT 65 GC190LA Flywheel (Cast Iron) Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 1646264.

$5.49

$

In Stock, only 4 left!

0

2

Honda 19511-Z0J-900

FAN, COOLING

Note: Use from Engine SN 1646264.

$17.99

$

In Stock, only 2 left!

0

3

Honda 28451-Z0J-900

PULLEY, STARTER

Note: Use from Engine SN 1646264.

$5.99

$

In Stock, only 1 left!

0

4

Honda 30500-Z0J-004

COIL ASSY., IGNITION (TOYO)

Note: Use from Engine SN 1646264.

$18.99

$

Usually ships in 3-6 days

0

5

Honda 31110-Z0J-004

FLYWHEEL
(Superseded to 31110-Z0J-014)

Note: Use from Engine SN 1646264.

$66.99

$

Usually ships in 3-6 days

0

6

Honda 32195-Z0J-900

WIRE, STOP SWITCH

Note: Use from Engine SN 1646264.

$11.99

$

Usually ships in 3-6 days

0

7

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: Use from Engine SN 1646264.

$2.99

$

In Stock, only 1 left!

0

7

Honda 51125-Z0L-003

HOLDER, WIRE (FASTEX)

Note: Use from Engine SN 1646264.

$8.99

$

In Stock, only 1 left!

0

8

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

Note: Use from Engine SN 1646264.

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90201-Z0T-800

NUT, SPECIAL (14MM)

Note: Use from Engine SN 1646264.

$2.99

$

In Stock, only 1 left!

0
