RT-65 (21AB455C709) - Cub Cadet Rear-Tine Tiller (2009) RT 65 Gear Case Assembly Parts Diagram

Rear-Tine Tiller

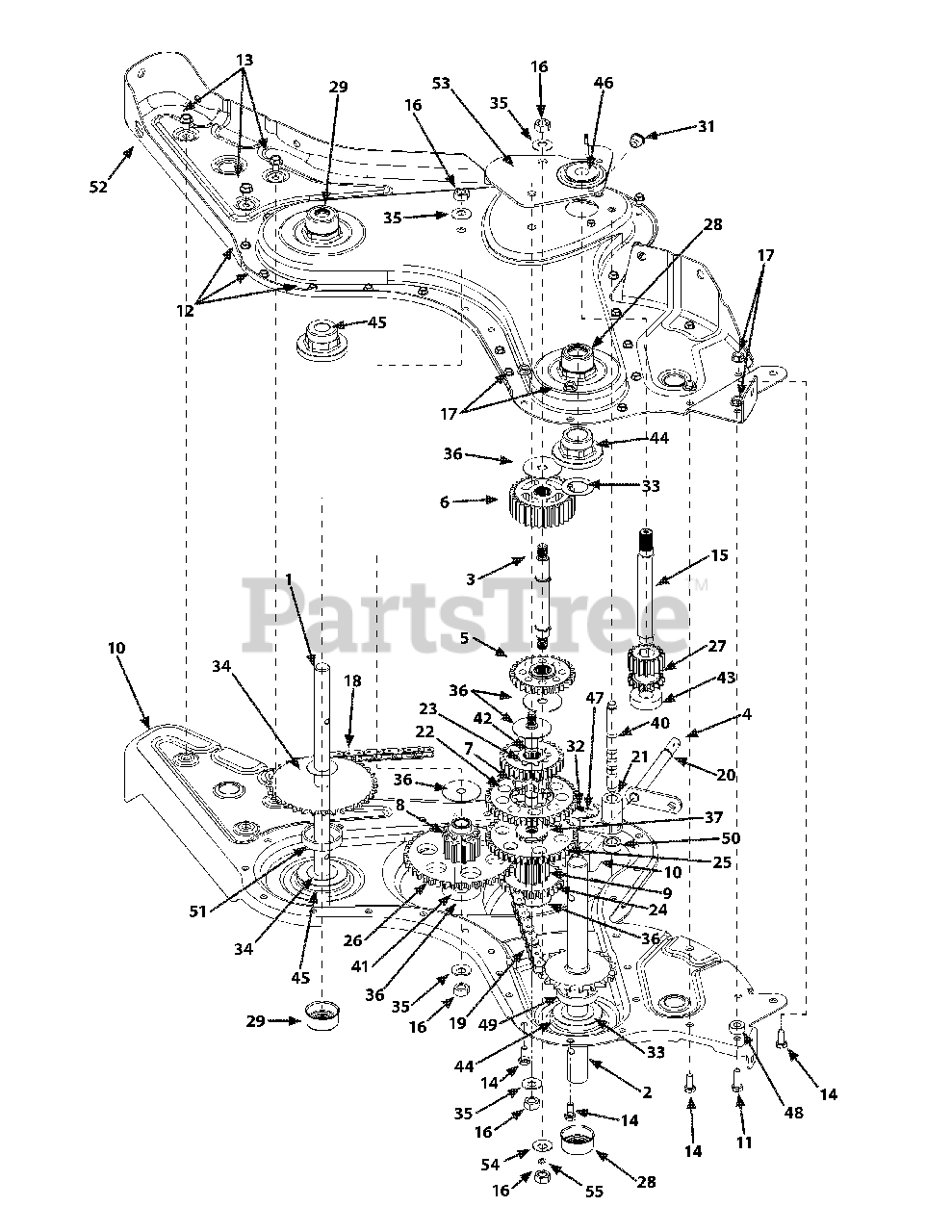

RT 65 Gear Case Assembly Parts Diagram

  • Title

1

Cub Cadet 611-04074

Wheel Shaft Assembly: 33T
(Superseded to 611-04074A)

$102.99

$

In Stock, only 1 left!

0

2

Cub Cadet 611-0021

Tine Shaft Assembly: 18T
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

3

Cub Cadet 611-0128

Jack Shaft Assembly

$55.99

$

In Stock, only 1 left!

0

4

Cub Cadet 611-0129

Input Shaft Assembly

$58.99

$

In Stock, only 3 left!

0

5

Cub Cadet 617-0058

Reverse Idler Gear Assembly: 30T
(Superseded to 617-0058A)

$80.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 617-0059

Tine Idler Gear Assembly: 30T
(Superseded to 917-0059B)

$139.99

$

In Stock, only 1 left!

0

7

Cub Cadet 617-0060

Tine Input Sprocket Assembly: 9T
(Superseded to 617-0060A)

$162.99

$

In Stock, only 4 left!

0

8

Cub Cadet 617-0061

Wheel Inp. Sprocket Assembly: 10T

$117.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 617-0062

Gear Assembly:11T
(Superseded to 617-0062A)

$124.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 686-0108-0637

R.H. Housing Assembly
(Superseded to 686-0108A-0637)

$268.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0376

Hex Bolt,5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Hex S-Tap Screw, 1/4- 20 x.5"

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0604A

Hex S-Tap Screw, 5/16-18x.625"

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3008

Hex Bolt, 5/16-18 x.75"

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-1349

Input Shaft
(Superseded to 711-1349B)

$51.99

$

In Stock, only 1 left!

0

16

Cub Cadet 712-0378

Hex Nut, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-3004A

Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 913-0367

#420 Chain,1/2 Pitch x 50 Links

$51.99

$

In Stock, only 2 left!

0

19

Cub Cadet 913-0484

#50 Chain, 5/8 Pitch x 54 Links

$74.99

$

In Stock, only 1 left!

0

20

Cub Cadet 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 717-0853

Shifting Fork
(Superseded to 717-0853A)

$83.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 717-1582

Spur Gear, 44T
(Superseded to 717-1582B)

$100.99

$

In Stock, only 1 left!

0

23

Cub Cadet 717-1583

Spur Gear, 30T

$53.99

$

In Stock, only 1 left!

0

24

Cub Cadet 717-1584

Spur Gear, 30T

$42.99

$

In Stock, only 1 left!

0

25

Cub Cadet 717-1585

Spur Gear, 44T

$84.99

$

In Stock, only 1 left!

0

26

Cub Cadet 717-1587

Spur Gear, 44T

$97.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 717-1594

Spur Gear, 16T

$198.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 921-0378

Seal 1.0 Shaft

$18.99

$

In Stock, only 2 left!

0

29

Cub Cadet 721-0379

Seal .75 Shaft

$18.99

$

In Stock, only 2 left!

0

31

Cub Cadet 726-0277

Taper Cap Ring

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 932-0496

Compression Spring, .50" Leg.

$4.99

$

In Stock, Qty 10

0

33

Cub Cadet 936-0163

Thrust Washer, 1.03" I.D. X. 1.62"
(Superseded to 736-0163)

$

$

Not available

34

Cub Cadet 936-0351

Fl-Washer, .76" I.D. x 1.5" O.D.
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0407

Bell-Washer, .45" I.D. x 1.0"

$3.99

$

In Stock, Qty 11

0

36

Cub Cadet 736-0518

Thrust Washer, .445 x 1.92 x .060

$10.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-3088

Fl-Washer, .635" I.D. x 1.59 O.D.

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 738-0645

Detent Shaft, 1/2" Dia.

$61.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 738-0648

Jack Shaft, .625 x 2.385

$51.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-1013

Jack Shaft, .625 x 5.0

$52.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 941-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

44

Cub Cadet 941-0420

Flange Bearing, 1.0 x 2.5 x 1.38
(Superseded to 941-0420B)

$38.99

$

In Stock, Qty 11

0

45

Cub Cadet 741-0421

Flange Bearing, .75 x 2.5 x 1.38

$

$

Not available

46

Cub Cadet 941-0563

Ball Bearing, .6692 x 5745 x .466

$36.99

$

In Stock, Qty 7

0

47

Cub Cadet 741-0862

Detent Ball, .250

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 750-0258

Spacer, .315

$11.99

$

In Stock, only 1 left!

0

49

Cub Cadet 950-0570

Spacer, 1.0 I.D x 2.0 O.D. x .440

$10.99

$

In Stock, Qty 6

0

50

Cub Cadet 750-0664

Spacer, .505 I.D. x .88 O.D. x .440

$6.99

$

In Stock, only 2 left!

0

51

Cub Cadet 950-0671

Spacer, .75 x 2.0 x .50

$11.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 786-0171-0637

L.H. Chain Case Assembly
(Superseded to 686-04129-0637)

$229.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 786-0238

Gear Positioner Bracket
(Superseded to 786-0238A)

$21.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 936-0226

Flat Washer, .474 x .879 x .064

$3.99

$

In Stock, only 2 left!

0

55

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

Cub Cadet 986-04074

Gear Case Assembly Complete
(Superseded to 986-04074E)

Note: (Not Shown)

$1708.99

$

Usually ships in 3-6 days

0
