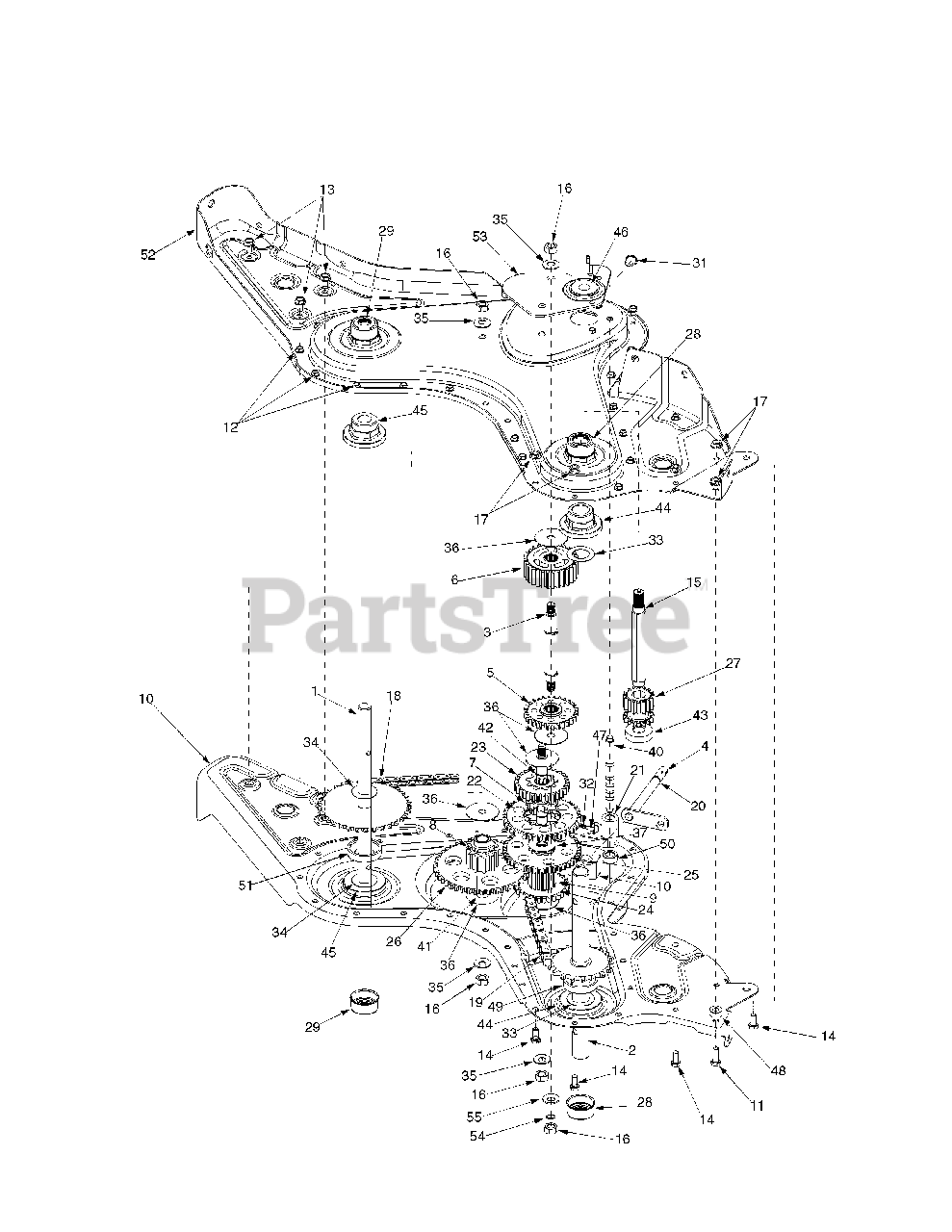

RT-65 (21AB454B710) - Cub Cadet Rear-Tine Tiller (2005) Gear Case Assembly Parts Diagram

Rear-Tine Tiller

Gear Case Assembly Parts Diagram

  • Title

1

Cub Cadet 611-0020

Wheel Shaft Ass’y 33T
(Superseded to 753-05575)

$587.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 611-0021

Tine Shaft Ass’y: 18T
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

3

Cub Cadet 611-0128

Jack Shaft Ass’y

$55.99

$

In Stock, only 1 left!

0

4

Cub Cadet 611-0129

Input Shaft Ass’y

$58.99

$

In Stock, only 3 left!

0

5

Cub Cadet 617-0058

Rev Idler Gear Ass’y: 30T
(Superseded to 617-0058A)

$80.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 617-0059

Tine Idler Gear Ass’y: 30T
(Superseded to 917-0059B)

$139.99

$

In Stock, only 1 left!

0

7

Cub Cadet 617-0060

Tine Input Sprocket Ass’y: 9T
(Superseded to 617-0060A)

$162.99

$

In Stock, only 4 left!

0

8

Cub Cadet 617-0061

Wheel Input Sprocket Ass’y: 10T

$117.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 617-0062

Gear Ass’y: 11T
(Superseded to 617-0062A)

$124.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 686-0108

R H Housing Ass’y
(Superseded to 686-0108A-0637)

Variations

Cub Cadet 686-0108-0637

Case C Housing Assembly - POWDER BLACK (0637)

$268.99

$

Usually ships in 3-6 days

0

$268.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1" Lg

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Hex S-Tap Scr 1/4- 20 x 5"

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0604A

Hex S-Tap Scr 5/16-18 x 625"

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3008

Hex Bolt 5/16-18 x 75"

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-1349

Input Shaft
(Superseded to 711-1349B)

$51.99

$

In Stock, only 1 left!

0

16

Cub Cadet 712-0378

Hex Nut 7/16-20

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-3004A

Flange Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 713-0367

#420 Chain 1/2 Pitch x 50 Links
(Superseded to 913-0367)

$51.99

$

In Stock, only 2 left!

0

19

Cub Cadet 713-0484

#50 Chain 5/8 Pitch x 54 Links
(Superseded to 913-0484)

$74.99

$

In Stock, only 1 left!

0

20

Cub Cadet 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 717-0853

Shifting Fork
(Superseded to 717-0853A)

$83.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 717-1582

Spur Gear 44T
(Superseded to 717-1582B)

$100.99

$

In Stock, only 1 left!

0

23

Cub Cadet 717-1583

Spur Gear 30T

$53.99

$

In Stock, only 1 left!

0

24

Cub Cadet 717-1584

Spur Gear 30T

$42.99

$

In Stock, only 1 left!

0

25

Cub Cadet 717-1585

Spur Gear 44T

$84.99

$

In Stock, only 1 left!

0

26

Cub Cadet 717-1587

Spur Gear 44T

$97.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 717-1594

Spur Gear 16T

$198.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 721-0378

Seal 1 0 Shaft
(Superseded to 921-0378)

$18.99

$

In Stock, only 2 left!

0

29

Cub Cadet 721-0379

Seal 75 Shaft

$18.99

$

In Stock, only 2 left!

0

31

Cub Cadet 726-0277

Taper Cap Ring

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 732-0496

Compression Spring 50" Leg
(Superseded to 932-0496)

$4.99

$

In Stock, Qty 10

0

33

Cub Cadet 736-0163

Thrust Wash 1 03" I D X 1 62"

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0351

Fl-Wash 76" I D x 1 5" O D

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0407

Bell-Wash 45" I D x 1 0"

$3.99

$

In Stock, Qty 11

0

36

Cub Cadet 736-0518

Thrust Wash 445 x 1 92 x 060

$10.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-3088

Fl-Wash 635" I D x 1 59 O D

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 738-0645

Detent Shaft 1/2" Dia

$61.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 738-0648

Jack Shaft 625 x 2 385

$51.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-1013

Jack Shaft 625 x 5 0

$52.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

44

Cub Cadet 741-0420

Flange Bearing 1 0 x 2 5 x 1 38
(Superseded to 941-0420B)

$38.99

$

In Stock, Qty 11

0

45

Cub Cadet 741-0421

Flange Bearing 75 x 2 5 x 1 38

$

$

Not available

46

Cub Cadet 741-0563

Ball Bearing 6692 x 5745 x 466
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

47

Cub Cadet 741-0862

Detent Ball 250

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 750-0258

Spacer 315

$11.99

$

In Stock, only 1 left!

0

49

Cub Cadet 750-0570

Spacer 1 0 I D x 2 0 O D x 440
(Superseded to 950-0570)

$10.99

$

In Stock, Qty 6

0

50

Cub Cadet 750-0664

Spacer 505 I D x 88 O D x 440

$6.99

$

In Stock, only 2 left!

0

51

Cub Cadet 750-0671

Spacer 75 x 2 0 x 50
(Superseded to 950-0671)

$11.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 786-0171

L H Chain Case Ass’y
(Superseded to 686-04129-0637)

Variations

Cub Cadet 786-0171-0637

Case C Housing Assembly - POWDER BLACK (0637)

$229.99

$

Usually ships in 3-6 days

0

$229.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 786-0238

Gear Positioner Bracket
(Superseded to 786-0238A)

$21.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-0171

Lock Washer 7/16 Reg Duty

$4.49

$

In Stock, Qty 5

0

55

Cub Cadet 736-0226

Flat Washer 474 x 879 x 064
(Superseded to 936-0226)

$3.99

$

In Stock, only 2 left!

0

Cub Cadet 686-0107

Gear Case Assembly Complete
(Superseded to 753-05331)

$

$

Not available
