RT-65 (21AB453J710) - Cub Cadet Rear-Tine Tiller (2006) General Assembly Parts Diagram

Rear-Tine Tiller

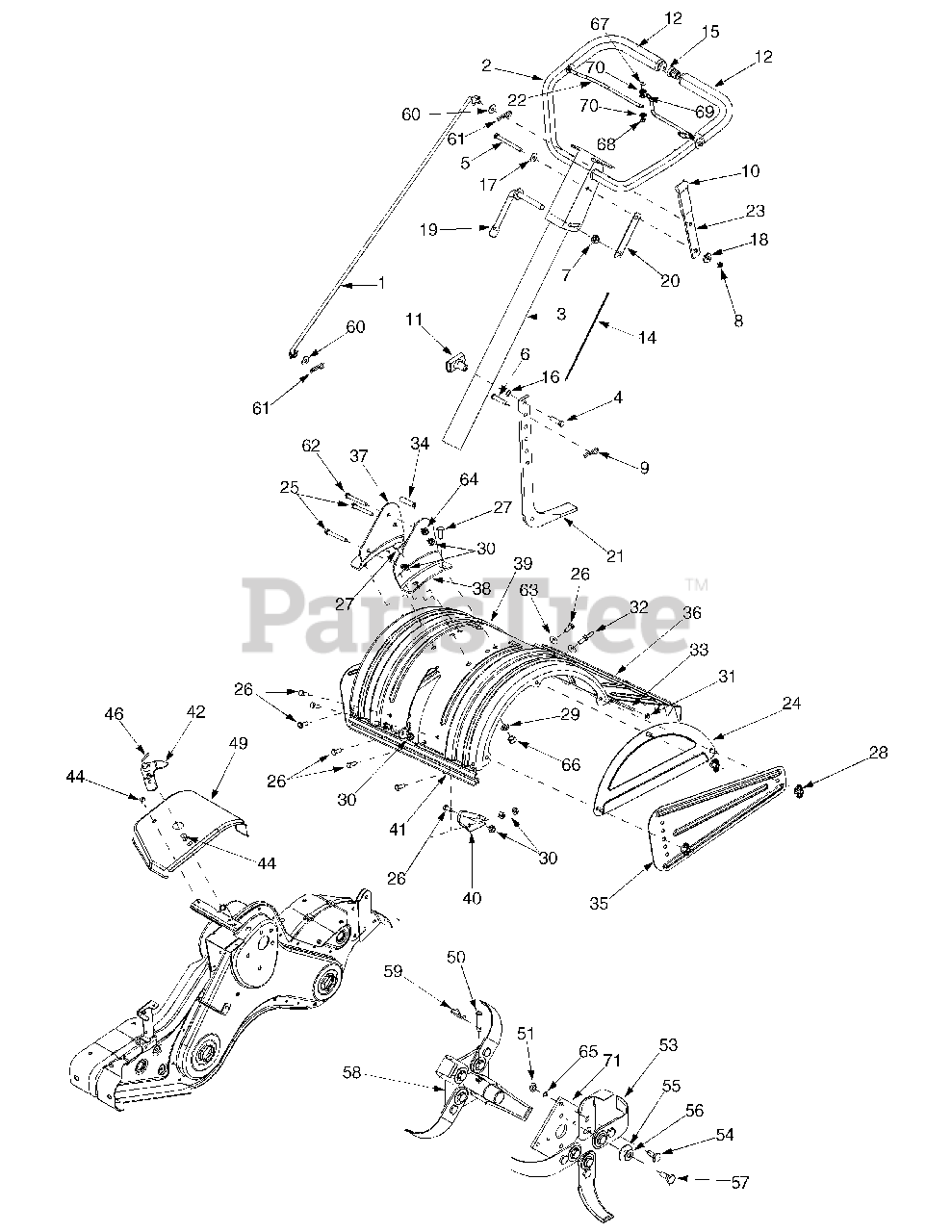

General Assembly Parts Diagram

  • Title

1

Cub Cadet 747-1152

Shift Rod

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 649-0041

Upper Handle

Variations

Cub Cadet 649-0041-4021

Upper Handle Assembly - CUB YELLOW 2 (4021)

$208.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0498

USE 649-0041-0716 HANDLE ASSY - OLD CUB YELLOW (0498)

$208.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0606

USE 649-0041A-0606 HANDLE ASM - MAJESTIC ORANGE (0606)

$208.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0638

HANDLE ASSY-UPPER - MTD/TROY-BILT RED (0638)

$208.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0640

USE 649-0041A-0665 HANDLE ASM - CO-OP GREEN (0640)

$181.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0648

USE 649-0041A-4042 HANDLE ASM - TECH GRAY (0648)

$181.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0650

USE 649-0041A-0650 HANDLE ASM - RED METALLIC (0650)

$181.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0662

USE 649-0041A-0662 HANDLE ASM - OYSTER GRAY (0662)

$181.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0665

USE 649-0041A-0665 HANDLE ASM - YARDMAN GREEN (0665)

$181.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0691

USE 649-0041A-0691 HANDLE ASM - BLACK JACK (0691)

$208.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0709

USE 649-0041A-0709 HANDLE ASM - MASTERCRAFT GREEN (0709)

$181.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0041-0716

HANDLE ASSY-UPPER - CUB YELLOW-99 (0716)

$208.99

$

Usually ships in 3-6 days

0

$181.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 649-0034

Lower Handle Assembly

Variations

Cub Cadet 649-0034-4021

HANDLE ASSY-LOWER - CUB YELLOW 2 (4021)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0498

USE 649-0034-0716 HANDLE ASSY - OLD CUB YELLOW (0498)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0606

HANDLE ASSY-LOWER - MAJESTIC ORANGE (0606)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0638

HANDLE ASSY-LOWER - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0640

HANDLE ASSY-LOWER - CO-OP GREEN (0640)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0648

HANDLE ASSY-LOWER - TECH GRAY (0648)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0650

HANDLE ASSY-LOWER - RED METALLIC (0650)

$97.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0662

HANDLE ASSY-LOWER - OYSTER GRAY (0662)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0665

HANDLE ASSY-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0691

HANDLE ASSY-LOWER - BLACK JACK (0691)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0709

HANDLE ASSY-LOWER - MASTERCRAFT GREEN (0709)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 649-0034-0716

HANDLE ASSY-LOWER - CUB YELLOW-99 (0716)

$90.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3005

Hex Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

5

Cub Cadet 710-3056

Hex Screw 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet 711-0415

Clevis Pin 3/8-1.62

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0379

Flange Lock Nut 3/8-24

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0147

Cotter Pin

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 720-0313

Grip

$19.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 720-0210A

T-Knob

$15.99

$

In Stock, only 2 left!

0

12

Cub Cadet 720-0278A

Foam Grip

$22.99

$

In Stock, only 3 left!

0

14

Cub Cadet 726-0317

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 735-0246

Plug
(Superseded to 735-0246A)

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0117

Flat Washer 3/8 ID x .620 OD
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0958

Shoulder Spacer
(Superseded to 938-0958)

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 784-0190

Handle Adjustment Crank

$24.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 784-0191

Hex Nut Retainer Bracket

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 786-0120

Depth Stake
(Superseded to 786-0120-0637)

Variations

Cub Cadet 786-0120-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

22

Cub Cadet 747-1219

Bail Clutch
(Superseded to 747-1219-0637)

Variations

Cub Cadet 747-1219-0637

Clutch Bail - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 786-0181

Shift Lever Rod

Variations

Cub Cadet 786-0181-0498

ROD-SHIFT LEVER - OLD CUB YELLOW (0498)

$22.99

$

In Stock, Qty 13

0

Cub Cadet 786-0181-4021

LEVER-SHIFT ROD - CUB YELLOW 2 (4021)

$22.99

$

In Stock, Qty 13

0

Cub Cadet 786-0181-0606

ROD-SHIFT LEVER - MAJESTIC ORANGE (0606)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0181-0638

ROD-SHIFT LEVER - MTD/TROY-BILT RED (0638)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0181-0640

ROD-SHIFT LEVER - CO-OP GREEN (0640)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0181-0650

ROD-SHIFT LEVER - RED METALLIC (0650)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0181-0662

ROD-SHIFT LEVER - OYSTER GRAY (0662)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0181-0665

ROD-SHIFT LEVER - YARDMAN GREEN (0665)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0181-0691

ROD-SHIFT LEVER - BLACK JACK (0691)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0181-0716

ROD-SHIFT LEVER - CUB YELLOW-99 (0716)

$22.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 686-0044A

Tine Shield Cover Assembly
(Superseded to 686-0044B)

Variations

Cub Cadet 686-0044A-0638

USE 686-0044B-0638 COVER ASM- - MTD/TROY-BILT RED (0638)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044A-0709

USE 686-0044B-0709 COVER ASM- - MASTERCRAFT GREEN (0709)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044A-0716

Cover Assembly, End Yellow - CUB YELLOW-99 (0716)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044A-0480

USE 686-0044B-0480 COVER ASM- - BRILLIANT GREEN (0480)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044A-0483

USE 686-0044B-0637 COVER ASM- - CHARCOAL GRAY (0483)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044A-0637

USE 686-0044B-0637 COVER ASM- - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044A-0648

USE 686-0044B-0648 COVER ASM- - TECH GRAY (0648)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044A-0650

USE 686-0044B-0650 COVER ASM- - RED METALLIC (0650)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044A-0662

USE 686-0044B-0662 COVER ASM- - OYSTER GRAY (0662)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 686-0044A-4015

USE 686-0044B-4015 COVER ASM- - FIRE RED (4015)

$67.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-0176

Hex Cap Screw 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

28

Cub Cadet 712-0421

Wing Nut

$6.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-04063

Flange Nut 5/16-18

$3.99

$

In Stock, Qty 5

0

31

Cub Cadet 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 738-0849

Hex Screw 5/16-18 x .75"
(Superseded to 938-0849)

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 747-0432

Rod

$13.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-0885A

Spacer .322 x .625 x 2.0

$11.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 786-0090

Shoulder
(Superseded to 786-0090A)

Variations

Cub Cadet 786-0090-0716

Side Shield - CUB YELLOW-99 (0716)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-0480

USE 786-0090A-0637 SHIELD-SID - BRILLIANT GREEN (0480)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-0483

USE 786-0090A-0637 SHIELD-SID - CHARCOAL GRAY (0483)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-0637

USE 786-0090A-0637 SHIELD-SID - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-0638

USE 786-0090A-0638 SHIELD-SID - MTD/TROY-BILT RED (0638)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-0648

USE 786-0090A-0648 SHIELD-SID - TECH GRAY (0648)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-0650

USE 786-0090A-0650 SHIELD-SID - RED METALLIC (0650)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-0662

USE 786-0090A-0662 SHIELD-SID - OYSTER GRAY (0662)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-0665

USE 786-0090A-0665 SHIELD-SID - YARDMAN GREEN (0665)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-4015

USE 786-0090A-4015 SHIELD-SID - FIRE RED (4015)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0090-0629

USE 786-0090A-0629 SHIELD-SID - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 786-0090-0709

SIDE SHIELD - MASTERCRAFT GREEN (0709)

$

$

Not available

$29.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 786-0113

Tine Shield Hinge Flap

Variations

Cub Cadet 786-0113-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet 786-0113-0638

USE 786-0113A-0638 SHIELD-REA - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0716

Rear Tine Shield - CUB YELLOW-99 (0716)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet 786-0113-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0650

USE 786-0113A-0650 SHIELD-REA - RED METALLIC (0650)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0665

USE 786-0113A-0665 SHIELD-REA - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0709

USE 786-0113A-0709 SHIELD-REA - MASTERCRAFT GREEN (0709)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-4015

USE 786-0113A-4015 SHIELD-REA - FIRE RED (4015)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0113-0606

REAR TINE SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 786-0113-0662

REAR TINE SHIELD - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 786-0176

RH Handle Bracket

Variations

Cub Cadet 786-0176-0498

USE 786-0176-0716 BRACKET-RH - OLD CUB YELLOW (0498)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0176-0606

BRACKET-RH HANDLE - MAJESTIC ORANGE (0606)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0176-0638

BRACKET-RH HANDLE - MTD/TROY-BILT RED (0638)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0176-0640

BRACKET-RH HANDLE - CO-OP GREEN (0640)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0176-0648

BRACKET-RH HANDLE - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0176-0650

BRACKET-RH HANDLE - RED METALLIC (0650)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0176-0665

BRACKET-RH HANDLE - YARDMAN GREEN (0665)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0176-0691

BRACKET-RH HANDLE - BLACK JACK (0691)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0176-0716

BRACKET-RH HANDLE - CUB YELLOW-99 (0716)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0176-4021

BRACKET-RH HANDLE - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 786-0177

LH Handle Bracket

Variations

Cub Cadet 786-0177-0498

BRACKET-LH HANDLE - OLD CUB YELLOW (0498)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0177-0606

BRACKET-LH HANDLE - MAJESTIC ORANGE (0606)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0177-0638

BRACKET-LH HANDLE - MTD/TROY-BILT RED (0638)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0177-0640

BRACKET-LH HANDLE - CO-OP GREEN (0640)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0177-0648

BRACKET-LH HANDLE - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0177-0650

BRACKET-LH HANDLE - RED METALLIC (0650)

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0177-0665

BRACKET-LH HANDLE - YARDMAN GREEN (0665)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0177-0691

BRACKET-LH HANDLE - BLACK JACK (0691)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0177-0716

BRACKET-LH HANDLE - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0177-4021

BRACKET-LH HANDLE - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 786-0178

Tine Shield
(Superseded to 786-0178A)

Variations

Cub Cadet 786-0178-0716

USE 786-0178A-4021 SHIELD-TIN - CUB YELLOW-99 (0716)

$112.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0178-0498

USE 786-0178A-4015 SHIELD-TIN - OLD CUB YELLOW (0498)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0178-0638

USE 786-0178A-0638 SHIELD-TIN - MTD/TROY-BILT RED (0638)

$112.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0178-0648

USE 786-0178A-0648 SHIELD-TIN - TECH GRAY (0648)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0178-0650

USE 786-0178A-0650 SHIELD-TIN - RED METALLIC (0650)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0178-0662

USE 786-0178A-0662 SHIELD-TIN - OYSTER GRAY (0662)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0178-4015

USE 786-0178A-4015 SHIELD-TIN - FIRE RED (4015)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0178-0606

TINE SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 786-0178-0665

TINE SHIELD - YARDMAN GREEN (0665)

$

$

Not available

$90.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 786-0179

Tine Shield Bracket
(Superseded to 786-0179-0637)

Variations

Cub Cadet 786-0179-0637

Tine Shield Bracket - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 786-0180

Shoulder Spacer Bracket
(Superseded to 786-0180-0637)

Variations

Cub Cadet 786-0180-0637

Shoulder Spacer Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 686-0109

Shift Crank Assembly
(Superseded to 686-0109A)

$36.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-1017

Screw 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

46

Cub Cadet 715-0120

Spiral Pin 3/16 x 1.0

$10.99

$

In Stock, only 1 left!

0

49

Cub Cadet 784-0208C

Shift Cover

Variations

Cub Cadet 784-0208C-0498

COVER-S - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0208C-0606

COVER-SHIFT - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 784-0208C-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0208C-0640

COVER-SHIFT - CO-OP GREEN (0640)

$

$

Not available

Cub Cadet 784-0208C-0650

COVER-SHIFT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-0208C-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0208C-0665

COVER-SHIFT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-0208C-0691

COVER SHIFT - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-0208C-0716

COVER-SHIFT - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-0208C-4015

COVER-SHIFT - FIRE RED (4015)

$

$

Not available

Cub Cadet 784-0208C-4021

COVER SHIFT - CUB YELLOW 2 (4021)

$

$

Not available

$

$

50

Cub Cadet 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-3054

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 742-0305

13" Articulating Tine
(Superseded to 742-0305A-0637)

Variations

Cub Cadet 742-0305-0637

Articulating Tine, Black - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 20+

0

$20.99

$

In Stock, Qty 20+

0

54

Cub Cadet 738-0689

Shoulder Bolt
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0

55

Cub Cadet 736-0208

Flat Washer .51" ID x 1.50" OD

$4.49

$

In Stock, Qty 9

0

56

Cub Cadet 736-0253

Bell Washer .515" ID x 1.14" OD

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 738-0688

Shoulder Bolt
(Superseded to 938-0688)

$9.99

$

In Stock, Qty 15

0

58

Cub Cadet 784-0160

Tine Adapter Assembly 18"
(Superseded to 784-0160-0637)

Variations

Cub Cadet 784-0160-0637

Tine Adapter Assembly, Black - POWDER BLACK (0637)

$115.99

$

In Stock, only 3 left!

0

$115.99

$

In Stock, only 3 left!

0

59

Cub Cadet 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

60

Cub Cadet 735-0127

Rubber Washer

$6.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 710-3022

Hex Screw 3/8-16 x 2.75"

$4.99

$

In Stock, Qty 7

0

63

Cub Cadet 736-0204

Flat Washer

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 712-04065

Flange Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

65

Cub Cadet 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 710-0946

Truss Screw 1/4-20 x .65

$3.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

69

Cub Cadet 726-0273

Battery Hose Clamp 5/16

$7.49

$

In Stock, only 1 left!

0

70

Cub Cadet 736-3090

Flat Washer .260 ID x .720 OD

$6.99

$

In Stock, Qty 11

0

71

Cub Cadet 784-0161

Tine Adapter Plate
(Superseded to 784-0161-0637)

Variations

Cub Cadet 784-0161-0637

Tine Adapter Plate - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0
