RT-65 (21A-458B100) - Cub Cadet Rear-Tine Tiller Engine (2000) Flywheel, Starter & Gaskets (Model RT65) Parts Diagram

Rear-Tine Tiller Engine

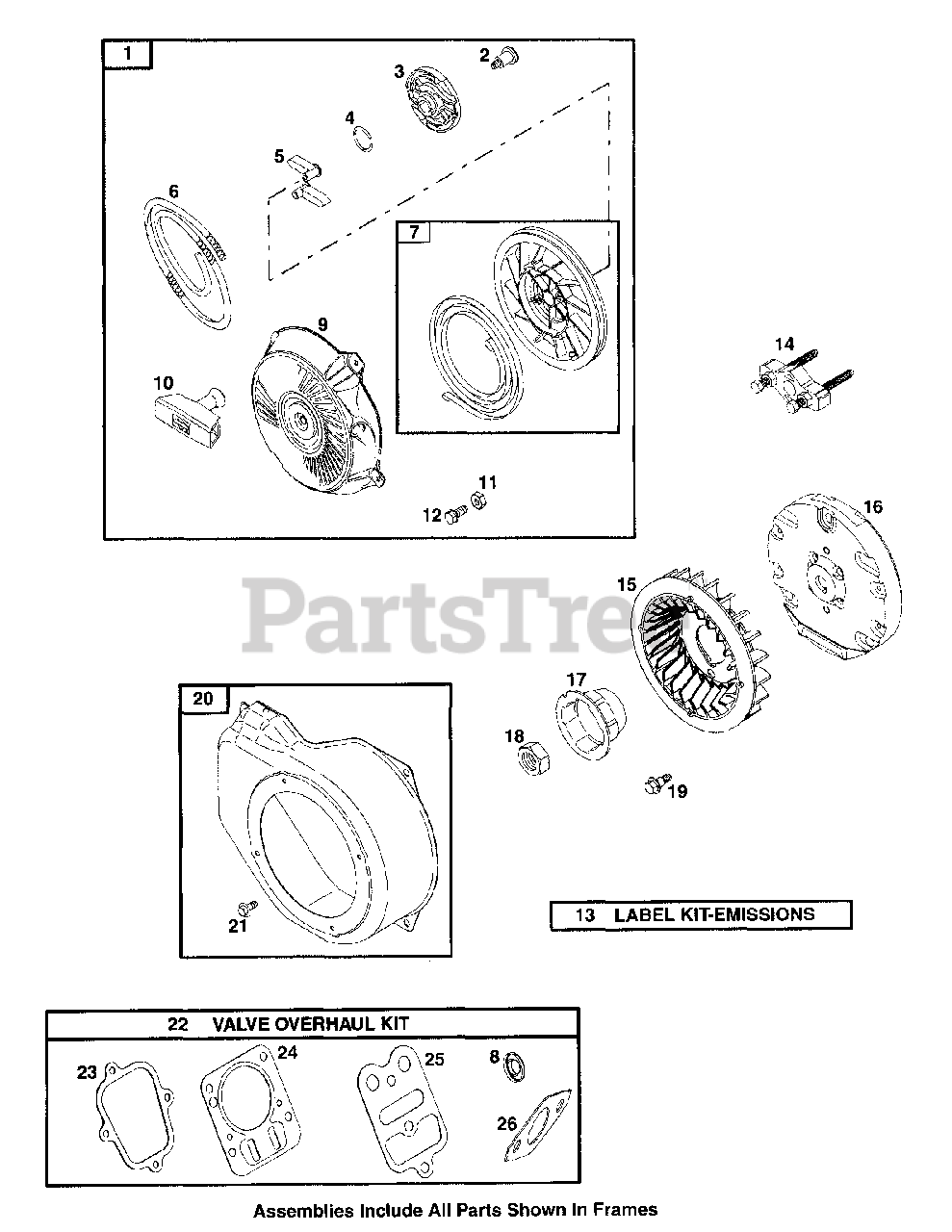

Flywheel, Starter & Gaskets (Model RT65) Parts Diagram

  • Title
1

Cub Cadet BS-692696

Starter-Rewind

$

$

Not available

2

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, Qty 6

0

3

Cub Cadet BS-692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet BS-281505

Pawl-Ratchet
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 13

0

6

Cub Cadet BS-669894

Rope-Starter

$

$

Currently unavailable

7

Cub Cadet BS-498144

Pulley/Spring Assembly

$19.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-498592

Seal-Valve
(Superseded to BS-692044)

$

$

Not available

9

Cub Cadet BS-691422

Rewind Starter Housing

$45.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-691951

Starter Rope Grip

$

$

Currently unavailable

11

Cub Cadet BS-94908

Nut (Rewind Starter)
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-94904

Screw (Rewind Starter)
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-693875

Emissions Label

$3.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

15

Cub Cadet BS-692592

Fan-Flywheel
(Superseded to BS-555778)

$14.99

$

Usually ships in 2-12 days

0

16

$

$

Not available

17

Cub Cadet BS-225457

Cup-Flywheel
(Superseded to BS-591302)

$11.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-94877

Nut (Flywheel)
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 12

0

19

Cub Cadet BS-692590

Screw (Flywheel)

$3.99

$

In Stock, only 1 left!

0

20

Cub Cadet BS-693621

Housing-Blower
(Superseded to BS-699598)

$90.99

$

In Stock, only 4 left!

0

21

Cub Cadet BS-692608

Screw (Blower Housing)

$3.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-690034

Kit-Valve Overhaul

$

$

Not available

23

Cub Cadet BS-273241

Gasket-Rocker Cover
(Superseded to BS-691890)

$7.99

$

In Stock, Qty 5

0

24

Cub Cadet BS-273489

Cylinder Head Gasket
(Superseded to BS-697230)

$9.99

$

In Stock, Qty 6

0

25

Cub Cadet BS-691892

Cylinder Head Plate Gasket
(Superseded to BS-694088)

$8.49

$

In Stock, Qty 16

0

26

Cub Cadet BS-692555

Gasket-Intake

Note: (2 Required)

$3.99

$

In Stock, Qty 11

0
