RT-65 (21A-458B100) - Cub Cadet Rear-Tine Tiller Engine (2000) Carburetor, Air Filter & Gasket (Model RT65) Parts Diagram

Rear-Tine Tiller Engine

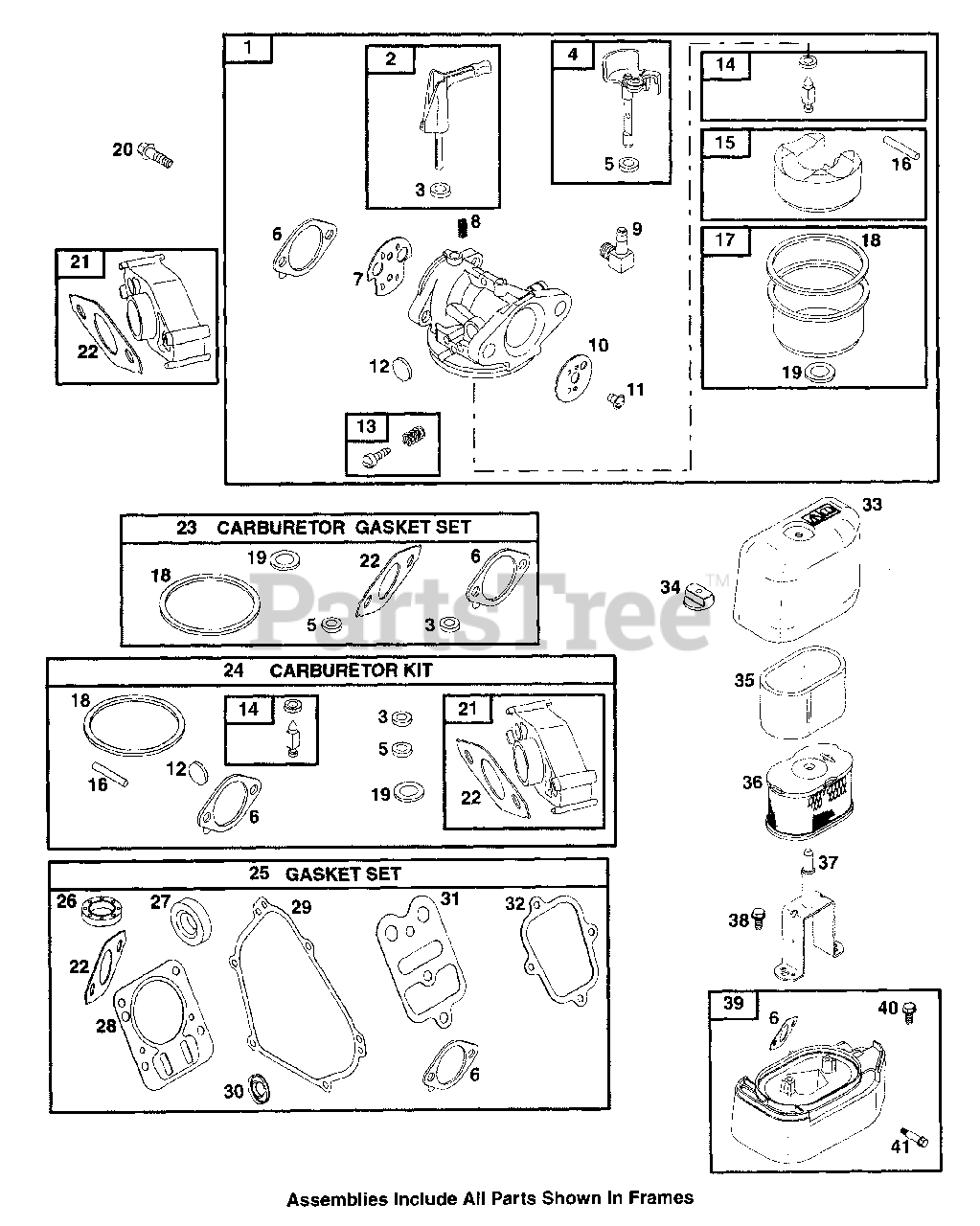

Carburetor, Air Filter & Gasket (Model RT65) Parts Diagram

  • Title

1

Cub Cadet BS-693518

Carburetor
(Superseded to BS-591925)

$

$

Not available

2

Cub Cadet BS-690023

Shaft-Choke

$28.99

$

In Stock, Qty 9

0

3

Cub Cadet BS-693867

Washer (Choke Shaft Seal)

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-693412

Shaft-Throttle

$

$

Currently unavailable

5

Cub Cadet BS-691321

Washer (Throttle Shaft)

$4.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-693458

Gasket-Air Cleaner

$5.99

$

In Stock, Qty 6

0

7

Cub Cadet BS-692567

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-690572

Spring-Detent (Choke)
(Superseded to BS-590931)

$5.49

$

In Stock, Qty 11

0

9

Cub Cadet BS-493496

Connector-Hose
(Superseded to BS-692317)

$6.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-94098

Screw (Throttle Valve)
(Superseded to BS-691636)

$3.99

$

In Stock, only 4 left!

0

12

Cub Cadet BS-223472

Plug-Welch
(Superseded to BS-691739)

Note: (Sold in Kit Only)

$4.49

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-398185

Kit-Idle Speed

$7.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-398188

Valve-Needle

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet BS-691242

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

17

Cub Cadet BS-493640

Bowl-Float
(Superseded to BS-796611)

$

$

Not available

18

Cub Cadet BS-493640

Gasket-Float Bowl
(Superseded to BS-796611)

Note: (Sold in Kit Only)

$

$

Not available

19

Washer-Seal

Note: (Sold in Kit Only)

$

$

Not available

20

Cub Cadet BS-692568

Screw (Carburetor)

$3.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-693749

Spacer-Carburetor
(Superseded to BS-795643)

$13.99

$

In Stock, Qty 8

0

22

Cub Cadet BS-692555

Gasket-Intake

Note: (2 Required)

$3.99

$

In Stock, Qty 15

0

23

Cub Cadet BS-690033

Gasket Set-Carburetor

$

$

Not available

24

Cub Cadet BS-690032

Carburetor Kit

$

$

Not available

25

Cub Cadet BS-690031

Gasket Set

$

$

Not available

26

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

27

Cub Cadet BS-692550

Seal-Oil

$8.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-692554

Cylinder Head Gasket
(Superseded to BS-697230)

$9.99

$

In Stock, Qty 5

0

29

Cub Cadet BS-692549

Gasket-Crankcase
(Superseded to BS-699485)

$8.99

$

In Stock, Qty 15

0

30

Cub Cadet BS-498592

Seal-Valve
(Superseded to BS-692044)

$

$

Not available

31

Cub Cadet BS-273346

Gasket-Plate
(Superseded to BS-694088)

$8.49

$

In Stock, Qty 16

0

32

Cub Cadet BS-691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 6

0

33

Cub Cadet BS-693460

Cover-Air Cleaner

$24.99

$

In Stock, only 1 left!

0

34

Cub Cadet BS-493903

Knob-Air Cleaner
(Superseded to BS-691668)

$5.49

$

In Stock, only 1 left!

0

35

Cub Cadet BS-273356

Filter-Air (Pre-Filter)
(Superseded to BS-273356S)

$5.49

$

In Stock, only 4 left!

0

36

Cub Cadet BS-690610

Filter A/C Cartridge
(Superseded to BS-697029)

$13.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-693462

Air Cleaner Bracket

$8.49

$

Usually ships in 2-12 days

0

38

Cub Cadet BS-693598

Screw (Air Cleaner Bracket)
(Superseded to BS-698304)

$3.49

$

In Stock, only 1 left!

0

39

Cub Cadet BS-693459

Base-Air Cleaner

$

$

Not available

40

Cub Cadet BS-94929

Screw (Air Cleaner Base)
(Superseded to BS-691693)

$3.99

$

In Stock, Qty 8

0

41

Cub Cadet BS-690349

Screw (Air Cleaner Base)

$6.99

$

In Stock, only 2 left!

0
