RT 600 - Toro Riding Trencher Traction Unit (2012) TRENCHER FRAME ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

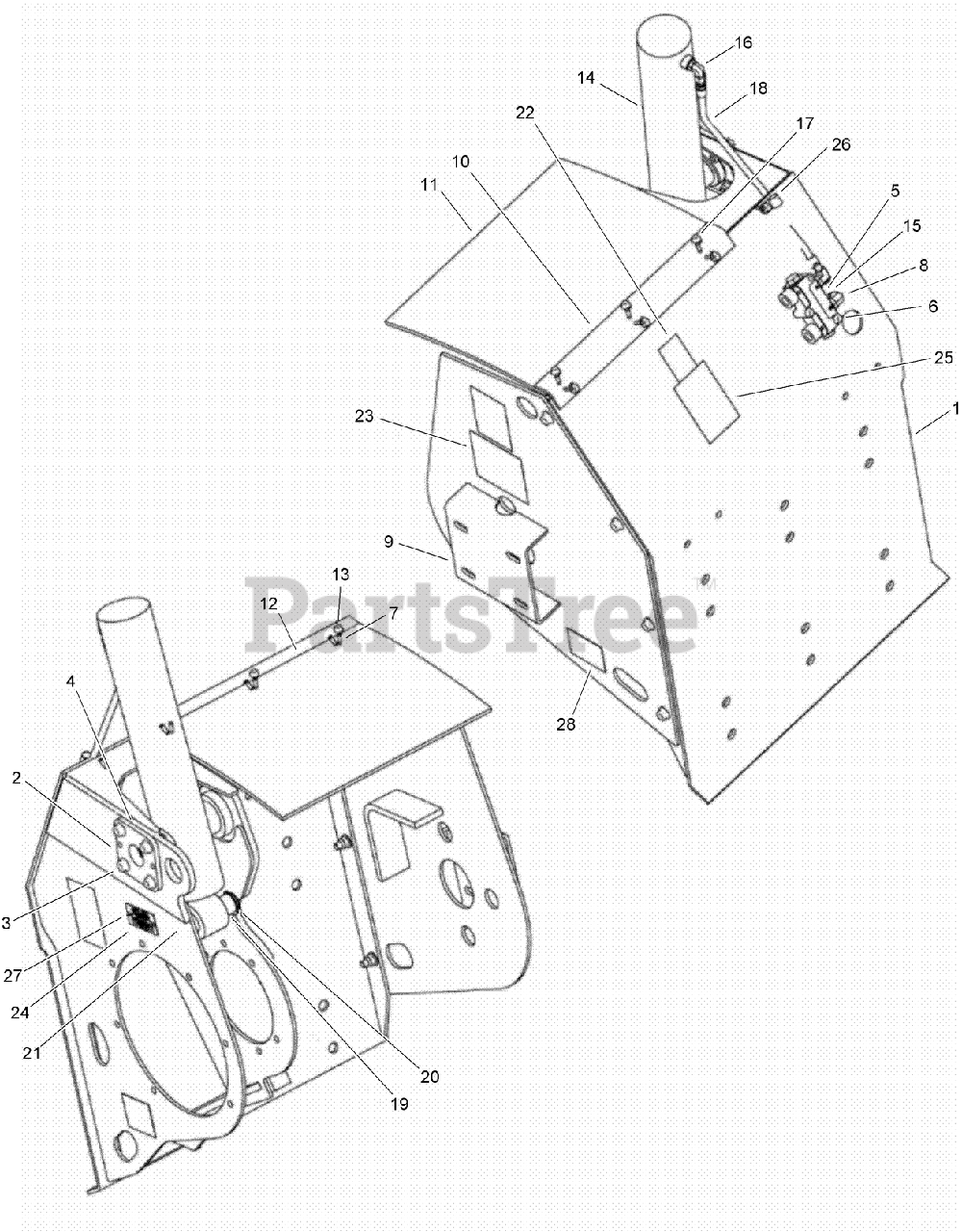

TRENCHER FRAME ASSEMBLY Parts Diagram

  • Title

Toro AU125985

ASM-Trencher Frame

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125987

WELDMENT-Trencher Frame

$

$

Currently unavailable

2

Toro AU123494A1

PIVOT BLOCK ASM

$

$

Not available

3

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0

4

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

5

Toro AUH672547

HYD LOCKOUT VALVE ASM

$1215.99

$

Usually ships in 3-6 days

0

6

Toro AU100323

SCREW-FLANGE

$2.49

$

Usually ships in 3-6 days

0

7

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

9

Toro AU125986

WELDMENT-Bearing Support Plate

$

$

Currently unavailable

10

Toro AU117207A1

ANGLE-Dirt Deflector

$101.99

$

Usually ships in 3-6 days

0

11

Toro AU117206A1

DEFLECTOR-DIRT

$155.99

$

Usually ships in 3-6 days

0

12

Toro AU117205A1

STRIP-Dirt Deflector

$27.99

$

Usually ships in 3-6 days

0

13

Toro AU100398

SCREW, METRIC FLANGE FULL - M8 x 25

$2.49

$

Usually ships in 3-6 days

0

14

Toro AU127214

CYLINDER-BOOM LIFT

$2923.99

$

Usually ships in 3-6 days

0

15

Toro AUD081836

HOSE-Hydraulic

$

$

Currently unavailable

16

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

17

Toro AU218-5057

CONNECTOR-Str Thd 3/8, 37FL-ORB 3/8

$4.49

$

Usually ships in 3-6 days

0

18

Toro AU109641A1

HOSE-Hydraulic

$69.99

$

Usually ships in 3-6 days

0

19

Toro AU221253A1

PIN-PIVOT

$236.99

$

Usually ships in 3-6 days

0

20

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0

21

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0

22

Toro AU110578

DECAL-Warning, Call Before Digging

$16.99

$

Usually ships in 3-6 days

0

23

Toro AU115196

DECAL-Planetary Oil / Lube Lever

$

$

Not available

24

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

25

Toro AU419471A1

DECAL-Danger, Trencher Entanglement Hazard

$37.99

$

Usually ships in 3-6 days

0

26

Toro AU515-23159

CLAMP

$1.49

$

Usually ships in 3-6 days

0

27

Toro AU104193

TACK-FASTENER, STEEL

$2.49

$

Usually ships in 3-6 days

0

28

Toro AU139728A1

DECAL-Tie Down

$1.49

$

Usually ships in 3-6 days

0
