RT 600 - Toro Riding Trencher Traction Unit (2012) TRENCHER DRIVE OFFSET TRENCHER Parts Diagram

Riding Trencher Traction Unit

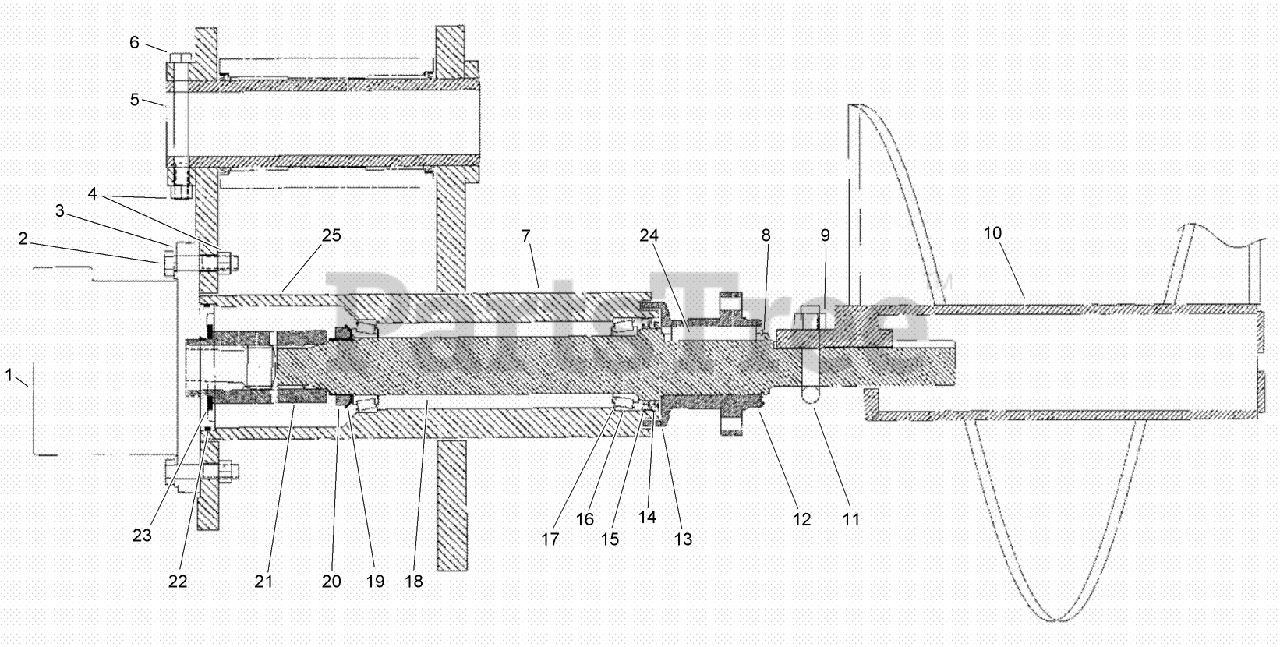

TRENCHER DRIVE OFFSET TRENCHER Parts Diagram

  • Title

Toro AU121418A1

DRIVE-Trencher

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU106240

MOTOR-Trencher

$

$

Not available

2

Toro AU426-836

BOLT-Hex Hd 0.500 x 2.25 GR8 ZND
(Superseded to 60-9870)

$18.99

$

Usually ships in 3-6 days

0

3

$2.49

$

Usually ships in 3-6 days

0

4

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU121474A1

PIN-Pivot

$

$

Currently unavailable

6

Toro AU426-876

BOLT-Hex Hd 1/2 x 4-3/4 GR8

$

$

Currently unavailable

7

Toro AU121467A1

HOUSING-Trencher Drive

$

$

Currently unavailable

8

Toro AU100-11212

RING-Retainer

$

$

Not available

9

Toro AU232-41110

NUT-LOCK, HEX

$1.49

$

Usually ships in 3-6 days

0

10

$

$

Currently unavailable

11

Toro AUH170241

U-BOLT-Auger Retaining

$36.99

$

Usually ships in 3-6 days

0

12

Toro AU123490A2

HUB-Sprocket

$

$

Not available

13

Toro AUL113522

SEAL-Urethane Excluder

$

$

Currently unavailable

14

Toro AU122443A1

HOUSING-Seal

$

$

Currently unavailable

15

Toro AU118155A1

SEAL-Oil

$

$

Currently unavailable

16

Toro AUR32216

CUP-Bearing

$

$

Not available

17

Toro AUD63653

CONE-Bearing

$

$

Currently unavailable

18

Toro AU221523A1

SHAFT-Trencher Drive

$

$

Currently unavailable

19

Toro AU55-1010

WASHER-Bearing Nut

$

$

Currently unavailable

20

Toro AU54-1010

NUT-Bearing

$

$

Currently unavailable

21

Toro AU121216A2

COUPLER-Trencher Drive

$

$

Not available

22

Toro AU238-5243

O-RING-Motor Seal

$

$

Currently unavailable

23

Toro AUH150169

WASHER-Thrust

$

$

Not available

24

Toro AU123506A1

KEY-Chainline Drive, 1/2 x 3

$

$

Currently unavailable

25

Toro AU353-780

PLUG-7/8-14 Cap

$

$

Currently unavailable
